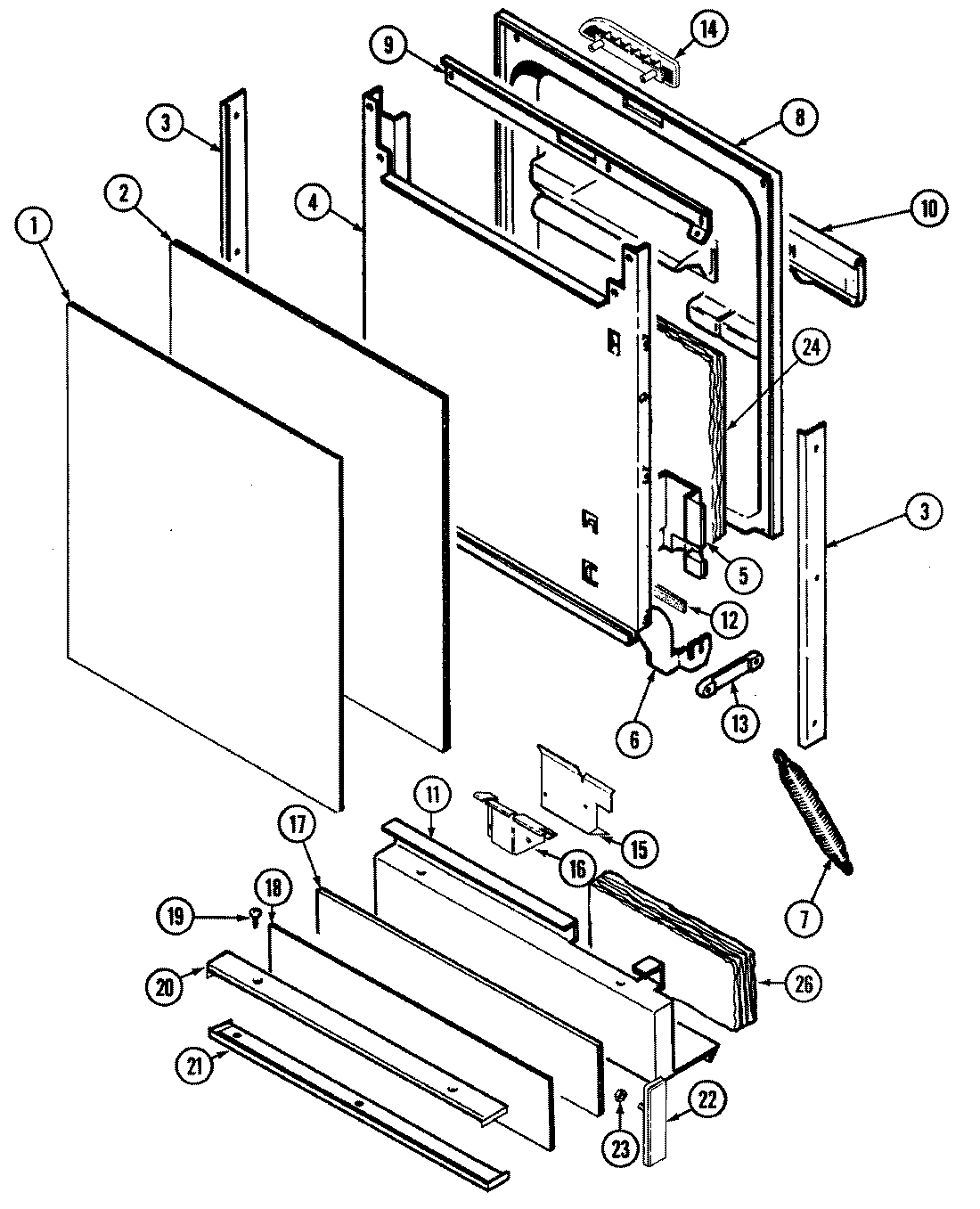

| NI | MAY Y912836 |
| 1 | MAY Y913223 |
| 2 | MAY Y913184 |
| 3 | MAY 99001350 |
| 3 | MAY 912905 |
| 3 | MAY Y913157 |
| 4 | MAY 904029 |
| 5 | SCREW, No.8X1/2 HEX WASHER HEAD |
| 5 | MAY 912883 |
| 6 | MAY 903071 |
| 6 | MAY 903070 |
| 6 | MAY 99001075 |
| 7 | WP912652 Whirlpool Dishwasher Spring |
| 8 | MAY Y912918 |
| 9 | MAY Y913178 |
| 9 | MAY Y913093 |
| 10 | MAY 903483 |
| 11 | MAY 912636 |
| 12 | WPW10117748 Whirlpool Dishwasher Insulation Pad |
| 13 | WP912653 Whirlpool Dishwasher Door Spring Link |
| 14 | WPY912620 Whirlpool Dishwasher Screw |
| 14 | MAY Y912910 |
| 15 | MAY 912641 |
| 16 | WP6-912366 Whirlpool Dishwasher Screw |
| 16 | MAY 912642 |
| 17 | MAY 912525 |
| 18 | MAY Y913164 |
| 18 | MAY 913112 |
| 18 | MAY Y913222 |
| 19 | MAY Y913163 |
| 19 | MAY 912365 |
| 20 | MAY 912929 |
| 21 | MAY 912928 |
| 22 | MAY 99001363 |
| 22 | MAY 913058 |
| 23 | MAY 214872 |
| 24 | MAY Y912669 |
| 26 | MAY Y912810 |
| 26 | MAY Y912809 |
| 26 | WP3390631 Whirlpool Screw |
| 26 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
