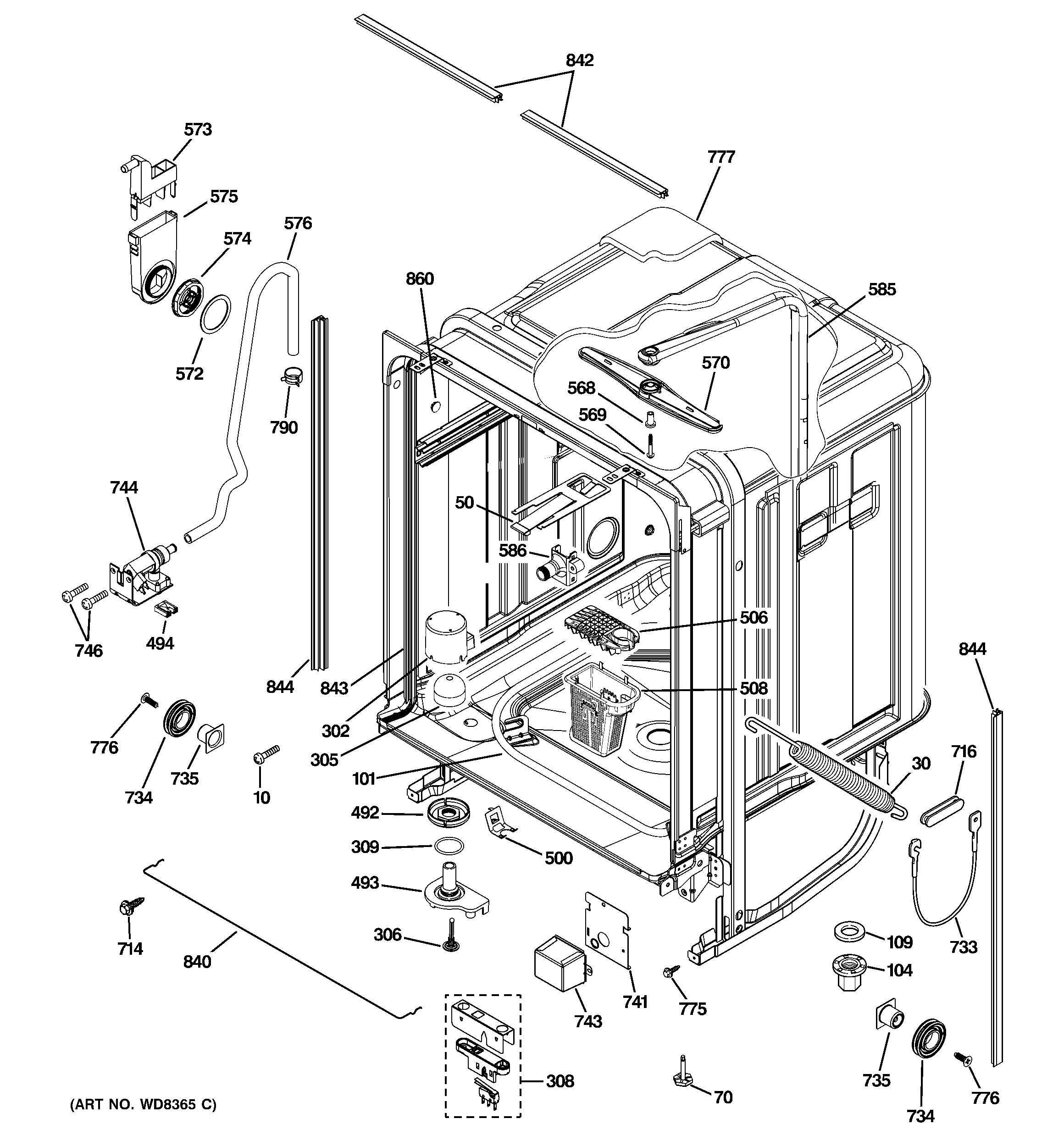

GDWF100R10BB BODY PARTS

GDWF100R10BB BODY PARTS

Written by

in

GDWF100R10BB BODY PARTS

Products

PositionProduct
10WR01X10065 GE Screw
30SPRING DOOR
50WD13X10018 GE Dishwasher Latch Keeper Assembly
70WD2X320 GE Dishwasher Leveling Leg
101GEN WD05X10010
104WD01X10214 GE Dishwasher Nut Tower Heater Assembly
109GEN WD01X10094
302WD12X10119 GE Dishwasher Dome Float
305WD12X10047 GE Dishwasher Float
306WD12X10048 GE Dishwasher Float Stem Assembly
308GEN WD21X10168
309WD01X10264 GE Flood Switch Seal
492GEN WD12X10135
493GEN WD12X10183
494WD21X10355 GE Dishwasher Water Valve Housing Special
500WD01X10425 GE Dishwasher TCO Bracket
506WD12X10400 GE Dishwasher Inlet Cover
508WD22X10077 GE Dishwasher Sump and Cover Filter Assembly
568WD01X10410 GE Dishwasher Spray Arm Bearing Assembly
569WD02X10109 GE Dishwasher 8-32 HXW Stainless Steel Screw
570GEN WD22X10069
572GEN WD08X10044
573WD12X10129 GE Dishwasher Water Inlet Cover
574GEN WD01X10220
575WD49X25081 GE Dishwasher Fill Funnel Service Kit
576WD24X10024 GE Dishwasher Hose
585GEN WD12X10113
714WD02X10160 GE Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
733CABLE ASM
734PULLEY HINGE
735WD01X10218 GE Dishwasher Cup Hinge
741WD12X10124 GE Bracket Junction Box
743WD12X448 GE Dishwasher Junction Box
744WD15X10014 GE Dishwasher Water Inlet Fill Valve
746WD2X248 GE Dishwasher Screw
775WD2X5166 GE Dishwasher Screw
776WD02X10159 GE Dishwasher Screw 10-32 C HX 7/16
777GEN WD01X10294
790WH1X2036 GE UNIX Clamp
840GEN WD03X10020
842WD08X10054 GE Dishwasher Trim Gasket
843WD08X10032 GE Dishwasher Tub Seal Gasket
844WD08X10055 GE Dishwasher Trim Gasket
860GEN WD01X10223
