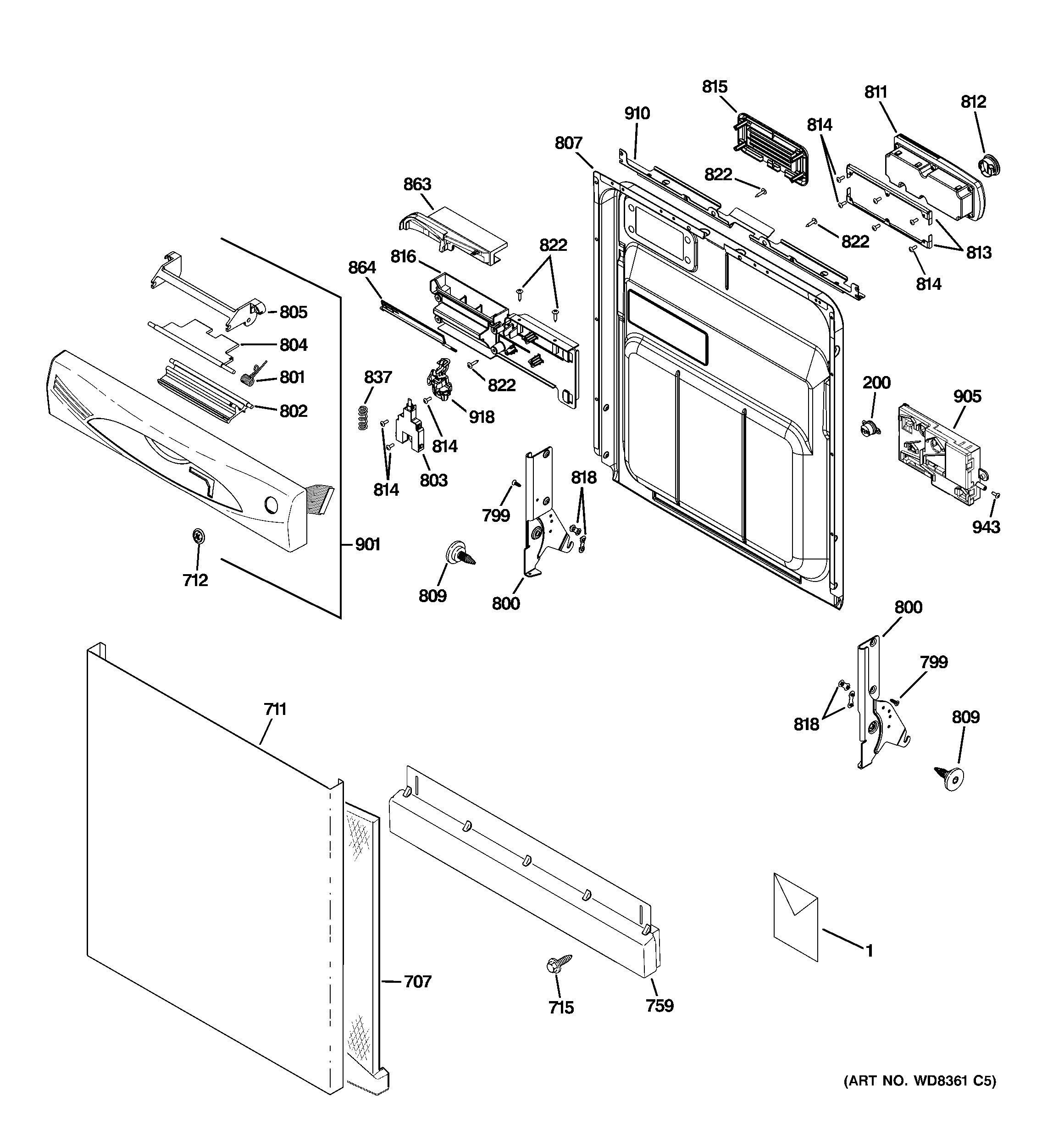

GDWF100V50BB ESCUTCHEON & DOOR ASSEMBLY

GDWF100V50BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWF100V50BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55078
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30284
1GEN 31-30638
200WD01X10420 GE Dishwasher Thermostat Service Kit
707GEN WD01X10407
711DOOR ASM OUTER BB
711GEN WD31X10108
712GEN WD34X11692
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759GEN WD27X10168
759WD27X10177 GE Dishwasher Toe Kick Assembly
799SCR 10-24 TAP RNP 1/2
800GEN WD14X10040
800GEN WD14X10041
801WR02X10585 SPRING RECES
802GEN WD13X10007
802GEN WD13X10010
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807WD31X10042 GE Dishwasher Inner Door Assembly
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816VENT BRACKET ASM
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
837WD03X10026 GE Dishwasher Spring Plunger
863GEN WD12X10306
864WD12X10044 GE Dishwasher Flapper Vent
864WD12X10067 GE Dishwasher Flapper Vent
901GEN WD34X11695
901GEN WD34X11696
905GEN WD21X10440
910GEN WD34X11639
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
