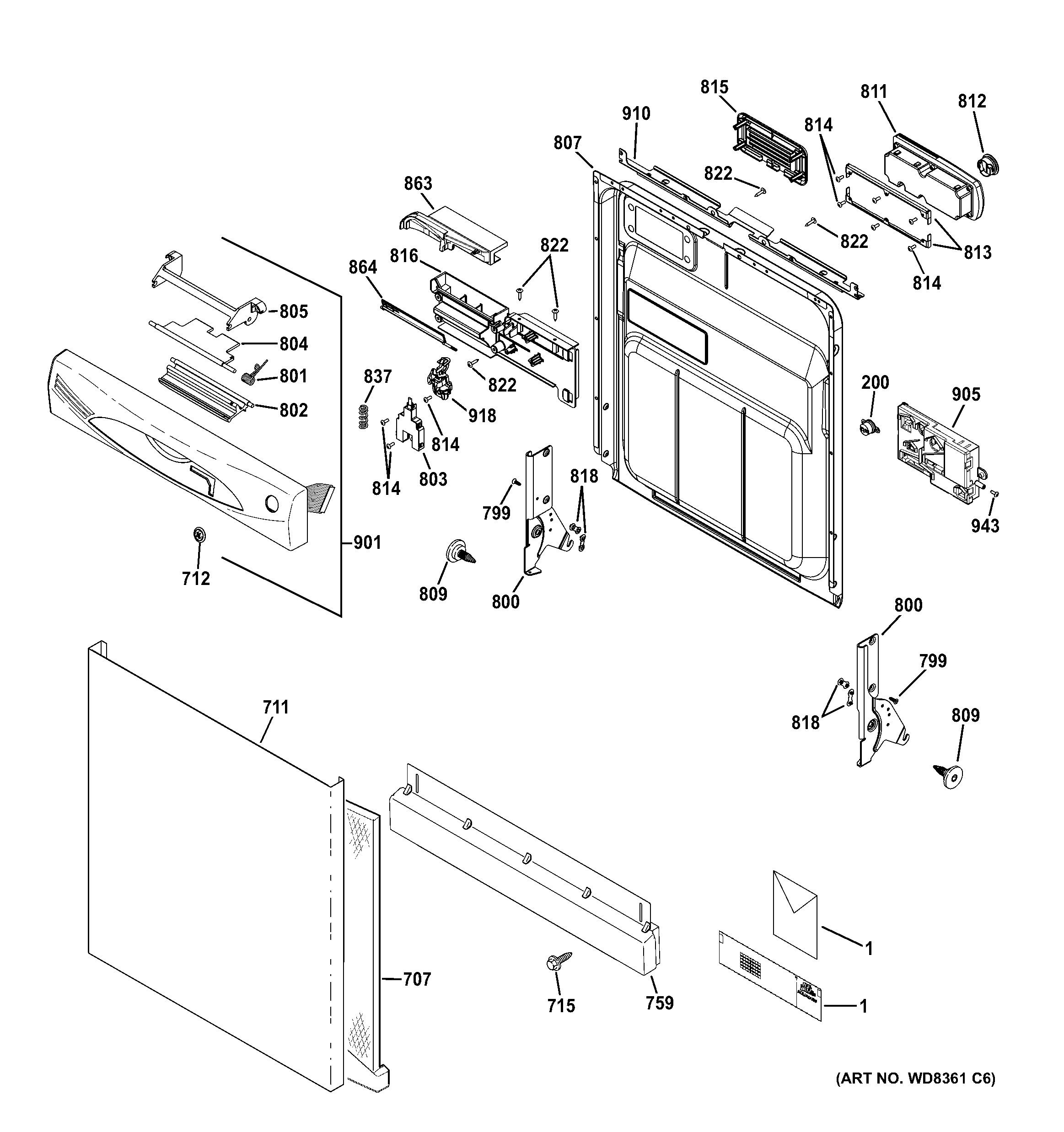

GDWF150V40ES ESCUTCHEON & DOOR ASSEMBLY

GDWF150V40ES ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWF150V40ES ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30284
1GEN 31-30638
1GEN 49-55078
1WD02X10208 GE Screw 10-32 TTT Hex 7/16
200WD01X10420 GE Dishwasher Thermostat Service Kit
707GEN WD01X10407
711GEN WD27X10397
712GEN WD34X11840
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759TOEKICK ASM
799WZ5X219D GE Screw Package
800GEN WD14X10047
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
801WR02X10585 SPRING RECES
802GEN WD31X10143
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807WD31X10042 GE Dishwasher Inner Door Assembly
809SCR 10-24 TAP RNP 1/2
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814SCREWS 8-10 PL TRP 1/2 S
815WD12X10127 GE Dishwasher Vent Cover
816VENT BRACKET ASM
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
837WD03X10026 GE Dishwasher Spring Plunger
863GEN WD12X10306
864WD12X10044 GE Dishwasher Flapper Vent
901GEN WD34X11831
905GEN WD21X10440
910GEN WD34X11639
918WD21X10172 GE Dishwasher Vent Driver
943GEN WD02X10200
