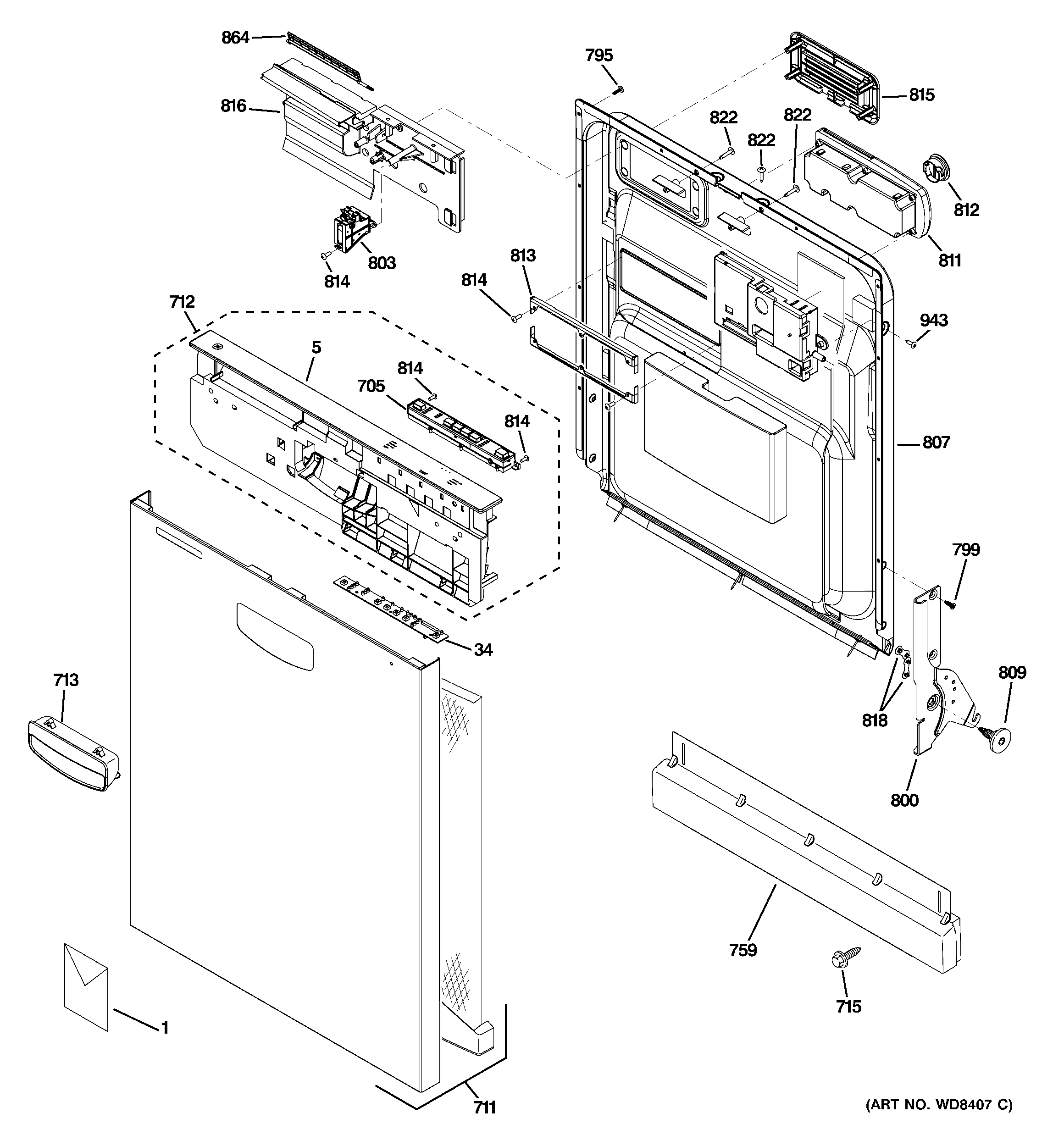

GDWF160V00SS ESCUTCHEON & DOOR ASSEMBLY

GDWF160V00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWF160V00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55066-1
1GEN 31-30284
1GEN 31-30280
1GEN 31-30260
1WD12X10353 GE Dishwasher Spray Arm Hub
1GEN WD00X939
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN WD00X946
1WD01X10420 GE Dishwasher Thermostat Service Kit
1WD01X10547 GE Dishwasher TCO Kit Assembly
1GEN 49-55065-1
1WD35X10347 GE Dishwasher O-Ring Kit
1GEN 31-30619-2
1VENT BRACKET ASM
711GEN WD31X10109
712GEN WD34X11692
759GEN WD27X10278
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800GEN WD14X10021
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803GEN WD21X10169
807WD31X10042 GE Dishwasher Inner Door Assembly
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
818WD12X10313 GE Dishwasher Hinge Arm Bearing
864WD12X10044 GE Dishwasher Flapper Vent
943WZ5X219D GE Screw Package
