GDWF160V40SS ESCUTCHEON & DOOR ASSEMBLY

GDWF160V40SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

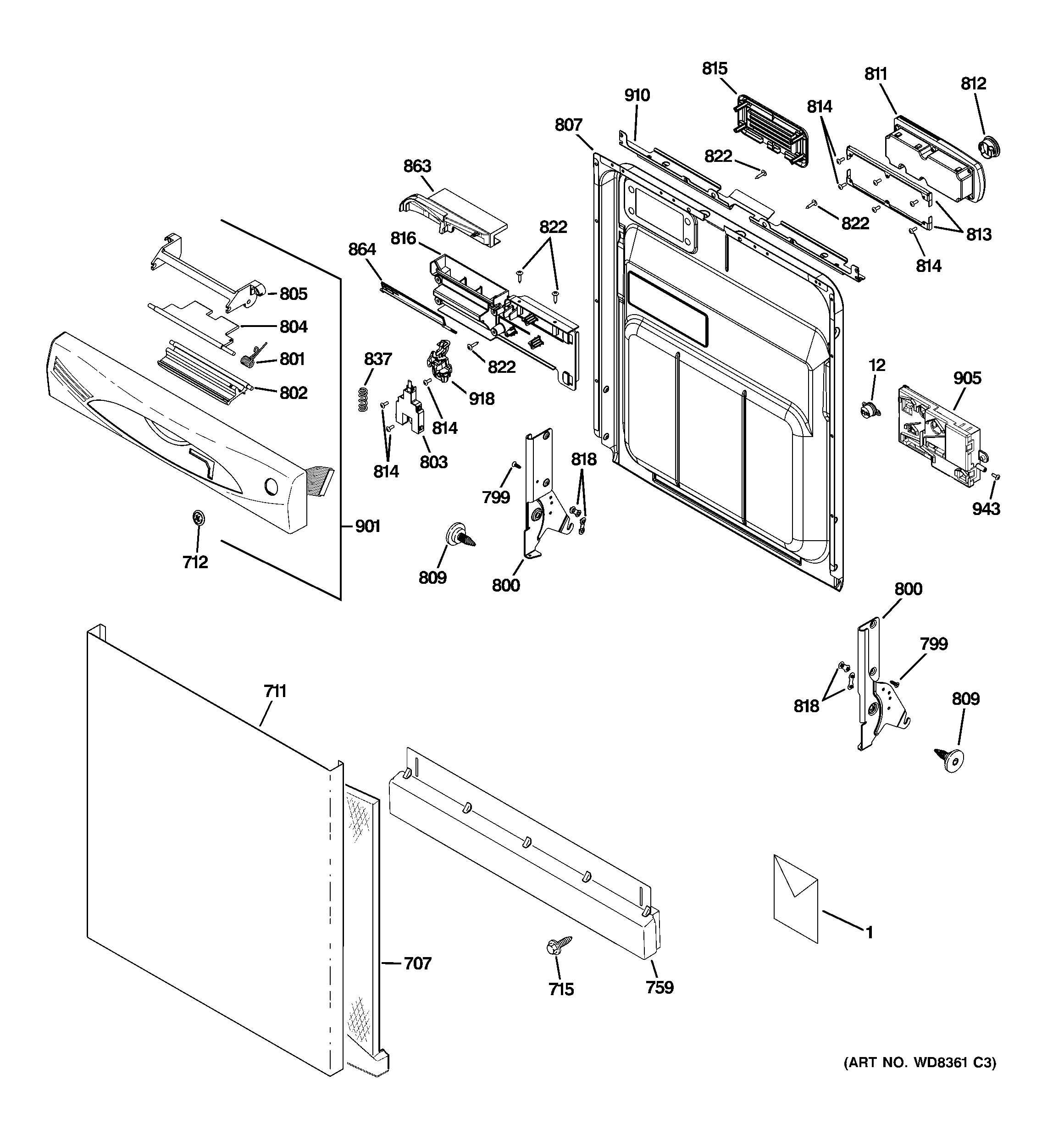

GDWF160V40SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30284
1GEN 31-30619-3
1GEN 49-55065-1
12GEN WD21X10472
707GEN WD01X10407
711GEN WD31X10109
712GEN WD34X11692
715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
759GEN WD27X10278
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10021
801WR02X10585 SPRING RECES
802GEN WD13X10054
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807WD31X10042 GE Dishwasher Inner Door Assembly
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816VENT BRACKET ASM
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
837WD03X10026 GE Dishwasher Spring Plunger
863GEN WD12X10306
864WD12X10044 GE Dishwasher Flapper Vent
901GEN WD34X11694
905GEN WD21X10440
910GEN WD34X11639
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
