GDWF160V50SS ESCUTCHEON & DOOR ASSEMBLY

GDWF160V50SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

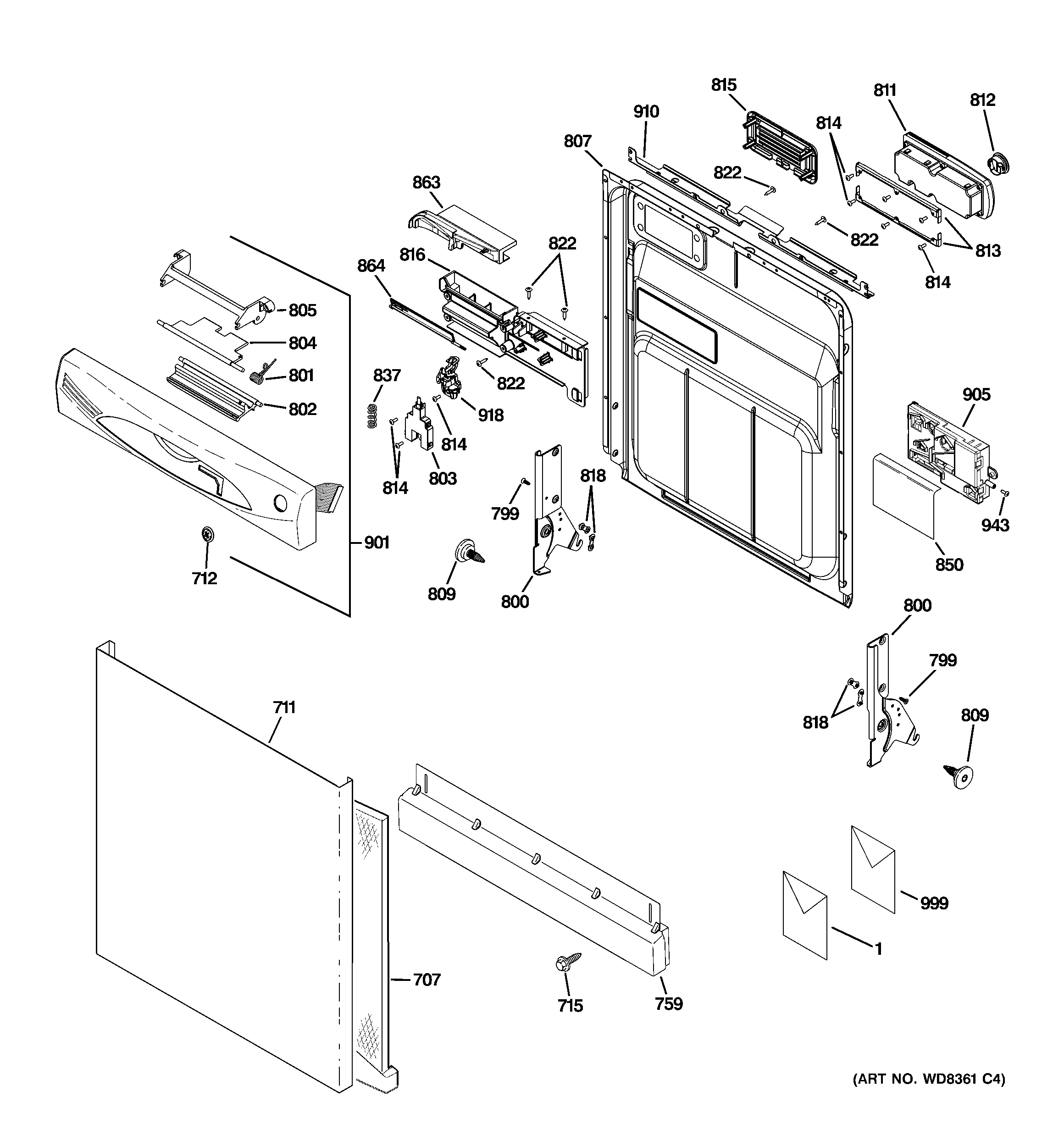

GDWF160V50SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55078
1GEN 31-30284
1GEN 31-30638
707GEN WD01X10407
711GEN WD31X10109
712GEN WD34X11692
715GEN WD02X10200
759GEN WD27X10278
799WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
800GEN WD14X10040
800GEN WD14X10041
801WR02X10585 SPRING RECES
802GEN WD13X10054
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807WD31X10042 GE Dishwasher Inner Door Assembly
809SCR 10-24 TAP RNP 1/2
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816VENT BRACKET ASM
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
837WD03X10026 GE Dishwasher Spring Plunger
863GEN WD12X10306
864WD12X10044 GE Dishwasher Flapper Vent
901GEN WD34X11694
905GEN WD21X10440
910GEN WD34X11639
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
