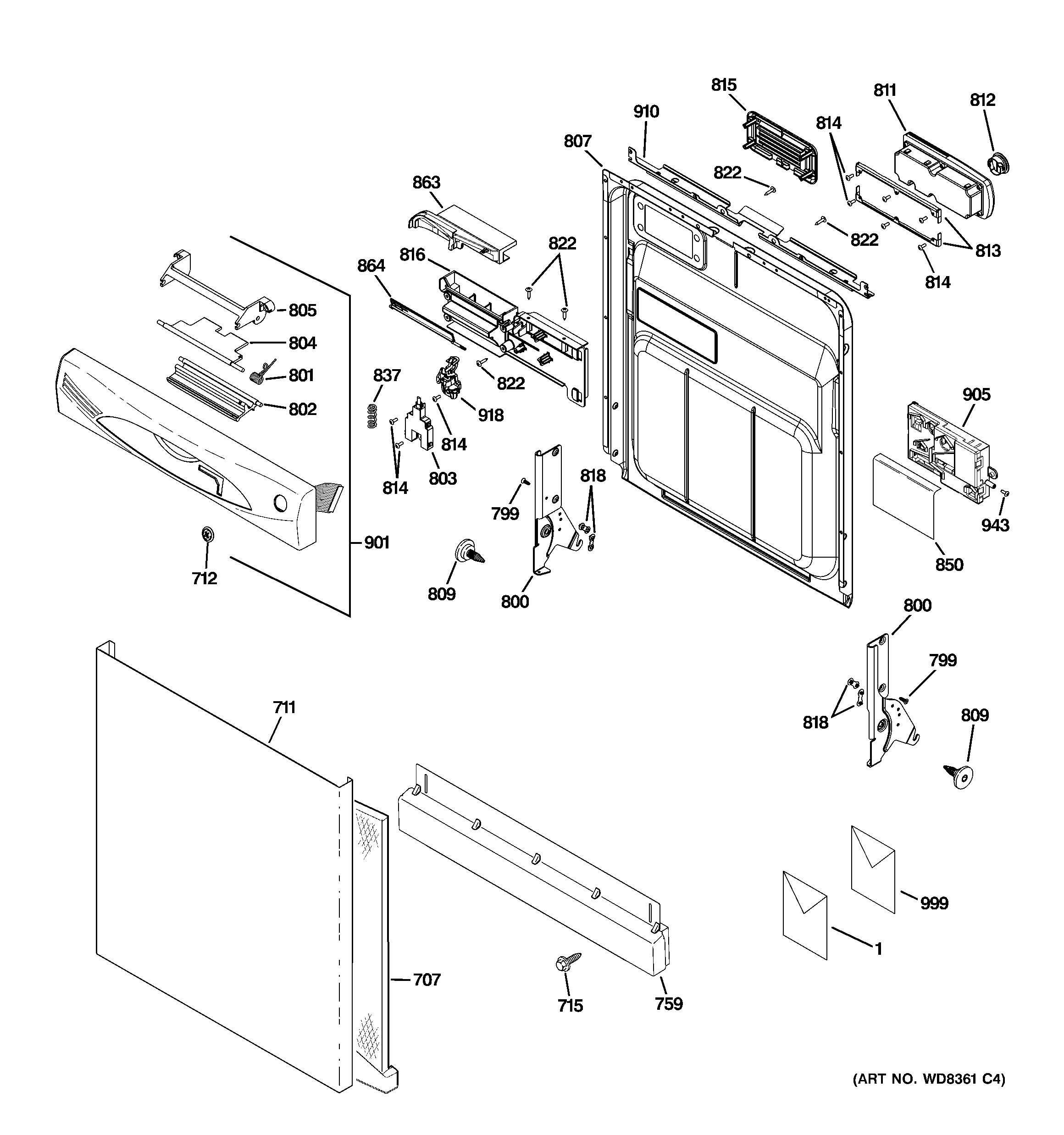

GDWF160V55SS ESCUTCHEON & DOOR ASSEMBLY

GDWF160V55SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWF160V55SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30284
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30280
1GEN WD00X939
1GEN 31-30638
1GEN 31-31517
1GEN 49-55078
1WD02X10208 GE Screw 10-32 TTT Hex 7/16
707GEN WD01X10407
711GEN WD31X10109
712GEN WD34X11692
715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
759GEN WD27X10278
799SCR 10-24 TAP RNP 1/2
800GEN WD14X10047
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
801WR02X10585 SPRING RECES
802GEN WD13X10054
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807WD31X10042 GE Dishwasher Inner Door Assembly
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814SCREWS 8-10 PL TRP 1/2 S
815WD12X10127 GE Dishwasher Vent Cover
816VENT BRACKET ASM
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
837WD03X10026 GE Dishwasher Spring Plunger
863GEN WD12X10306
864WD12X10044 GE Dishwasher Flapper Vent
901GEN WD34X11694
905GEN WD21X10440
910GEN WD34X11639
910GEN WD34X11864
918WD21X10172 GE Dishwasher Vent Driver
943WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
943GEN WD02X10200
