GDWF160V55SS MOTOR-PUMP MECHANISM

GDWF160V55SS MOTOR-PUMP MECHANISM

Written by

in

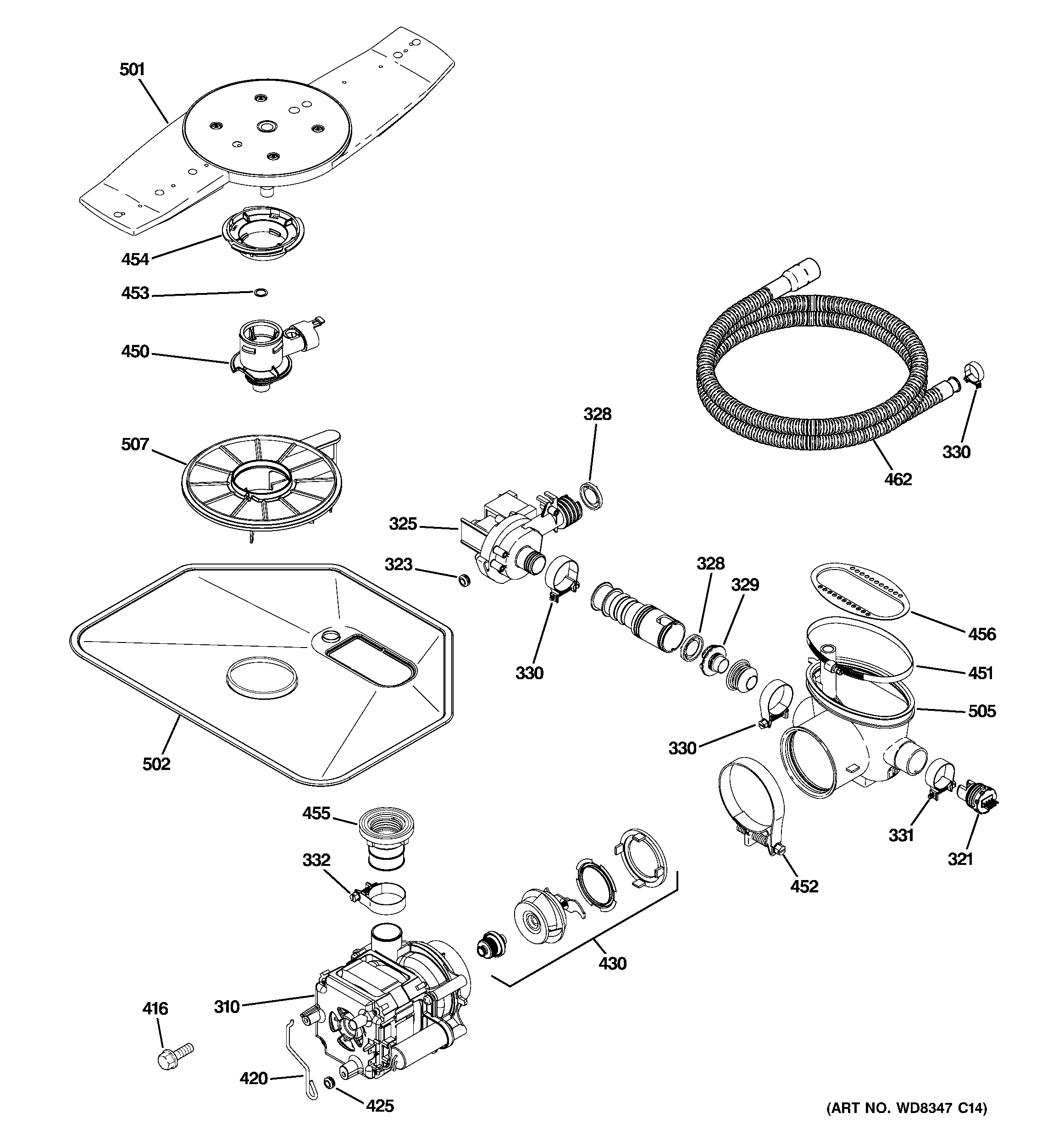

GDWF160V55SS MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10053 GE Dishwasher Pump and Motor Assembly
321GEN WD21X10272
323WD01X10269 GE Dishwasher Grommet
325PUMP DRAIN ASM
328WD01X10406 GE Dishwasher Valve Flapper Dual Pump
329GEN WD01X10405
331WD01X10104 GE Dishwasher Hose Clamp
332WD01X10103 GE Dishwasher Clamp
420WD01X10211 GE Dishwasher Mechanical Hanger Assembly
425WD01X10101 GE Dishwasher Pump Grommet
430WD19X10039 GE Dishwasher Impeller Assembly Kit
430WD19X10038 GE Dishwasher Impeller Kit
450HUB VENTURI ASM
451WD01X10210 GE Dishwasher Sump Clamp
452WD1X1392 GE Dishwasher Sump Clamp
453GEN WD01X10107
454WD12X10061 GE Arm Retainer Nut
455WD18X10010 GE Dishwasher Pump Connector Assembly
456WD01X10219 GE Dishwasher Sump Plate
462WD24X10045 GE Dishwasher Drain Tube Assembly
501WD22X10062 GE Dishwasher Arm Spray Low Assembly
502FILTER COARSE
505WD18X10026 GE Dishwasher Sump Inlet Assembly
507WD12X10109 GE Dishwasher Fine Filter Assembly
