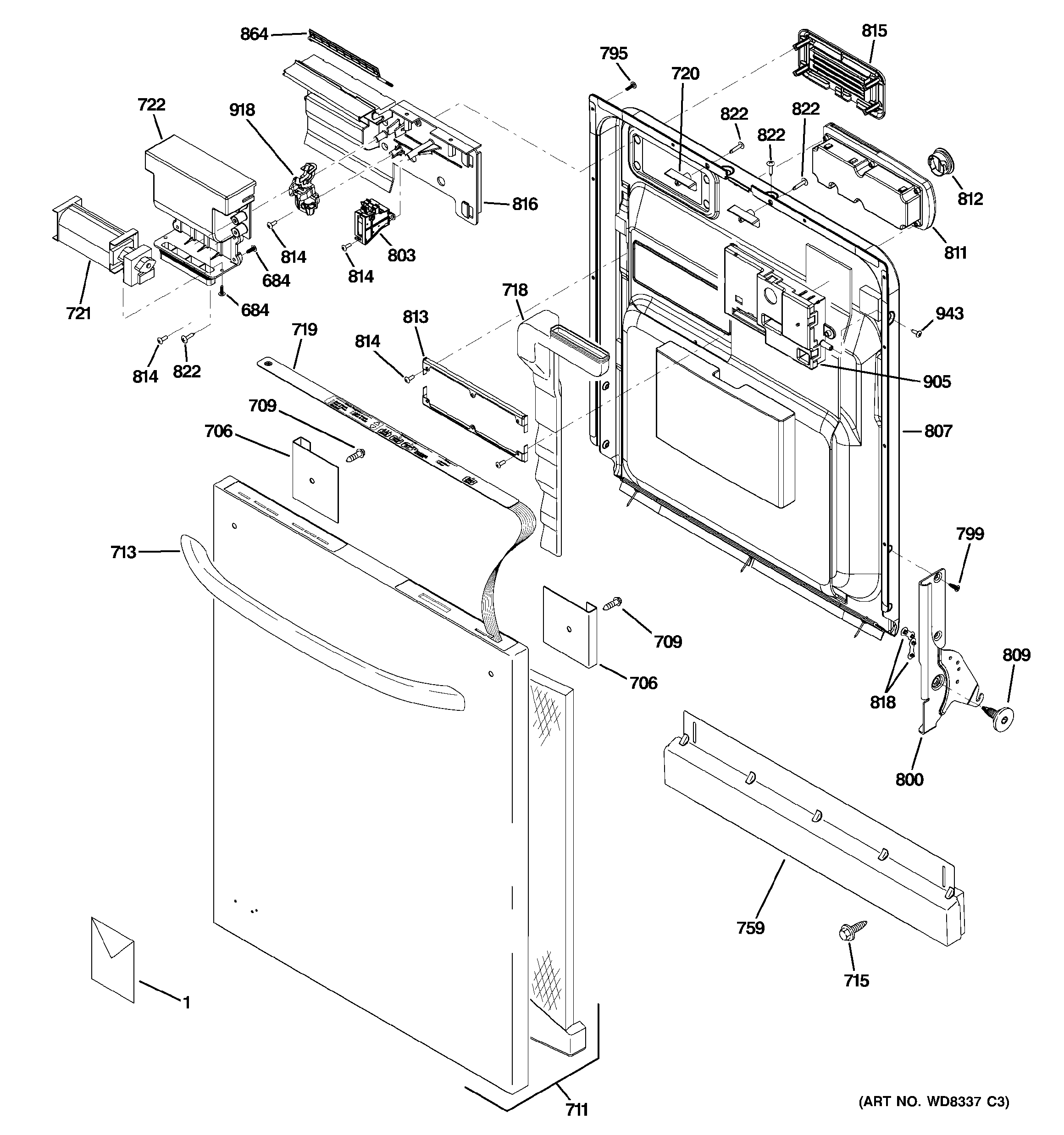

GDWT100R10WW ESCUTCHEON & DOOR ASSEMBLY

GDWT100R10WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWT100R10WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30485-1
1WD35X10347 GE Dishwasher O-Ring Kit
1GEN 31-30485
1GEN 49-55057
1GEN 31-30245
684WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
706GEN WD01X10412
709GEN WD02X10168
711GEN WD34X11520
711GEN WD34X11522
713GEN WD09X10069
713GEN WD09X10068
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
718GEN WD12X10190
719GEN WD34X11523
719GEN WD34X11521
720GEN WD01X10236
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759GEN WD27X10168
759WD27X10177 GE Dishwasher Toe Kick Assembly
795WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800GEN WD14X10021
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807GEN WD31X10067
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10254
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10044 GE Dishwasher Flapper Vent
864WD12X10067 GE Dishwasher Flapper Vent
905MODULE CONTROL ASM
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
