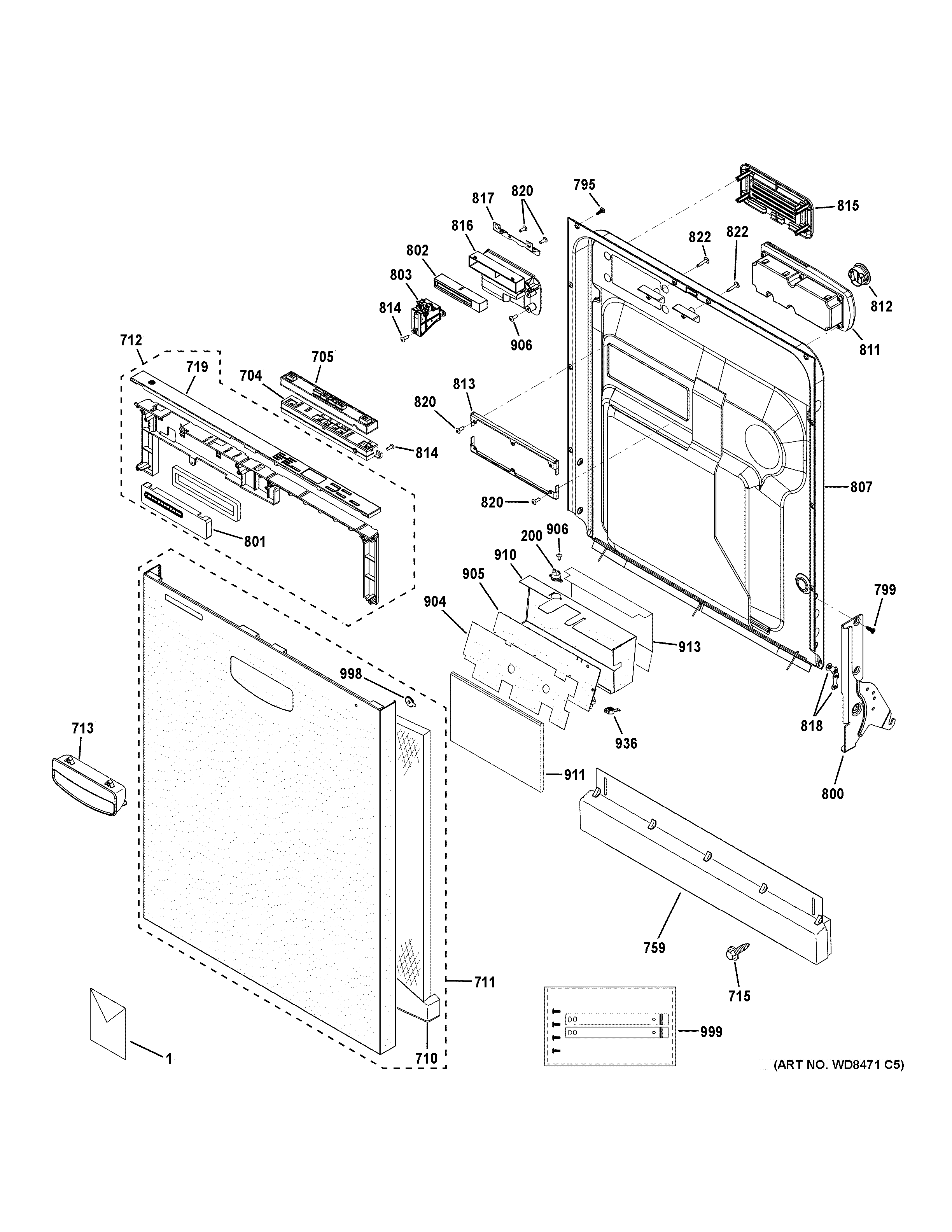

GDWT106V50BB ESCUTCHEON & DOOR ASSEMBLY

Products

Position	Product
1	PM MINI MANUAL
1	PM MANUAL USE & CARE
1	PM INSTALL INSTRUCTIONS
200	TCO ASSEMBLY
704	TACTILE ASM HOUSING
705	GEN WD01X10516
710	GEN WD01X10514
711	PANEL FRONT FINISHED BB
712	CONSOLE ASM KIT
713	GEN WD09X10075
715	WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
719	CONSOLE ASM BB
759	WD27X10177 GE Dishwasher Toe Kick Assembly
795	SCR 8-18 AB OV .655
799	SCR 10-24 TAP RNP 1/2
800	GEN WD14X10040
800	GEN WD14X10041
801	GEN WD01X10518
802	FOAM VENT
803	LATCH ASM - 1 SWITCH
807	DOOR INNER & GASKET
811	WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812	WD12X10122 GE Dishwasher Dispenser Cap
813	WD01X10207 GE Dishwasher Bracket Detergent Display
814	GEN WD02X10104
815	WD12X10127 GE Dishwasher Vent Cover
816	VENT ASM
817	BRACKET SUPPORT LATCH
818	WD12X10313 GE Dishwasher Hinge Arm Bearing
820	WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
822	SCR 8-18 AB OV 1.405
904	HEAT SHIELD
905	CONTROL TACTILE ASM KIT
906	WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
910	SHIELD BOARD TOP
911	GEN WD01X10344
913	WD01X10635 GE Dishwasher Control Shield
936	WD21X10464 GE Dishwasher Model Selector Plug Assembly
998	GEN WD01X10561
999	WD35X10372 GE Dishwasher Bag and Bracket Assembly
