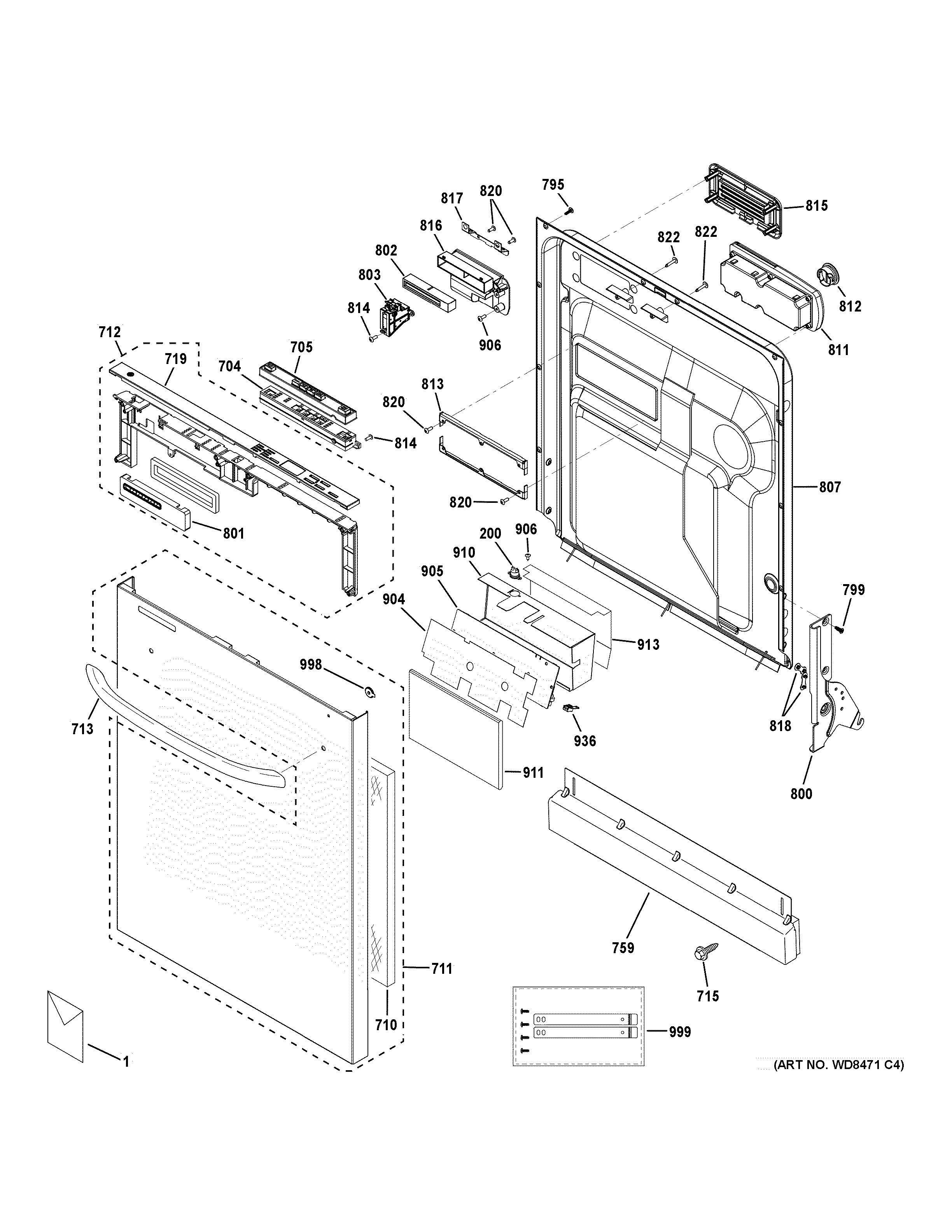

GDWT368V00SS ESCUTCHEON & DOOR ASSEMBLY

GDWT368V00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWT368V00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL
1PM MANUAL USE & CARE
200TCO ASSEMBLY
704TACTILE ASM HOUSING
705GEN WD01X10516
710GEN WD01X10514
711GEN WD34X11718
712CONSOLE ASM KIT
713HANDLE SS
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
719CONSOLE ASM BB
759GEN WD27X10278
795SCR 8-18 AB OV .655
799SCR 10-24 TAP RNP 1/2
800GEN WD14X10047
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
801GEN WD01X10524
802FOAM VENT
803LATCH ASM – 1 SWITCH
807DOOR INNER & GASKET
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816VENT ASM
817BRACKET SUPPORT LATCH
818WD12X10313 GE Dishwasher Hinge Arm Bearing
820WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
822SCR 8-18 AB OV 1.405
904HEAT SHIELD
905CONTROL TACTILE ASM KIT
906WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
910SHIELD BOARD TOP
911GEN WD01X10344
913WD01X10635 GE Dishwasher Control Shield
936WD21X10464 GE Dishwasher Model Selector Plug Assembly
998GEN WD01X10561
999WD35X10372 GE Dishwasher Bag and Bracket Assembly
