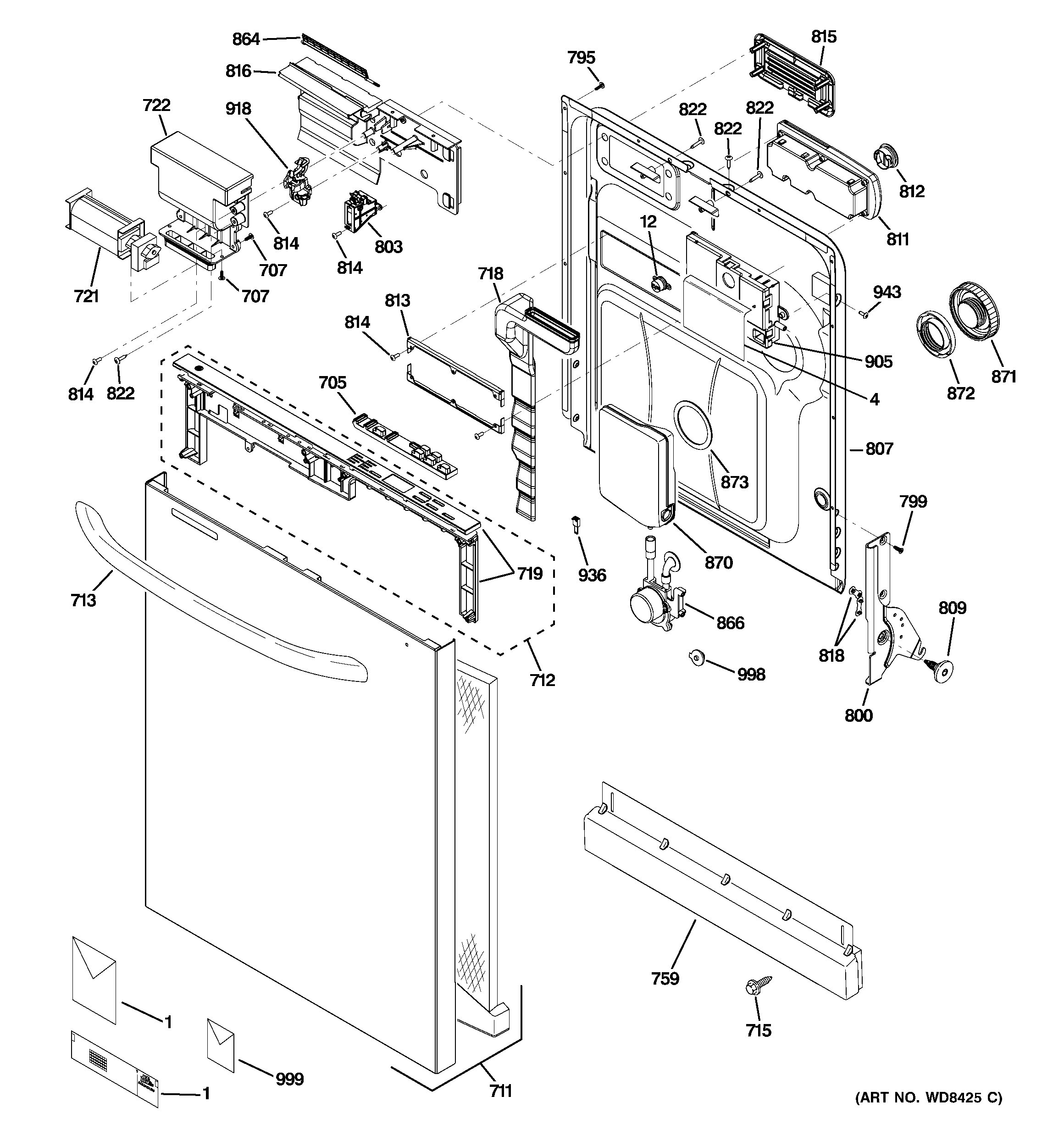

GDWT708V00WW ESCUTCHEON & DOOR ASSEMBLY

GDWT708V00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWT708V00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 49-55078
1GEN 31-30637
1GEN 31-30284
4BOARD CNTRL SHIELD
12WD01X10547 GE Dishwasher TCO Kit Assembly
705BUTTON ASM SLICONE
705GEN WD01X10588
707WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
711GEN WD34X11750
711GEN WD34X11751
712GEN WD27X10359
712GEN WD27X10358
713GEN WD09X10069
713GEN WD09X10068
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
718GEN WD12X10190
719GEN WD27X10334
719GEN WD27X10333
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759WD27X10206 GE Dishwasher Toekick Assembly
759GEN WD27X10207
795WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
799SCR 10-24 TAP RNP 1/2
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10021
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD2X444 GE Dishwasher Mechanical Screw
864WD12X10067 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870WD35X10376 GE Detergent Bottle Assembly
870GEN WD35X10361
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
936GEN WD21X10480
943WZ5X219D GE Screw Package
998GEN WD01X10560
998GEN WD01X10561
999WD01X10557 GE Dishwasher HMI Harness Assembly
