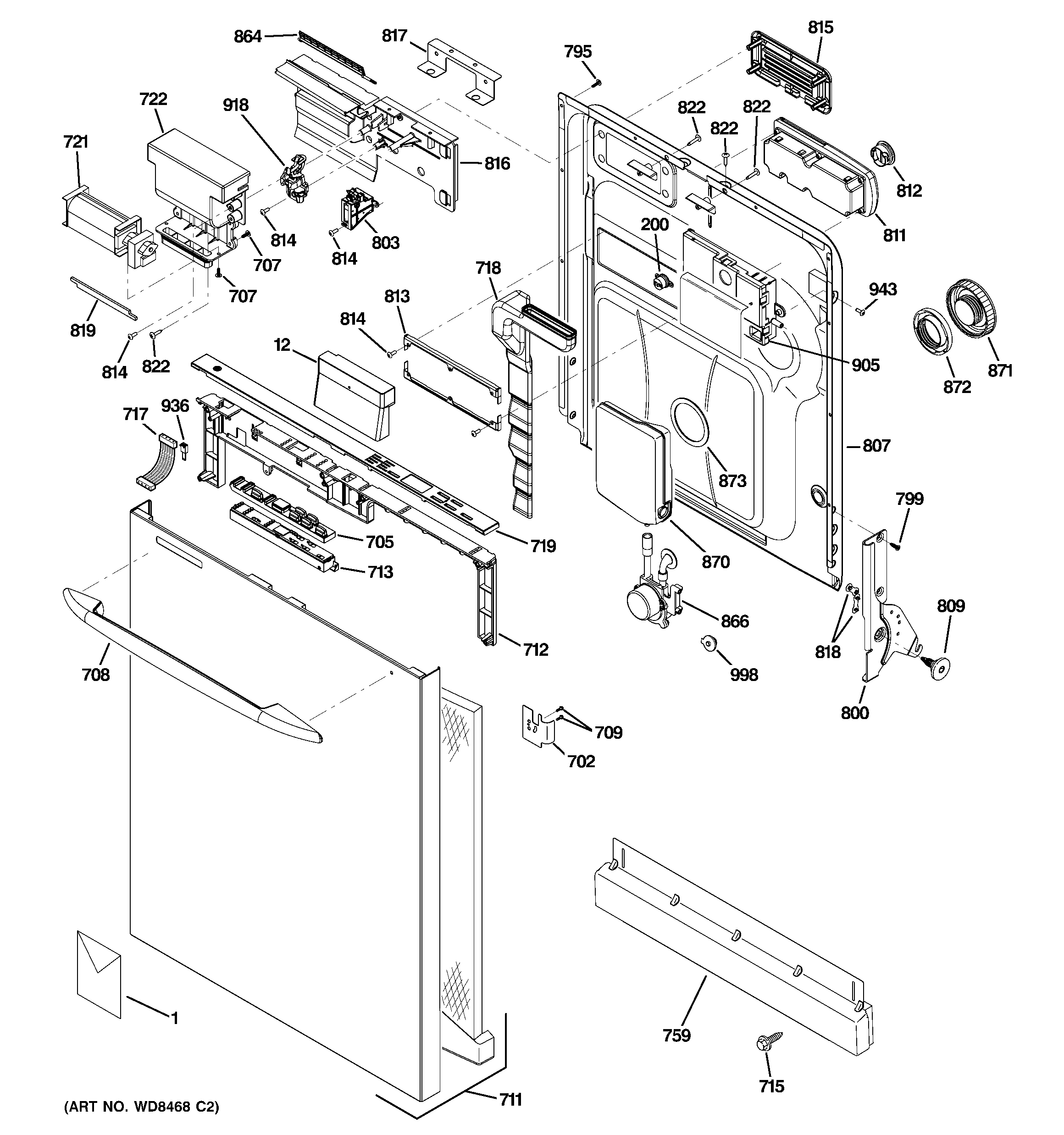

GDWT708V50WW ESCUTCHEON & DOOR ASSEMBLY

GDWT708V50WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWT708V50WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30284
1GEN 49-55078
1GEN 31-30637
12BOARD CNTRL SHIELD
200WD01X10420 GE Dishwasher Thermostat Service Kit
702HANDLE BRACKET
705BUTTON ASM SLICONE
705GEN WD01X10588
707WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
708GEN WD09X10069
708GEN WD09X10068
711GEN WD34X11751
711GEN WD34X11750
712GEN WD27X10358
712GEN WD27X10359
713TACTILE ASM HOUSING
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
717WD01X10557 GE Dishwasher HMI Harness Assembly
718GEN WD12X10190
719GEN WD27X10333
719GEN WD27X10334
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759GEN WD27X10207
759WD27X10206 GE Dishwasher Toekick Assembly
795GEN WD02X10203
799WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
800GEN WD14X10041
800GEN WD14X10040
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
809SCR 10-24 TAP RNP 1/2
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
817WD01X10551 GE Dishwasher Latch Bracket
818WD12X10313 GE Dishwasher Hinge Arm Bearing
819GASKET CONDUIT
822SCR 8-18 AB OV .655
864WD12X10067 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870WD35X10376 GE Detergent Bottle Assembly
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
936GEN WD21X10480
943WZ5X219D GE Screw Package
998LENS INDICATOR
