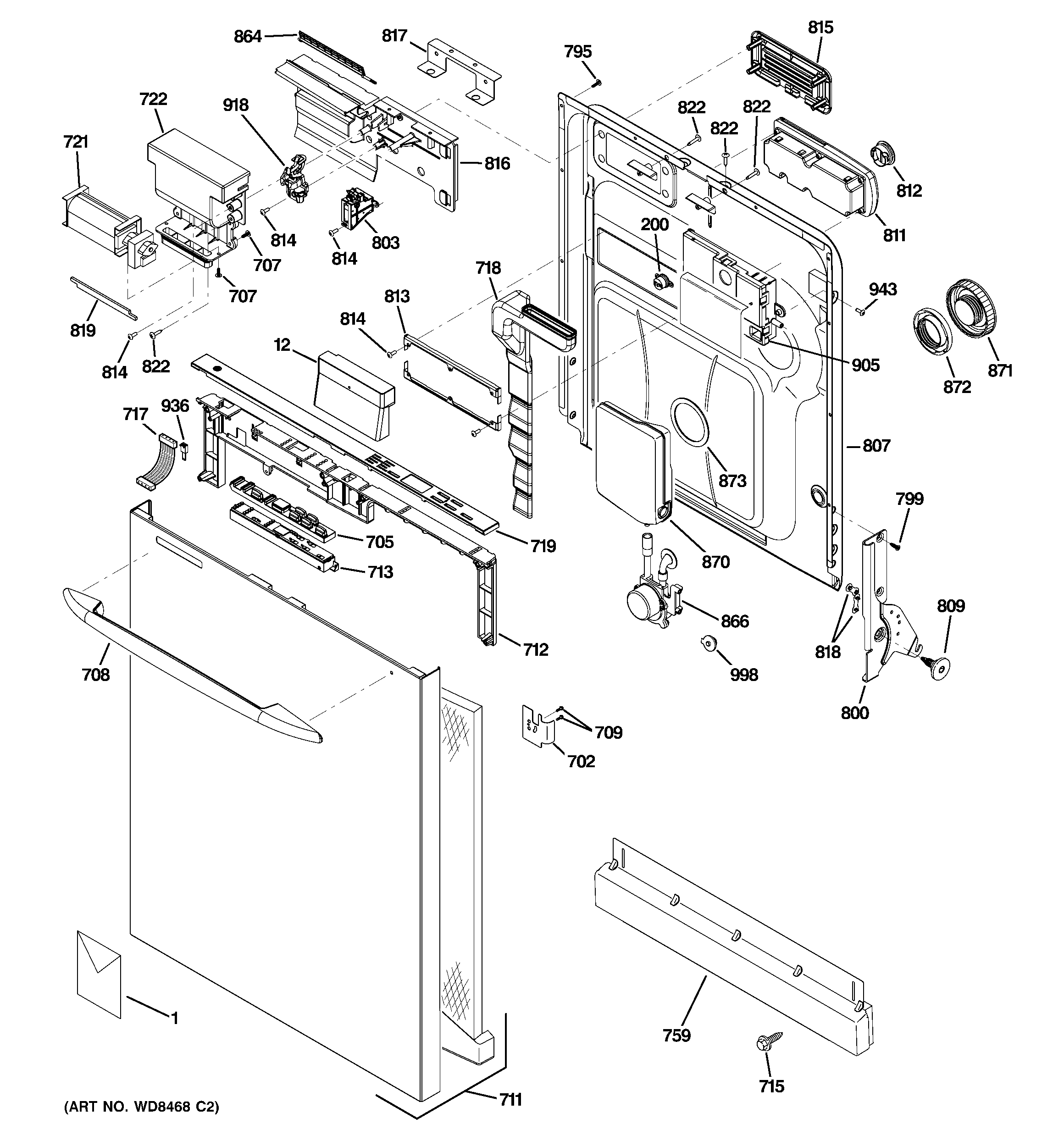

GDWT708V55BB ESCUTCHEON & DOOR ASSEMBLY

GDWT708V55BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWT708V55BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1WD02X10208 GE Screw 10-32 TTT Hex 7/16
1GEN 31-30284
1GEN 31-30280
1GEN WD00X939
1WD01X10557 GE Dishwasher HMI Harness Assembly
1WD01X10551 GE Dishwasher Latch Bracket
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 49-55078
1GEN 31-30637
1GEN WD27X10334
1GEN WD21X10480
12BOARD CNTRL SHIELD
12TACTILE ASM HOUSING
12HANDLE BRACKET
200WD01X10420 GE Dishwasher Thermostat Service Kit
707SCR 10-24 TAP RNP 1/2
711GEN WD34X11750
713GEN WD09X10068
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
718GEN WD12X10190
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759WD27X10206 GE Dishwasher Toekick Assembly
800GEN WD14X10040
800GEN WD14X10041
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
809GEN WD02X10203
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814SCREWS 8-10 PL TRP 1/2 S
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822SCR 8-18 AB OV .655
864WD12X10067 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870WD35X10376 GE Detergent Bottle Assembly
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
943GEN WD02X10200
943WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
