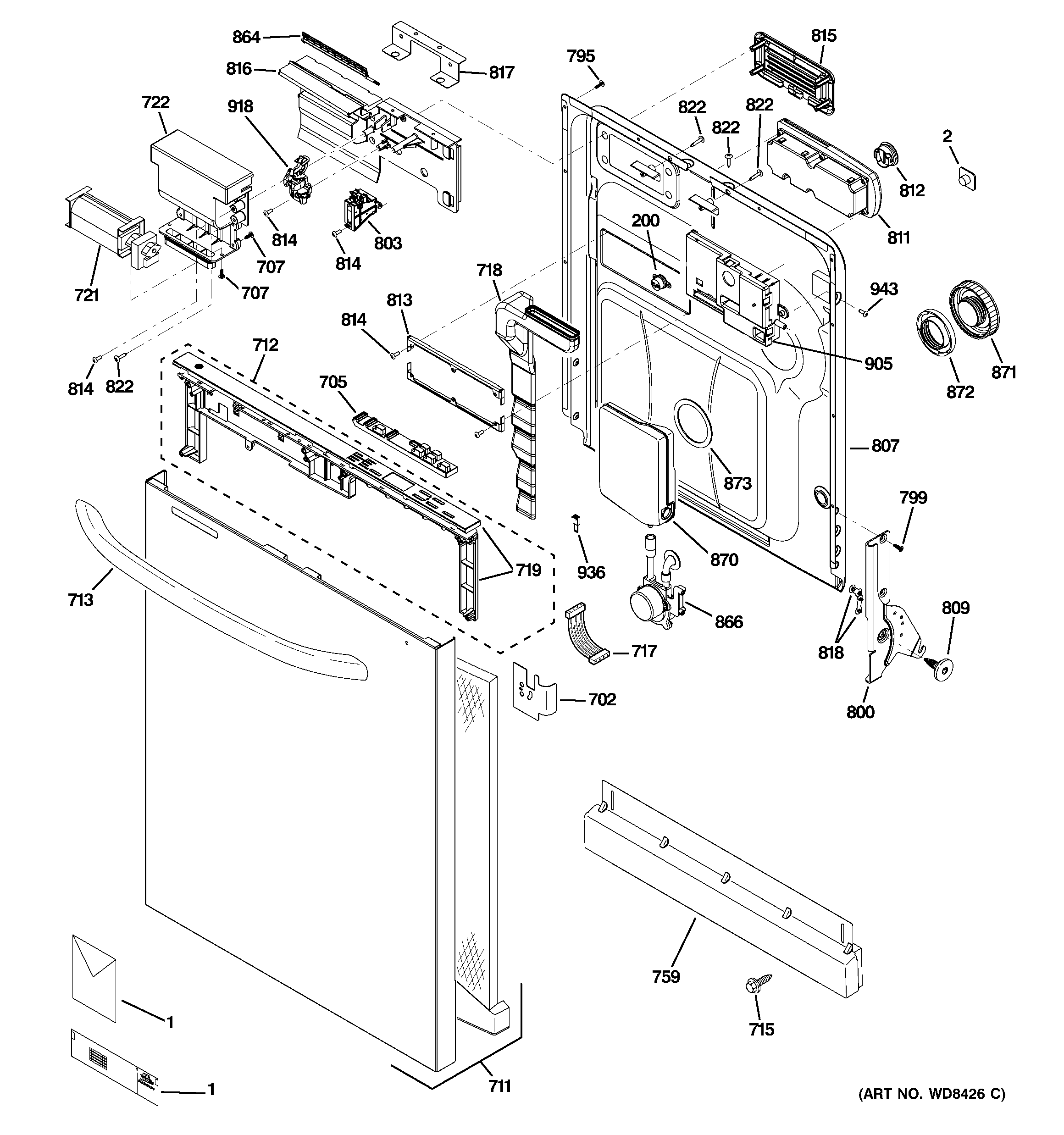

GDWT768V00SS ESCUTCHEON & DOOR ASSEMBLY

GDWT768V00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWT768V00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30637
1GEN 31-30284
1GEN 49-55078
2WD01X10295 GE Dishwasher Hardness Tester Strip
200WD01X10547 GE Dishwasher TCO Kit Assembly
702HANDLE BRACKET
705BUTTON ASM SILICONE
707WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
711GEN WD34X11776
712GEN WD27X10360
713HANDLE SS
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
717WD01X10557 GE Dishwasher HMI Harness Assembly
718GEN WD12X10190
719GEN WD27X10335
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759TOEKICK ASM
795WD2X444 GE Dishwasher Mechanical Screw
800GEN WD14X10021
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
817WD01X10551 GE Dishwasher Latch Bracket
818WD12X10313 GE Dishwasher Hinge Arm Bearing
864WD12X10067 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870WD35X10376 GE Detergent Bottle Assembly
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
936GEN WD21X10480
943WZ5X219D GE Screw Package
