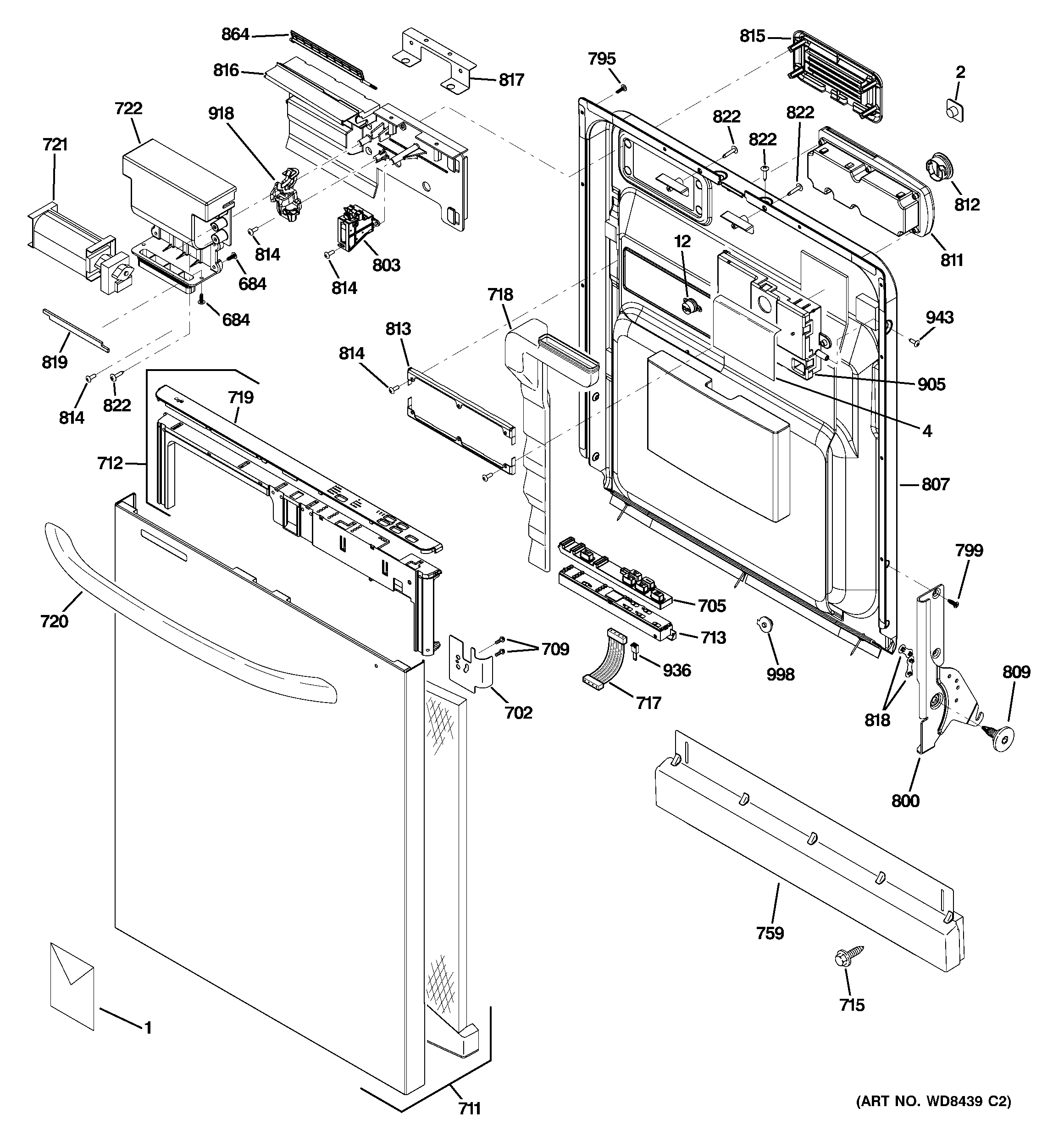

GDWT768V55SS ESCUTCHEON & DOOR ASSEMBLY

GDWT768V55SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDWT768V55SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1WD01X10557 GE Dishwasher HMI Harness Assembly
1WD01X10420 GE Dishwasher Thermostat Service Kit
1WD01X10551 GE Dishwasher Latch Bracket
1GEN WD00X939
1GEN 31-30280
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30284
1GEN 31-30637
1GEN 49-55078
1GEN WD21X10480
1GEN WD27X10335
1WD02X10208 GE Screw 10-32 TTT Hex 7/16
2LENS INDICATOR
12BOARD CNTRL SHIELD
12HANDLE BRACKET
12TACTILE ASM HOUSING
684WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
711GEN WD34X11776
713HANDLE SS
715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
718GEN WD12X10190
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
800GEN WD14X10040
800GEN WD14X10041
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
809GEN WD02X10203
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814SCREWS 8-10 PL TRP 1/2 S
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822SCR 8-18 AB OV .655
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
943GEN WD02X10200
943WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
