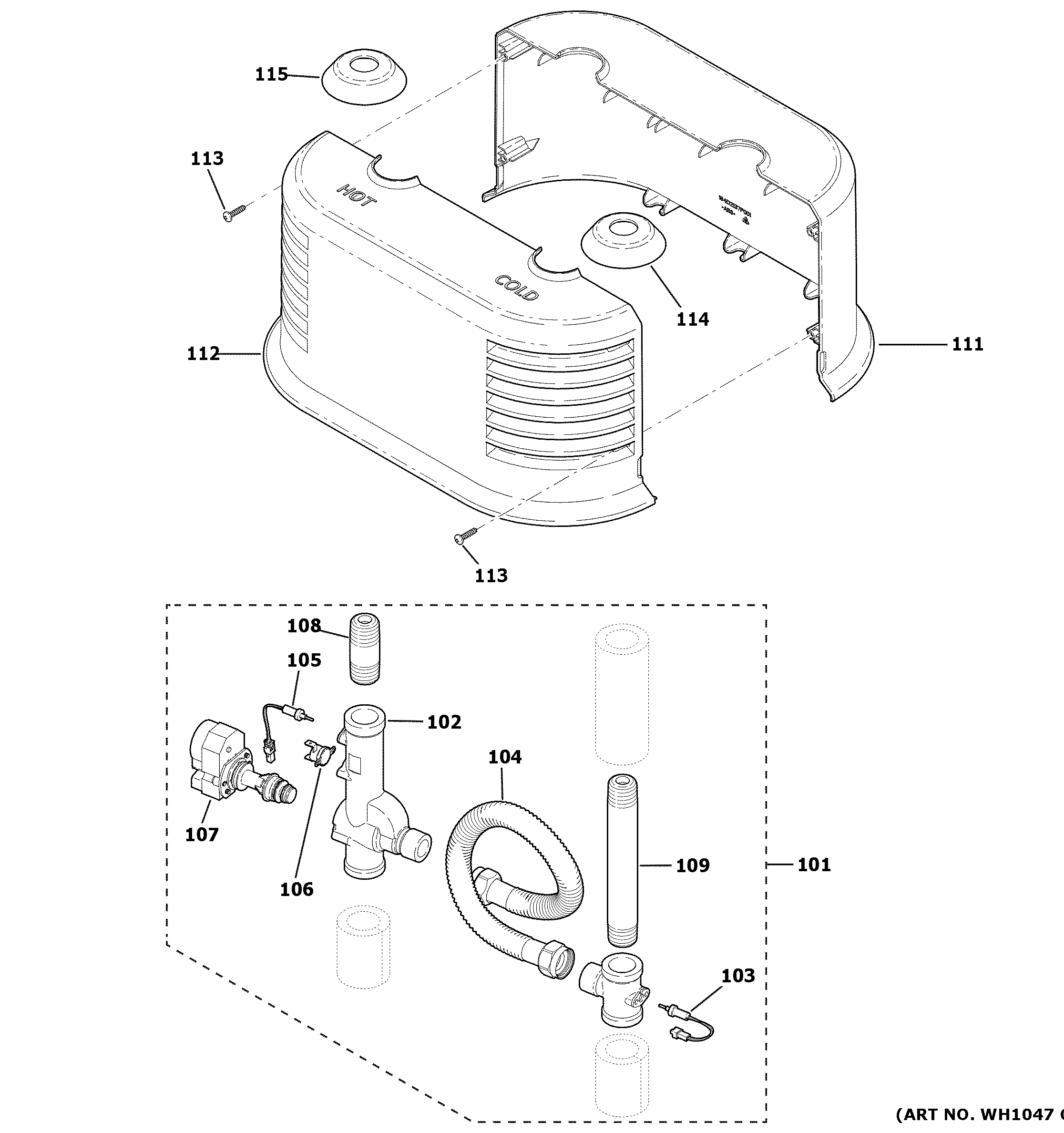

GE30S10BMM01 MIXING VALVE ASSEMBLY

Products

Position	Product
101	MIX VALVE COMPLETE ASSEMBLY
102	MIX TEE COMPLETE ASSEMBLY
103	TEMP SENSOR ASSEMBLY T7
104	FLEX HOSE
105	TEMP SENSOR ASSEMBLY T6
106	WS17X22383 GE 12V DC Thermal Cut-Out
107	MIXING VALVE CAM MOTOR
108	WATER I/O EXTENSION PIPE 2.5"
109	WATER I/O EXTENSION PIPE 6.75"
111	REAR SHROUD MIXING VALVE
112	FRONT SHROUD MIXING VALVE
113	SCR10-16 PL PNP 7/8 S BLK
114	GROMMET INLET, BLUE
115	GROMMET INLET, RED
