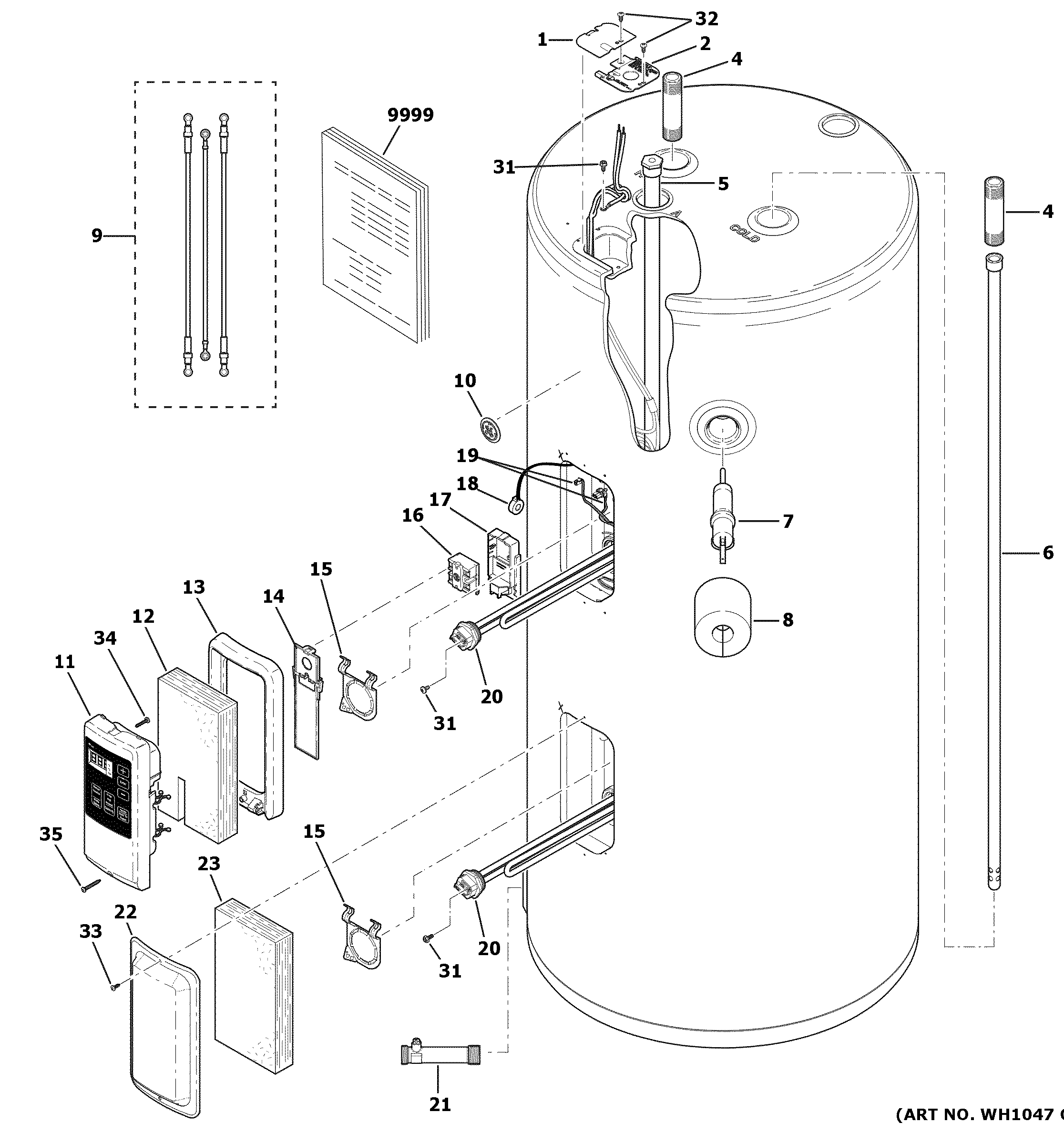

GE30S12BLM01 WATER HEATER ASSEMBLY

Products

Position	Product
1	J-BOX ACCESS COVER
2	FIXED J-BOX COVER
4	WATER I/O EXTENSION PIPE
5	SENSING ANODE ROD -MAG 24"
6	DIP TUBE ASM PEX
7	T-P VALVE
8	T-P INSULATION
9	WS19X22741 GE Service Wire Kit
10	WR04X29994 GE Refrigerator Badge
11	WS35X22322 GE Assembly Control
12	INSULATION UEELT
13	CONTROL BEZEL
14	BARRIER DIELECTRIC LE
15	CLIP SPRING THERMOSTAT
16	TCO 180F
17	TCO BRACKET
18	CURRENT SENSOR, TOROID
19	TANK SENSOR SPRING CLIP
20	WS51X23622 GE Heating Element with Gasket
21	WS06X21924 GE Drain Valve
22	WS51X21905 GE Element Cover Metal Large
23	WS04X21914 GE Insulation Ue/Le Polyester
31	SCR 10-32 GX HXWP 1/2 S ZN GRN
32	SCR 10-32 GX PNP 1/2 S ZN
33	SCR 8-32 GX PNP 3/8 S ZN
34	SCR8-18 PL PNP7/8S
35	SCR 8-32 GX PNP 1.25S ZN
9999	PM MINI MANUAL AND WIRING
