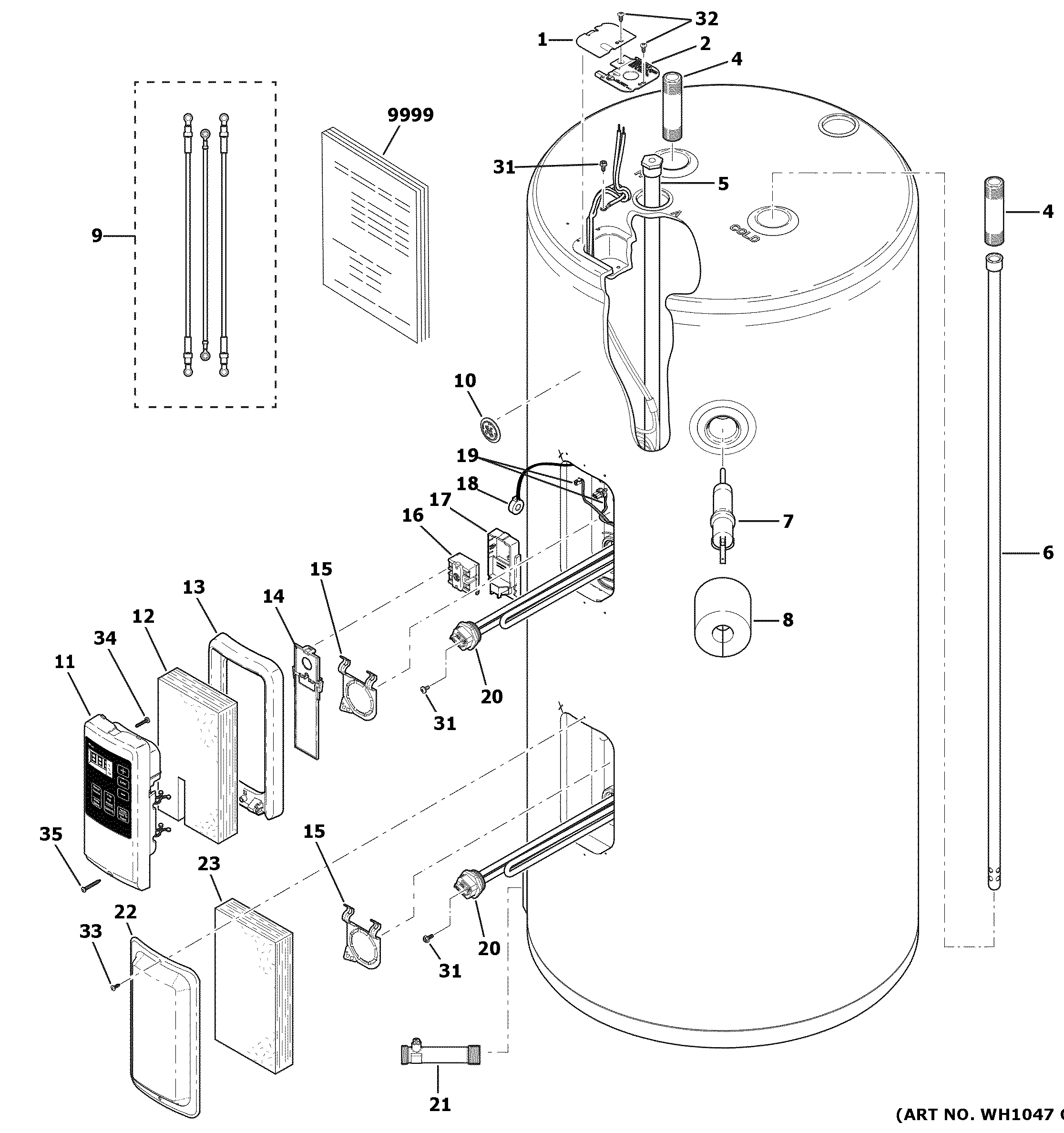

GE30T12BLM01 WATER HEATER ASSEMBLYadmin2025-04-26T08:41:22+00:00GE30T12BLM01 WATER HEATER ASSEMBLY ProductsPositionProduct1J-BOX ACCESS COVER2FIXED J-BOX COVER4WATER I/O EXTENSION PIPE5WS02X22961 GE 40" Sensing Anode Rod6Dip Tube7T-P VALVE8T-P INSULATION9WS19X22741 GE Service Wire Kit10WR04X29994 GE Refrigerator Badge11WS35X22322 GE Assembly Control12INSULATION UEELT13CONTROL BEZEL14BARRIER DIELECTRIC LE15CLIP SPRING THERMOSTAT16TCO 180F17TCO BRACKET18CURRENT SENSOR, TOROID19TANK SENSOR SPRING CLIP20WS51X23622 GE Heating Element with Gasket21WS06X21924 GE Drain Valve22WS51X21905 GE Element Cover Metal Large23WS04X21914 GE Insulation Ue/Le Polyester31SCR 10-32 GX HXWP 1/2 S ZN GRN32SCR 10-32 GX PNP 1/2 S ZN33SCR 8-32 GX PNP 3/8 S ZN34SCR8-18 PL PNP7/8S35SCR 8-32 GX PNP 1.25S ZN9999PM MINI MANUAL AND WIRING
