GE40S10BMM01 MIXING VALVE ASSEMBLY

GE40S10BMM01 MIXING VALVE ASSEMBLY

Written by

in

GE40S10BMM01 MIXING VALVE ASSEMBLY

Products

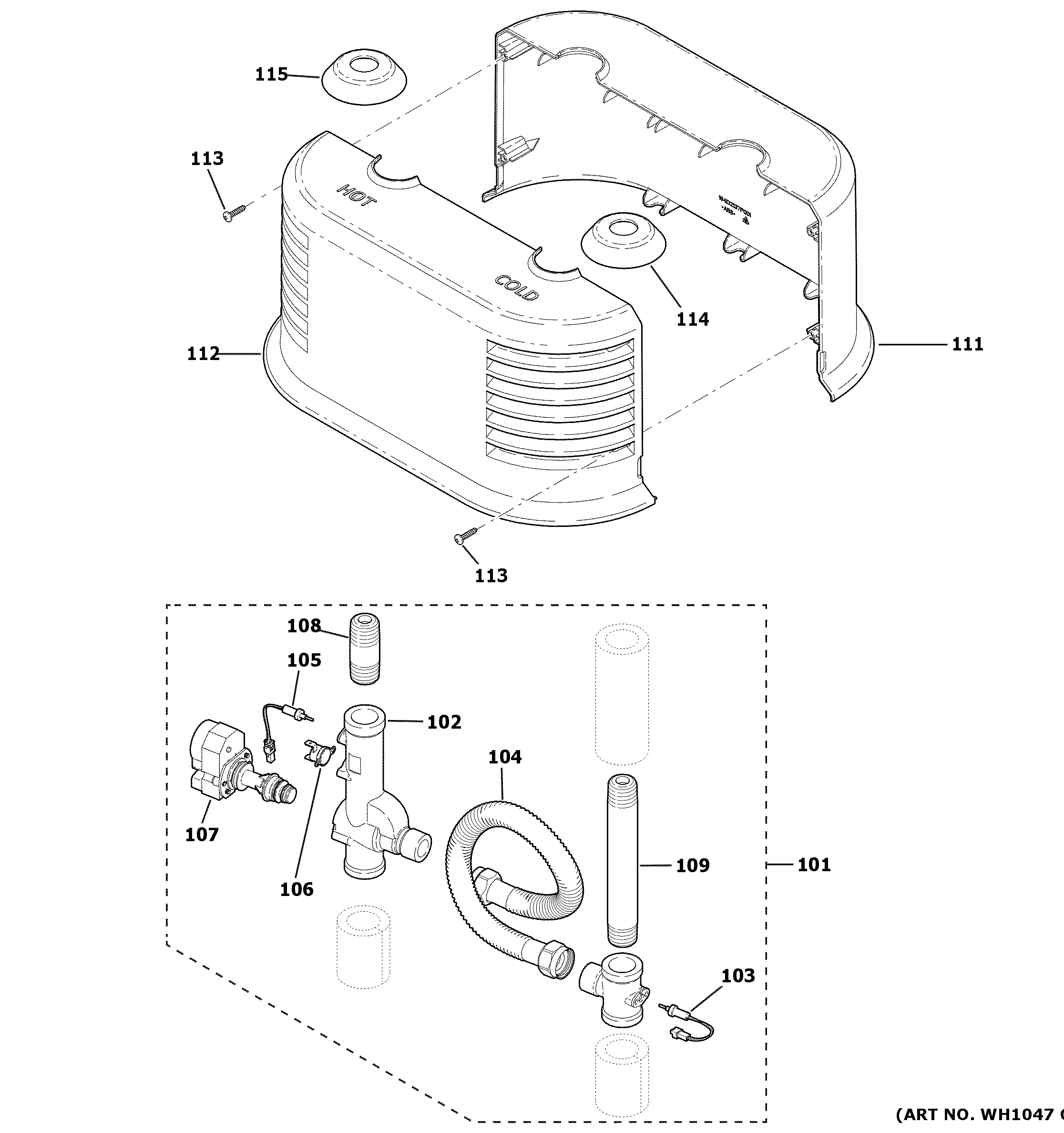

PositionProduct
101MIX VALVE COMPLETE ASSEMBLY
102MIX TEE COMPLETE ASSEMBLY
103TEMP SENSOR ASSEMBLY T7
104FLEX HOSE
105TEMP SENSOR ASSEMBLY T6
106WS17X22383 GE 12V DC Thermal Cut-Out
107MIXING VALVE CAM MOTOR
108WATER I/O EXTENSION PIPE 2.5"
109WATER I/O EXTENSION PIPE 6.75"
111REAR SHROUD MIXING VALVE
112FRONT SHROUD MIXING VALVE
113SCR10-16 PL PNP 7/8 S BLK
114GROMMET INLET, BLUE
115GROMMET INLET, RED
