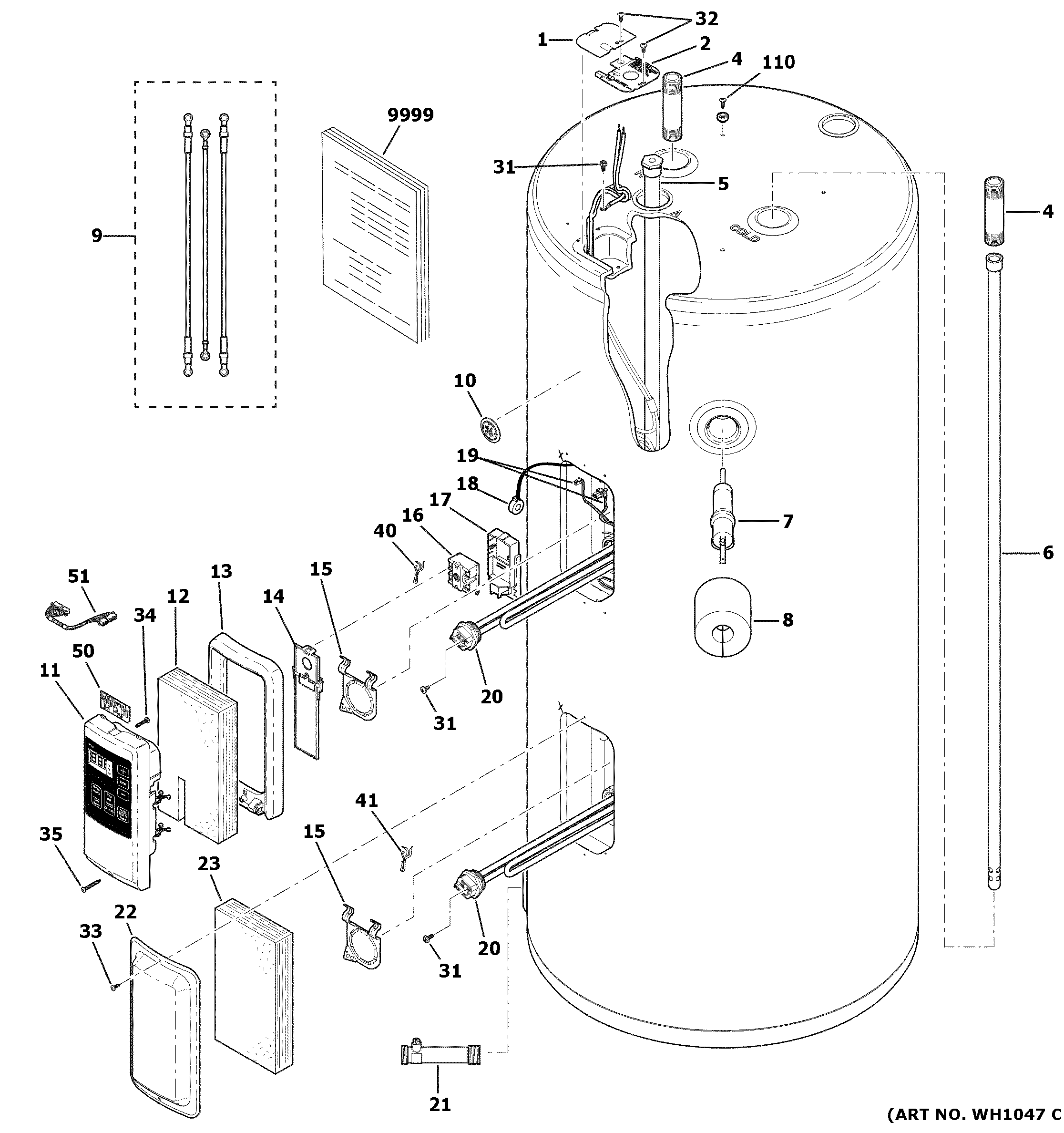

GE50S10BMM01 WATER HEATER ASSEMBLY

Products

Position	Product
1	J-BOX ACCESS COVER
2	FIXED J-BOX COVER
4	WATER I/O EXTENSION PIPE
5	WS02X22961 GE 40" Sensing Anode Rod
6	Dip Tube
7	T-P VALVE
8	T-P INSULATION
9	WS19X22741 GE Service Wire Kit
10	WR04X29994 GE Refrigerator Badge
11	CONTROL ASSEMBLY
12	INSULATION UEELT
13	CONTROL BEZEL
14	BARRIER DIELECTRIC LE
15	CLIP SPRING THERMOSTAT
16	TCO 180F
17	TCO BRACKET
18	CURRENT SENSOR, TOROID
19	TANK SENSOR SPRING CLIP
20	WS51X23622 GE Heating Element with Gasket
21	WS06X21924 GE Drain Valve
22	WS51X21912 GE Washer Small Metal Element Cover
23	WS04X21915 GE Insulation Lever
31	SCR 10-32 GX HXWP 1/2 S ZN GRN
32	SCR 10-32 GX PNP 1/2 S ZN
33	SCR 8-32 GX PNP 3/8 S ZN
34	SCR8-18 PL PNP7/8S
35	SCR 8-32 GX PNP 1.25S ZN
40	T2 SENSOR TANK UPPER
41	T1 SENSOR TANK LOWER
50	WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions
51	WIFI BOARD WIRE HARNESS
110	WASHER SHOULDER
9999	PM MINI MANUAL AND WIRING
