GEC9858EQ1 02 – CABINET

GEC9858EQ1 02 – CABINET

Written by

in

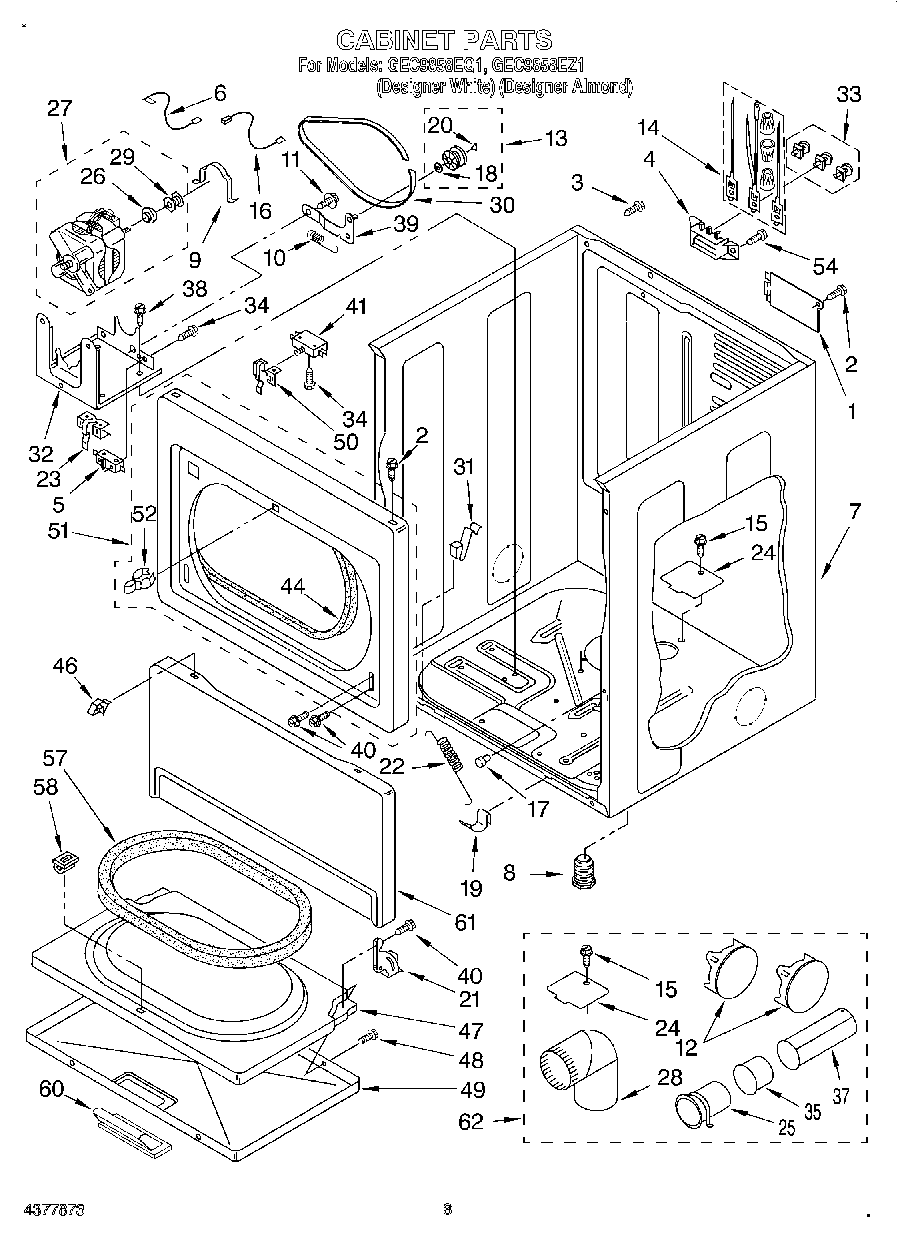

GEC9858EQ1 02 – CABINET

Products

PositionProduct
1Cover, Terminal Block
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5279782 Whirlpool Lid Switch
63398948 Whirlpool Wire
7Cabinet (White)
7Cabinet (Almond)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WP488729 Whirlpool Refrigerator Door Screw
16Wire, Belt Switch
17693152 Whirlpool Bumper
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WP3387559 Whirlpool Door Hinge
21WP3387560 Whirlpool Door Hinge
22WP3387565 Whirlpool Door Spring
23WP8066120 Whirlpool Lever Assembly
24WPW10354249 Whirlpool Cover
25WP8563747 Whirlpool Exhaust Pipe
26WP3393657 Whirlpool Belt Retainer
27279787 Whirlpool Dryer Drive Motor
28WPW10416072 Whirlpool Elbow
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31Clip, Lint Duct
32WP3387118 Whirlpool Base Assembly
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WP98129 Whirlpool Screw
35WPW10331278 Whirlpool Exhaust Pipe
37WP8563749 Whirlpool Exhaust Pipe
38SCREW
39W10837240 Whirlpool Dryer Idler Pulley
40WP308685 Whirlpool Microwave Screw
41W10820036 Whirlpool Door Switch Kit
44WP3387242 Whirlpool Seal
46WP3388229 Whirlpool Dryer Spring Clip
47Door, Rear
48WP694091 Whirlpool Screw
49Door, Front (Almond)
49Door, Front
50WP691581 Whirlpool Actuator
51Upper Front Panel (Almond)
51PANEL, FRONT (WHITE)
57W10823582 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
60Handle, Door (Almond)
60WP348721 Whirlpool Handle
61WPL 697216
61WP3406797 Whirlpool Toe Panel
62350930 Whirlpool White Spray Paint
62W10470674 Whirlpool Dryer Side Vent Exhaust Kit
62350938 Whirlpool Spray Gun
62350956 Whirlpool Spray Assembly
6272017 Whirlpool Appliance Touch-Up Paint White
62Almond (Uncut)
62799344 Whirlpool Refrigerator Paint
62WP72107 Whirlpool Touchup
