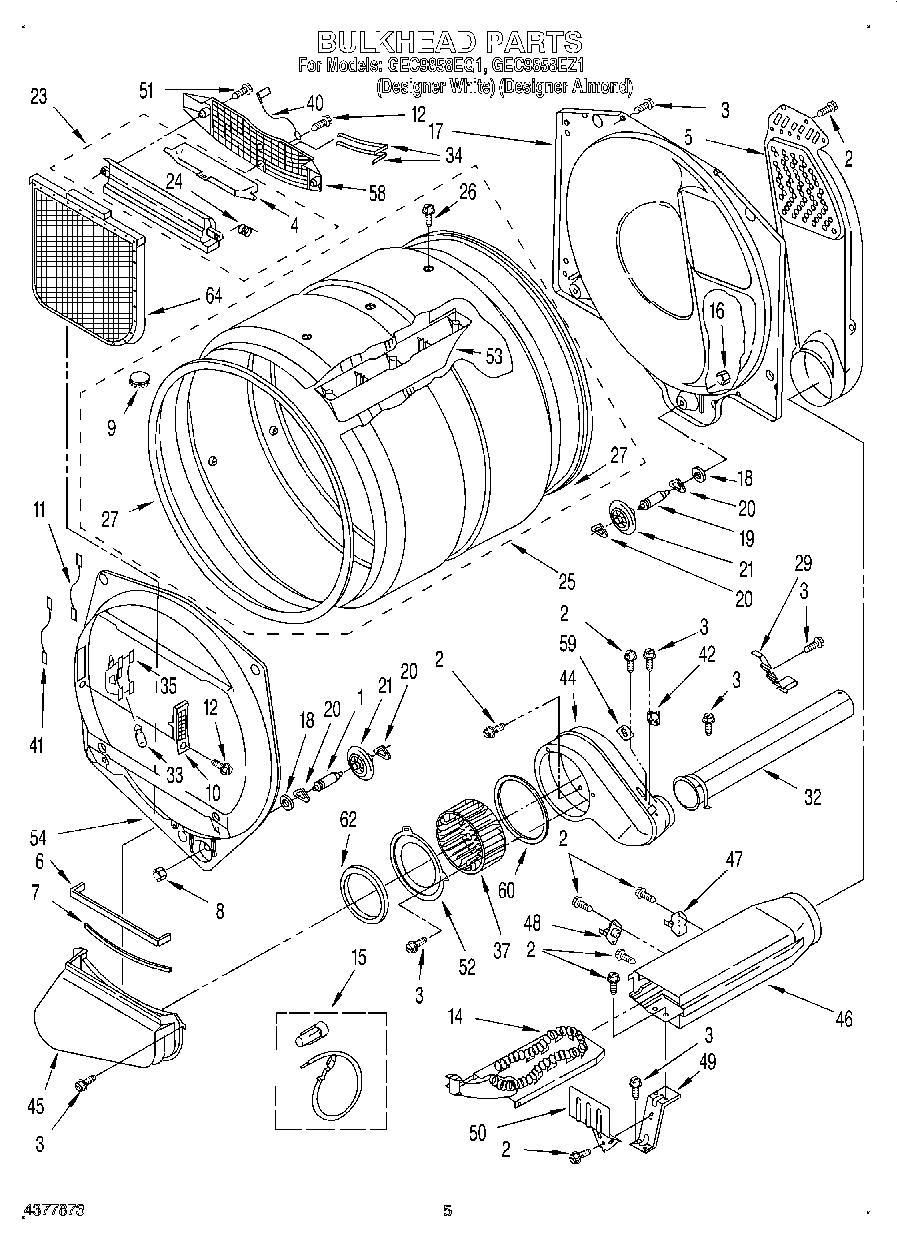

GEC9858EQ1 03 – BULKHEAD

Products

Position	Product
1	SHAFT
2	WP90767 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	W11222846 Whirlpool Door
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	8066086 Whirlpool Plug
10	Lens, Light
11	Wire, Jumper (Brown)
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	W11129408 Whirlpool Out Housing
24	WP3394986 Whirlpool Spring
25	W10545924 Whirlpool Drum Assembly
26	Screw
27	280114 Whirlpool Dryer Drum Seal
29	WP3395536 Whirlpool Clip Assembly
32	279936 Whirlpool Exhaust Pipe
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	Bracket, Lampholder
37	WP697772 Whirlpool Dryer Blower Wheel
40	Ground-Sensor
41	Wire, Jumper (Black)
42	WP3387134 Whirlpool Dryer Cycling Thermostat
44	WP8544363 Whirlpool Housing
45	Lint Duct Assembly
46	W10802681 Whirlpool Box Assembly
47	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48	WP3390291 Whirlpool High Limit Thermostat
49	Bracket, Heater
50	Shield, Heat
51	WP3387230 Whirlpool Screw
52	279780 Whirlpool Plate Cover
53	WPW10113136 Whirlpool Drum Baffle
54	Bulkhead, Front
58	Grill, Outlet
59	WP3390719 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
62	WP8566209 Whirlpool Seal
64	W10120998 Whirlpool Dryer Lint Screen Filter
