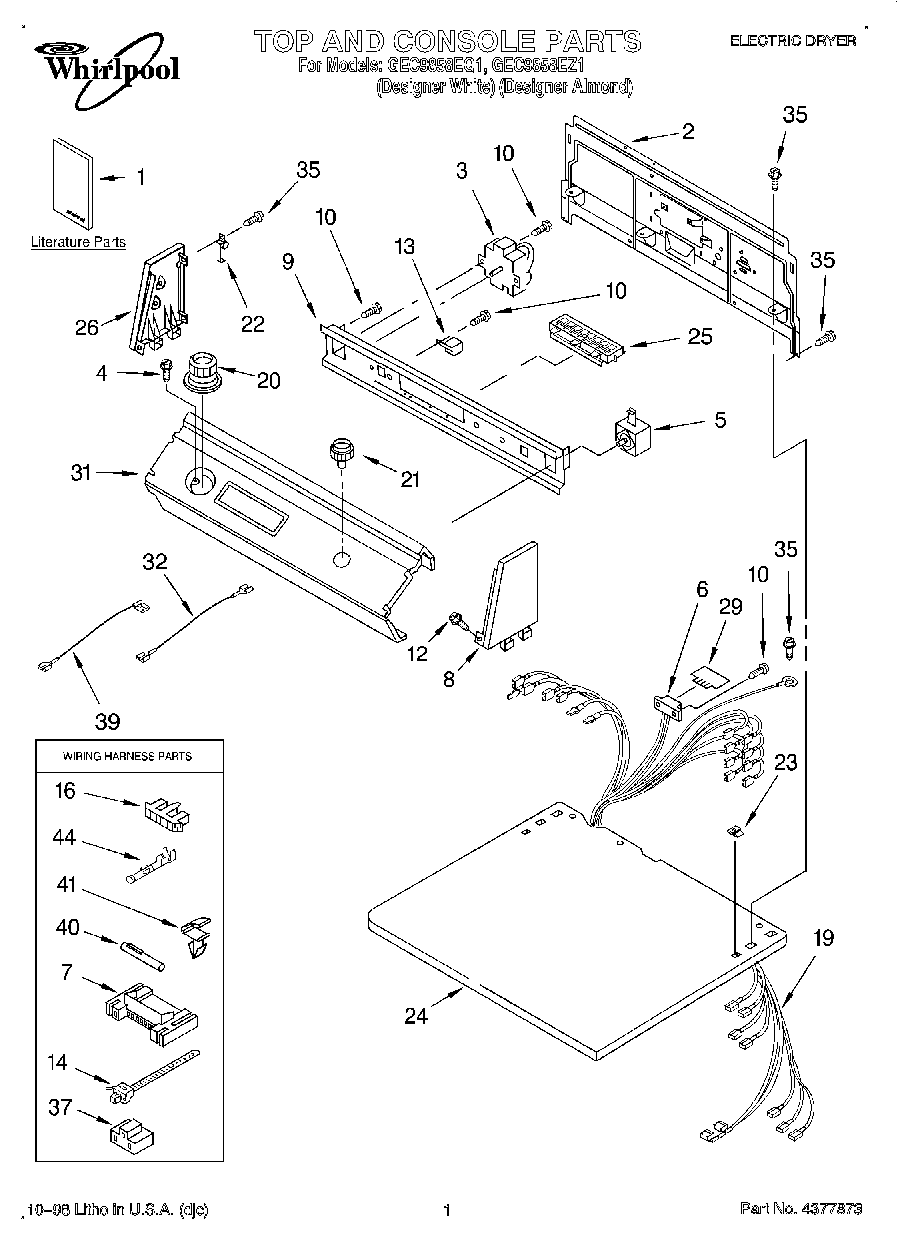

GEC9858EZ1 01 – TOP AND CONSOLE

Products

Position	Product
	Guide, Use & Care
	Dryer
	Literature Parts (Instructions Installation)
	Label, Wiring Diagram
1	LITERATURE PARTS
2	Panel, Rear Console
3	WP3976570 Whirlpool Timer
4	3400859 Whirlpool Screw
5	WP3398094 Whirlpool Push To Start Switch
6	3391885 Whirlpool Connector
7	3395683 Whirlpool Connector
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
12	WP388326 Whirlpool Screw
13	WP694419 Whirlpool Buzzer Adjuster
14	WP3391018 Whirlpool Wire Tie
16	Connector, Timer
19	Harness, Electric
20	WP3957752 Whirlpool Knob
20	3957753 Whirlpool Knob
21	WP3957800 Whirlpool Knob
22	Hinge, Console (2)
23	WP357213 Whirlpool Hinge Stopper
24	Top (Almond)
24	Top (White)
25	Switch, Clean Touch (White)
25	Switch, Clean-Touch (Almond)
26	Cap, End (L.H.) (Almond)
26	Cap, End (L.H.)
29	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
31	Panel, Control (Almond)
31	Panel, Control (White)
32	Wire, Jumper (Yellow)
32	Wire, Jumper (Black)
35	WP488729 Whirlpool Refrigerator Door Screw
37	3401144 Whirlpool Connector
39	Wire, Jumper (White)
40	Receptacle
41	WP3394427 Whirlpool Clip
44	WP94614 Whirlpool Terminal
