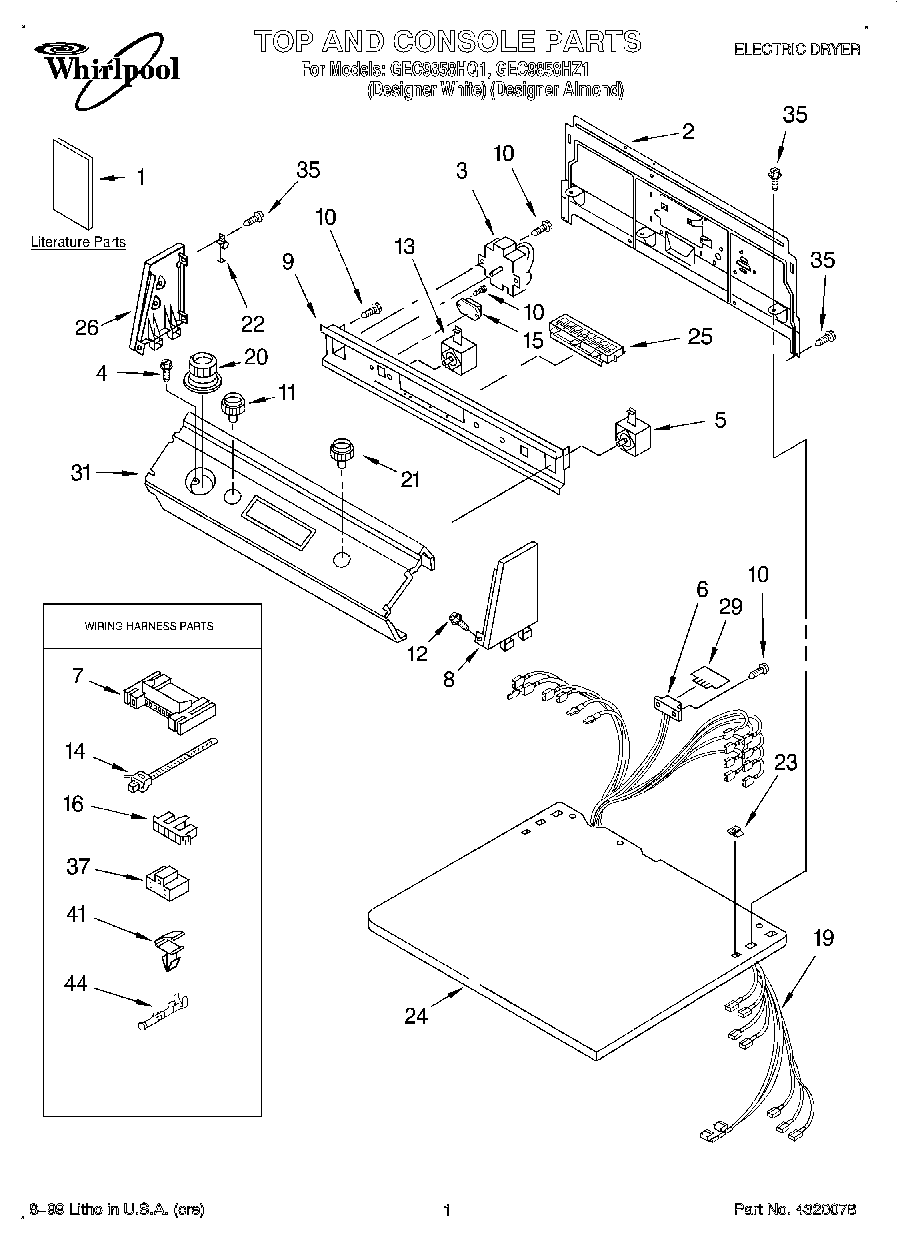

GEC9858HZ1 01 – TOP AND CONSOLEadmin2025-04-26T12:01:29+00:00GEC9858HZ1 01 – TOP AND CONSOLE
Products
| Position | Product |
|---|
| 1 | Literature Parts (Instructions Installation) |
| 1 | Literature Parts (Guide, Use & Care) |
| 1 | Literature Parts (Label, Wiring Diagram) |
| 1 | Dryer |
| 2 | Panel, Rear Console |
| 3 | WP3406725 Whirlpool Timer |
| 4 | 3400859 Whirlpool Screw |
| 5 | WP3398094 Whirlpool Push To Start Switch |
| 6 | 3391885 Whirlpool Connector |
| 7 | 3395683 Whirlpool Connector |
| 8 | Cap, End (R.H.) (Almond) |
| 8 | Cap, End (R.H.) |
| 9 | Bracket, Control |
| 10 | WPW10139210 Whirlpool Screw |
| 11 | WP3957796 Whirlpool Knob |
| 11 | 3957797 Whirlpool Knob |
| 12 | WP388326 Whirlpool Screw |
| 13 | WP3398093 Whirlpool Buzzer Adjuster |
| 14 | WP3391018 Whirlpool Wire Tie |
| 15 | WP8566493 Whirlpool Relay |
| 16 | Connector, Timer |
| 19 | Harness, Electric |
| 20 | Timer Knob Assembly (Almond) |
| 20 | WP3957746 Whirlpool Knob Assembly |
| 21 | WP3957800 Whirlpool Knob |
| 22 | Hinge, Console (2) |
| 23 | WP357213 Whirlpool Hinge Stopper |
| 24 | Top (Almond) |
| 24 | Top (White) |
| 25 | Switch, Clean Touch (Almond) |
| 25 | Switch, Clean Touch (White) |
| 26 | Cap, End (L.H.) (Almond) |
| 26 | Cap, End (L.H.) |
| 29 | WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core |
| 31 | Panel, Control (White) |
| 31 | Panel, Control (Almond) |
| 35 | WP488729 Whirlpool Refrigerator Door Screw |
| 37 | 3401144 Whirlpool Connector |
| 41 | WP3394427 Whirlpool Clip |
| 44 | WP94614 Whirlpool Terminal |
