GEF3015XWC 07 – TOP/DRAWER

GEF3015XWC 07 – TOP/DRAWER

Written by

in

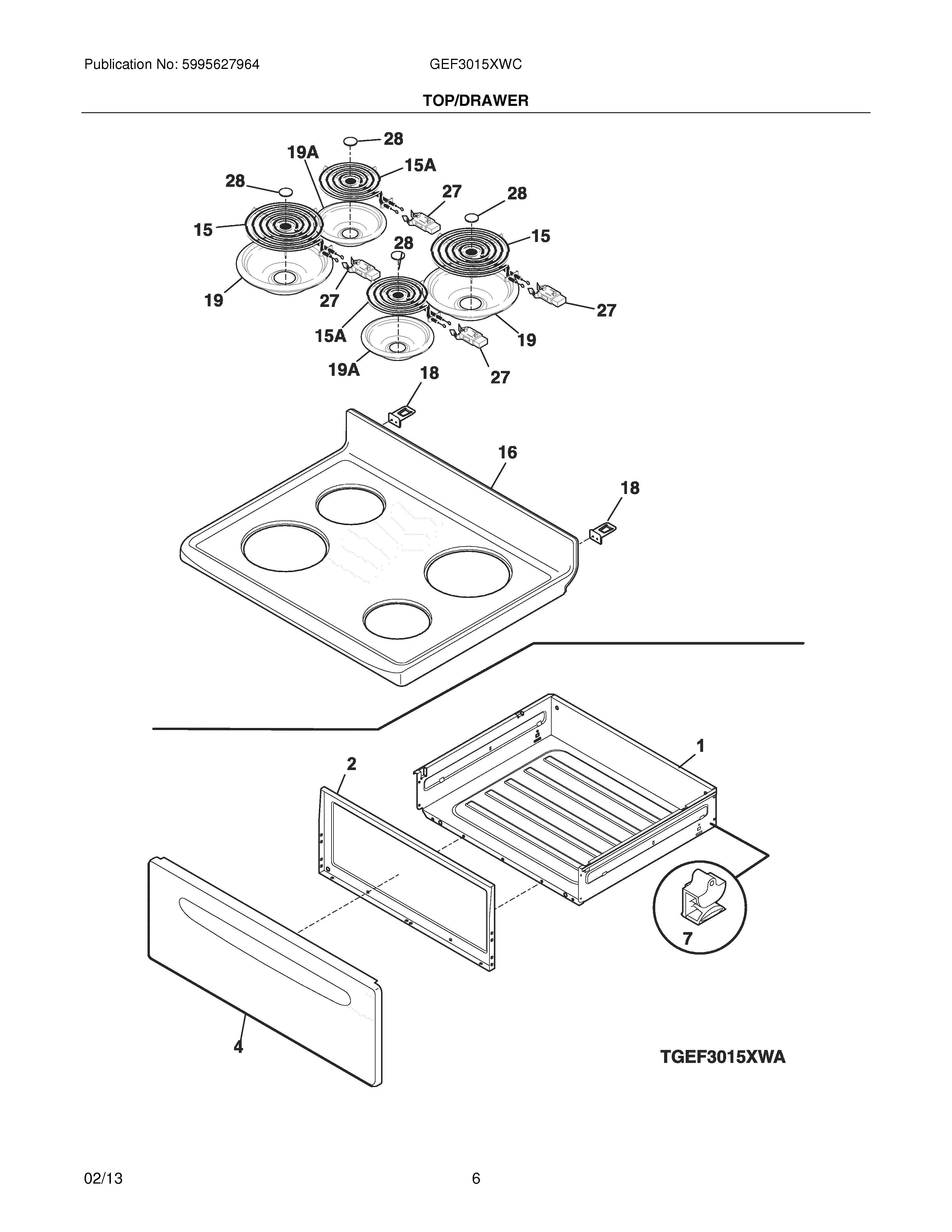

GEF3015XWC 07 – TOP/DRAWER

Products

PositionProduct
NI316580400 Frigidaire Oven Harness
NIClip,wiring harness ,green ,main top
NI5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
4WCI 316403501
7316407402 Frigidaire Range Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
16316202388 Frigidaire Oven Maintop
18316580800 Frigidaire Hinge Bracket
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
