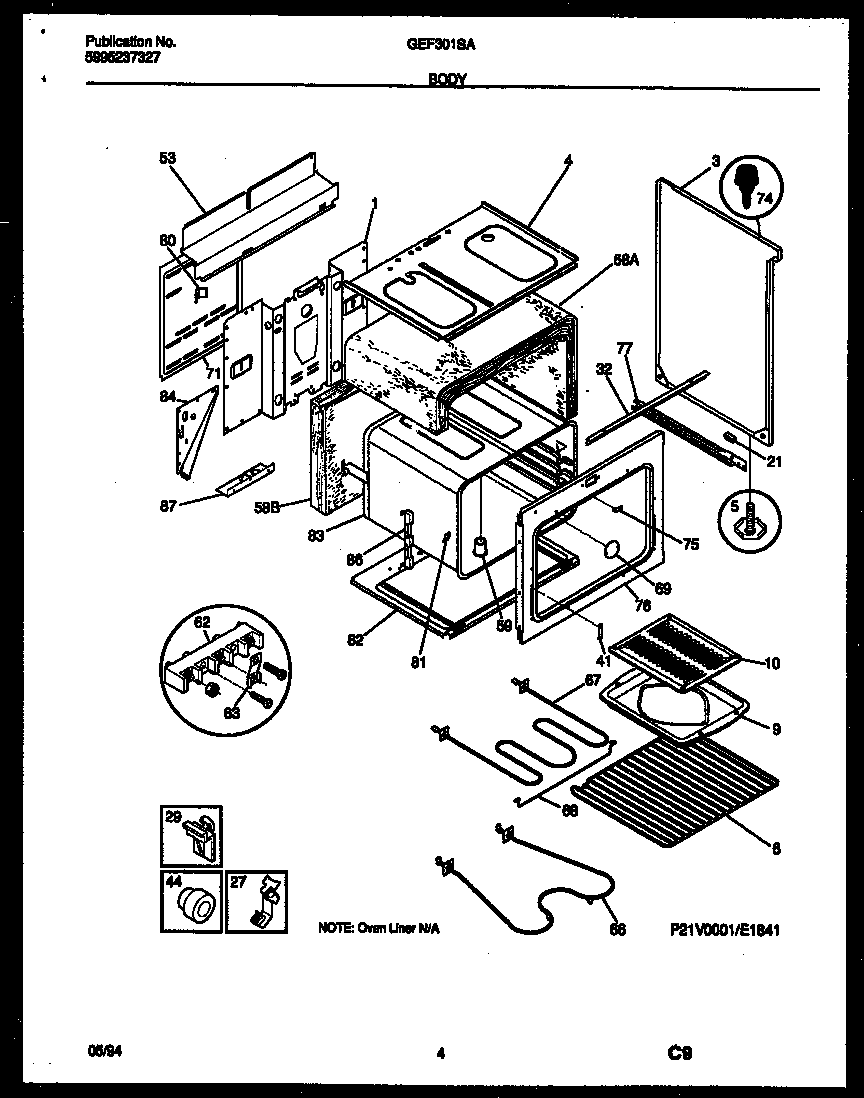

| 1 | PANEL-BACK |
| 3B | SIDE PANEL LH-ALMD |
| 3 | SIDE PANEL RH-ALMD |
| 4 | PANEL - SUBTOP |
| 5 | SCREW-LEVELING (4) |
| 5A | ANTI-TIP KIT, (NON-ILLUSTRATED) |
| 6 | 316067902 Frigidaire Oven Rack |
| 9 | WCI 5303292688 |
| 10 | WCI 3205234 |
| 21 | SPACER, DRAWER RAIL (2) |
| 27 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 29 | GUIDE-DRAWER FRNT (2) |
| 32 | WCI 5303207391 |
| 41 | WCI 3019063 |
| 44 | BUTTON-PLUG |
| 53 | WCI 3206095 |
| 58B | WCI 5303274967 |
| 58A | INSULATION - OVEN WRAP |
| 59 | WCI 08012541 |
| 62 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 63 | PLATE=GROUND STRAP |
| 66 | 5303051516 Frigidaire Broil Element |
| 67 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 68 | WCI 3205756 |
| 69 | WCI 3017576 |
| 71 | WIRE, COVER |
| 74 | BUMPER, COOKTOP (4) |
| 75 | WCI 3202082 |
| 76 | FRONT - OVEN |
| 77 | WCI 5308015746 |
| 77A | RAIL, DRAWER LH |
| 80 | WCI 3016281 |
| 81 | WCI 3201632 |
| 82 | WCI 3206275 |
| 83A | PLUG BUTTON (NON-ILLUSTRATED) |
| 83 | OVEN LINER |
| 84 | WCI 3017482 |
| 84A | WCI 3017481 |
| 86 | WCI 3201631 |
| 87 | WCI 3203574 |
