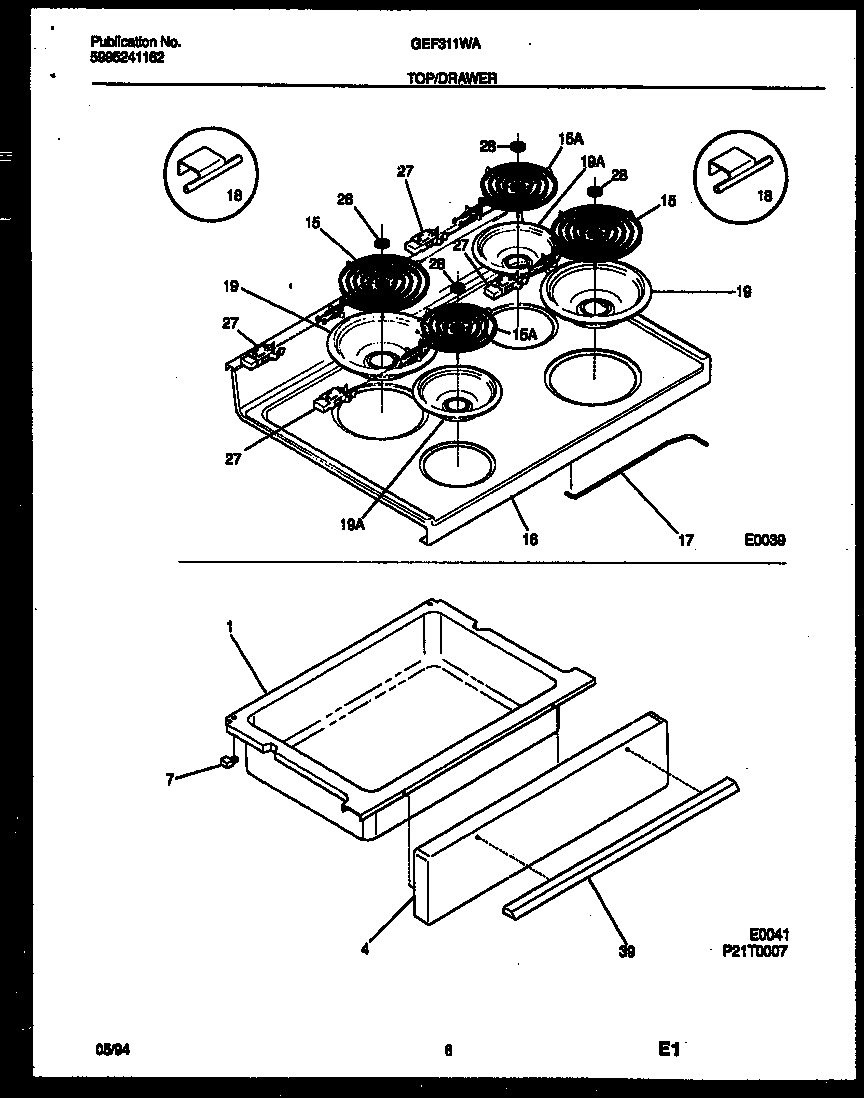

GEF311WADA 04 – TOP/DRAWER

GEF311WADA 04 – TOP/DRAWER

Written by

in

GEF311WADA 04 – TOP/DRAWER

Products

PositionProduct
1DRAWER
1ASCREW-SHOULDER
4WCI 5301325100
7GUIDE – DRAWER REAR (2)
155308011964 Frigidaire Surface Element P1
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16COOKTOP – ALMOND
17ROD – TOP SUPPORT LH
17AROD – TOP SUPPORT RH
18PIN, HINGE (2)
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
39WCI 316019504
