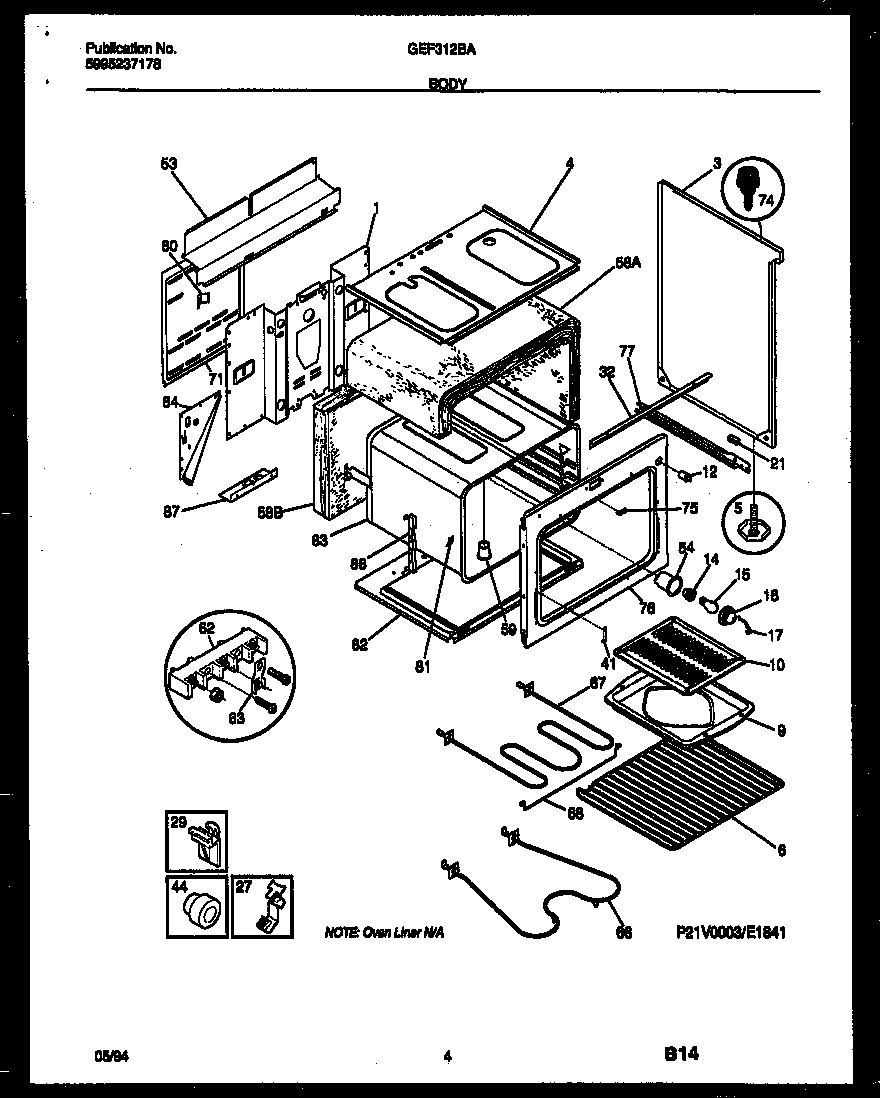

GEF312BADA 03 – BODY

Products

PositionProduct
1PANEL-BACK
3SIDE PANEL, RH WHITE
3ASIDE PANEL, LH WHITE
4PANEL – SUBTOP
5AANTI-TIP KIT, (NON-ILLUSTRATED)
5SCREW-LEVELING (4)
6316067902 Frigidaire Oven Rack
9WCI 5303292688
10WCI 3205234
12WCI 5301314211
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
21SPACER, DRAWER RAIL (2)
275303284616 Frigidaire Range Bulb Clip Thermostat
29GUIDE-DRAWER FRNT (2)
32WCI 5303207391
41WCI 3019063
53WCI 3206095
54WCI 5303271606
58AINSULATION – OVEN WRAP
58BWCI 5303274967
59WCI 08012541
625304409888 Frigidaire Oven Terminal Block with Hardware
62A316205500 Frigidaire Oven Nut
63PLATE=GROUND STRAP
665303051516 Frigidaire Broil Element
675303051519 Frigidaire Oven 2600W Bake Element
68WCI 3205756
71WIRE, COVER
74BUMPER, COOKTOP (4)
75WCI 3202082
76FRONT – OVEN
77ARAIL, DRAWER LH
77WCI 5308015746
80WCI 3016281
81WCI 3201632
82WCI 3206275
83OVEN LINER
83APLUG BUTTON (NON-ILLUSTRATED)
84WCI 3017482
84AWCI 3017481
86WCI 3201631
87WCI 3203574
