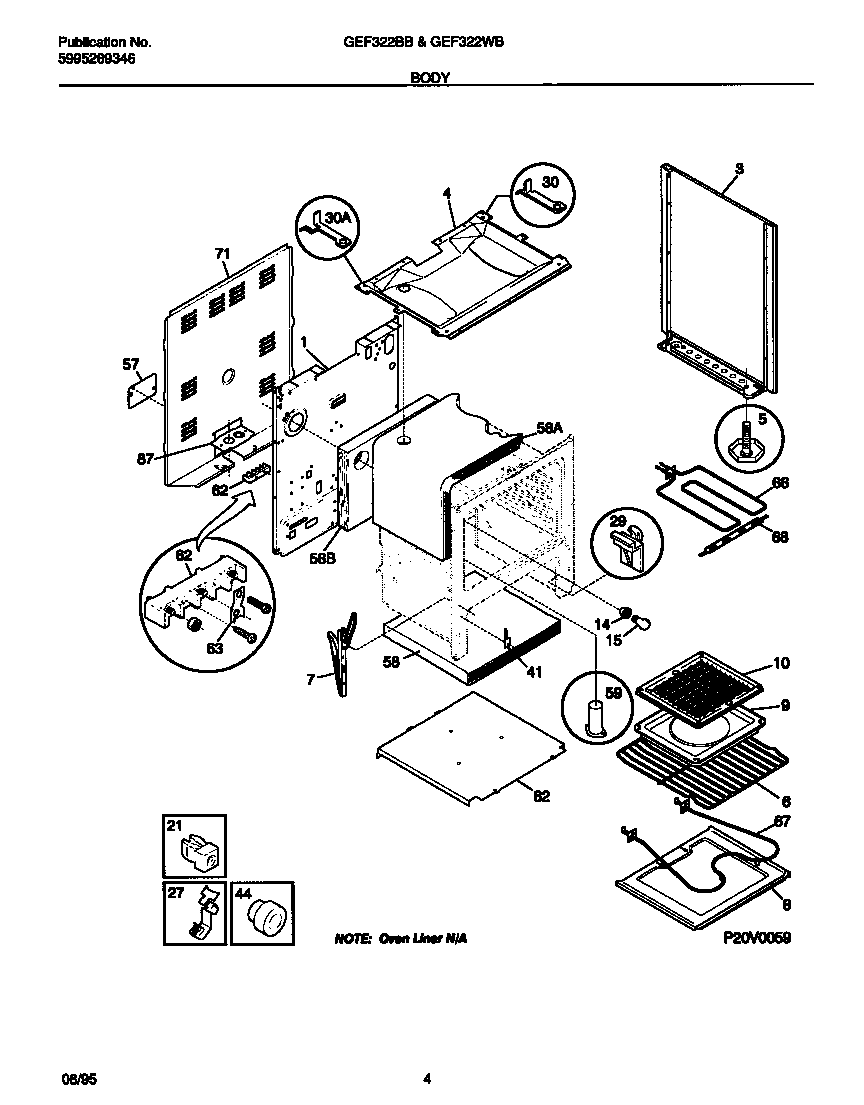

GEF322WBDB 03 – BODY

Products

PositionProduct
*67005WCI 5303281584
*67007COVER-OVEN FRONT
*67004316205500 Frigidaire Oven Nut
*670033203550 Frigidaire Oven Plug
1WCI 316080801
3WCI 316081006
3AWCI 316081007
4WCI 5303271756
5SCREW-LEVELING
5AWCI 3934058
5B316116000 Frigidaire Screw
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58316403803 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
