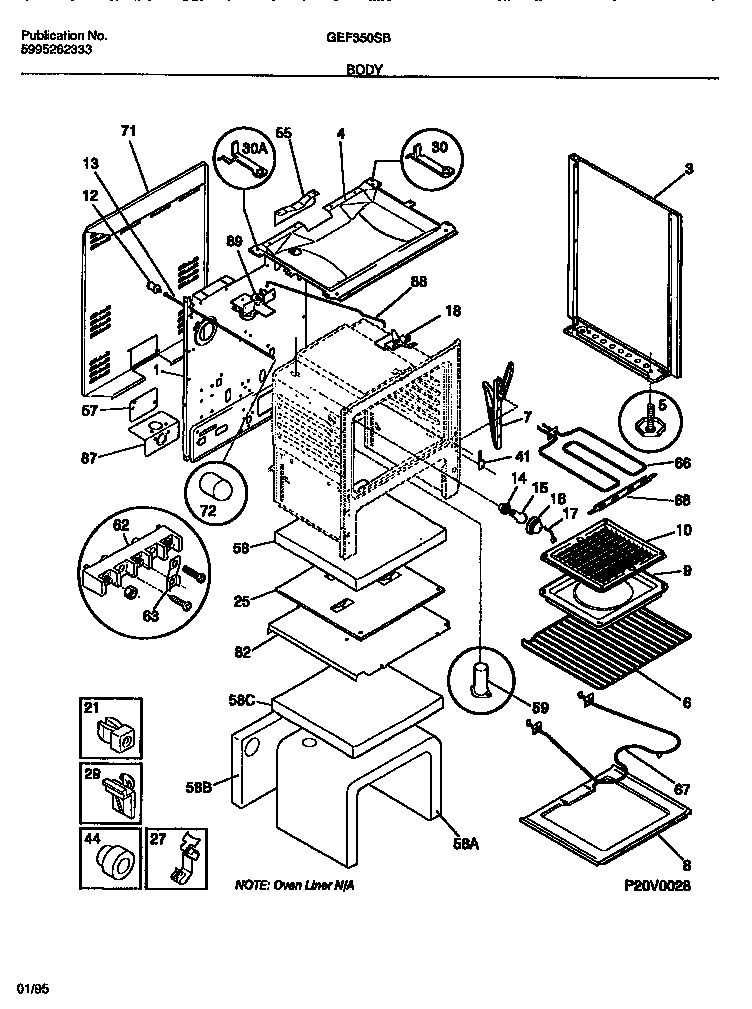

GEF350SBDA 03 – BODY

GEF350SBDA 03 – BODY

Written by

in

GEF350SBDA 03 – BODY

Products

PositionProduct
*21041FASTENER-EDGE MTG (NOT ILLUSTRATED)
*210423203550 Frigidaire Oven Plug
*21040WCI 316075400
*21043316205500 Frigidaire Oven Nut
1WCI 316029410
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081007
3WCI 316081006
4WCI 5303271756
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5WCI 3934058
5316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58316403803 Frigidaire Insulation
58CINSULATION, OVEN TOP
58BWCI 316054200
58AINSULATION, OVEN WRAPPER
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028100
