GEF354BAWA 03 – BODY

GEF354BAWA 03 – BODY

Written by

in

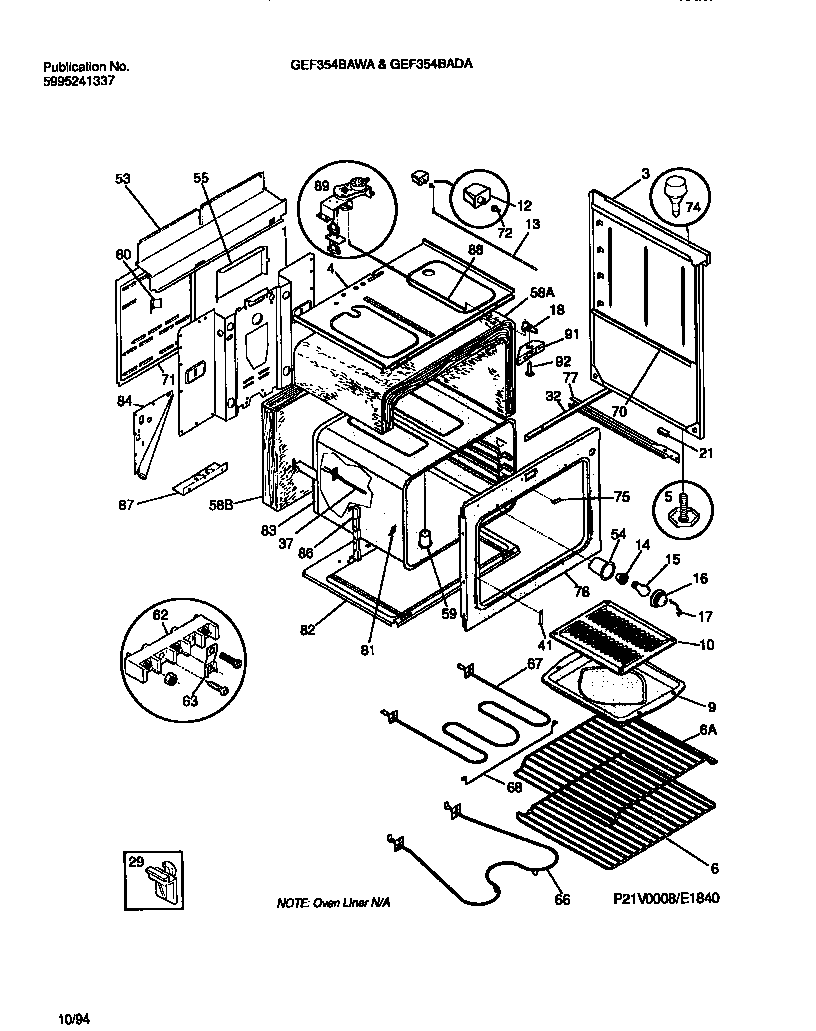

GEF354BAWA 03 – BODY

Products

PositionProduct
1PANEL-BACK
3SIDE PANEL, RH WHITE
3ASIDE PANEL, LH WHITE
4PANEL – SUBTOP
5SCREW-LEVELING (4)
5AANTI-TIP KIT, (NON-ILLUSTRATED)
6316067902 Frigidaire Oven Rack
6ARACK-OFFSET
9WCI 5303292688
10WCI 3205234
12SWITCH, DOOR
13WCI 08007445
14WCI 538011085
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
18LATCH-DOOR
21SPACER, DRAWER RAIL (2)
29GUIDE-DRAWER FRNT (2)
32WCI 5303207391
37316217002 Frigidaire Oven Temperature Probe
41WCI 3019063
53WCI 3206095
54WCI 3051511
55WCI 3051634
58BINSULATION
58AINSULATION, OVEN WRAP
59TUBE-OVEN VENT
62316205500 Frigidaire Oven Nut
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051516 Frigidaire Broil Element
675303051519 Frigidaire Oven 2600W Bake Element
68WCI 3205756
70RETAINER, INSULATION (2)
71WIRE, COVER
72WCI 08007444
74BUMPER, COOKTOP (4)
75WCI 3202082
76FRONT – OVEN
77WCI 5308015746
77ARAIL, DRAWER LH
80WCI 3016281
81WCI 3201632
82WCI 3206275
83PLUG BUTTON (NON-ILLUSTRATED)
83OVEN LINER
84AWCI 3017481
84WCI 3017482
86WCI 3201631
87WCI 3203574
88WCI 3051649
89WCI 5303269766
91HOUSING-DOOR LATCH
92AXLE – HINGE (2)
