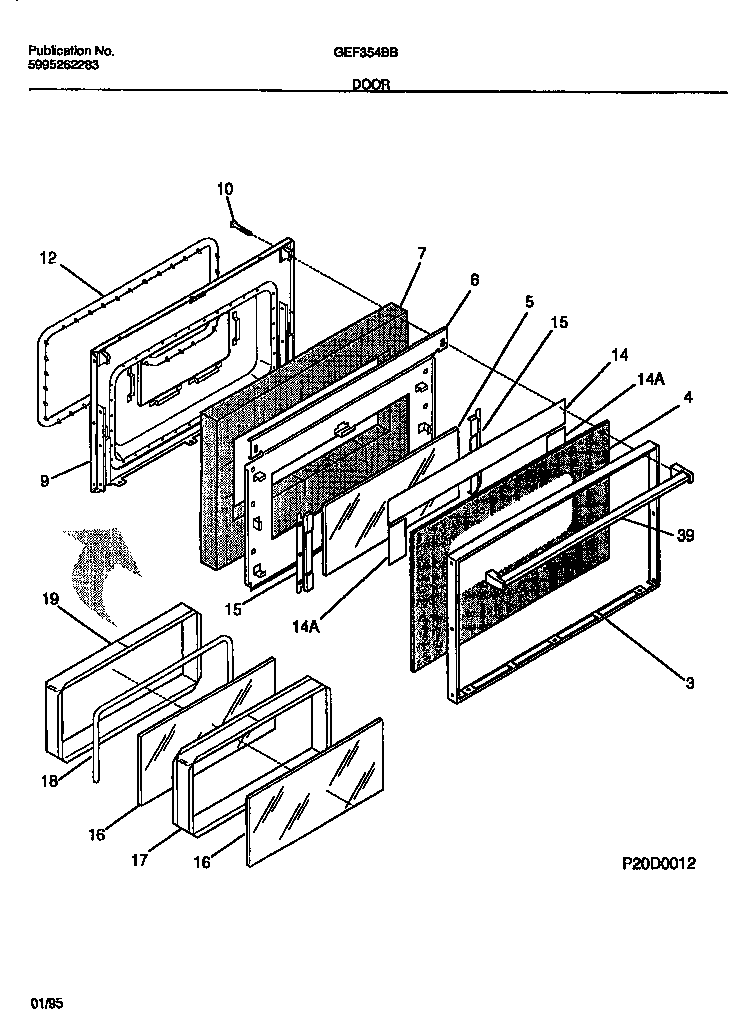

GEF354BBDA 05 – DOOR

Products

Position	Product
*09649	RIVET-POP, WARING-PLATE
*09650	WCI 316065300
*09651	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*09652	WCI 5303269859
*09653	5303300265 Frigidaire Oven Screw
*09654	5303271648 Frigidaire Oven Screw
3	WCI 316067802
4	GLASS-OVEN DOOR, BLACK, OUTER
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION
7	INSULATION-OVEN DOOR
9	WCI 316066603
10	WCI 5303280308
12	5303131601 Frigidaire Oven Seal
14A	5303208655 Frigidaire Reflector Assembly
14	REFLECTOR, ALUMINUM FOIL
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
18A	131243700 Frigidaire Screw
19	WCI 316067600
39	HANDLE
