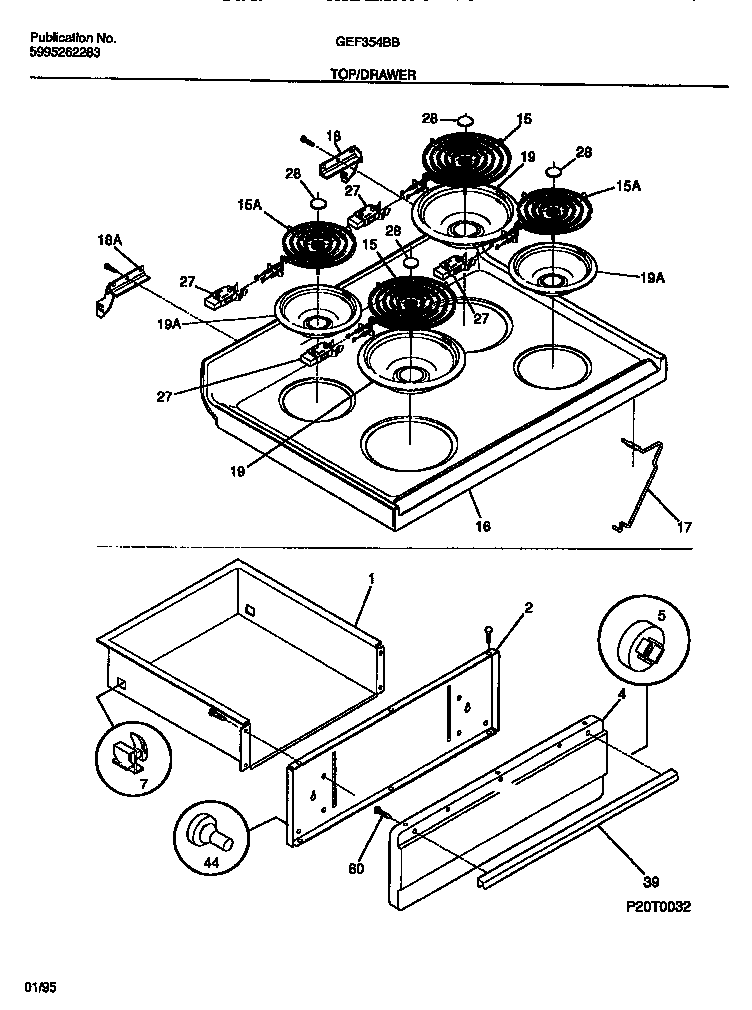

GEF354BBWA 04 – TOP/DRAWER

Written by

Products

Position	Product
*09648	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PANEL-BROILER, WHITE
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
15	316442301 Frigidaire Oven 8 Coil Element 2600W
16	316202388 Frigidaire Oven Maintop
17	316057601 Frigidaire Oven Rod
18B	131243700 Frigidaire Screw
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19A	A316222201 Frigidaire Oven Drip Bowl Assembly
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
39	HANDLE-DRAWER, WHITE
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
