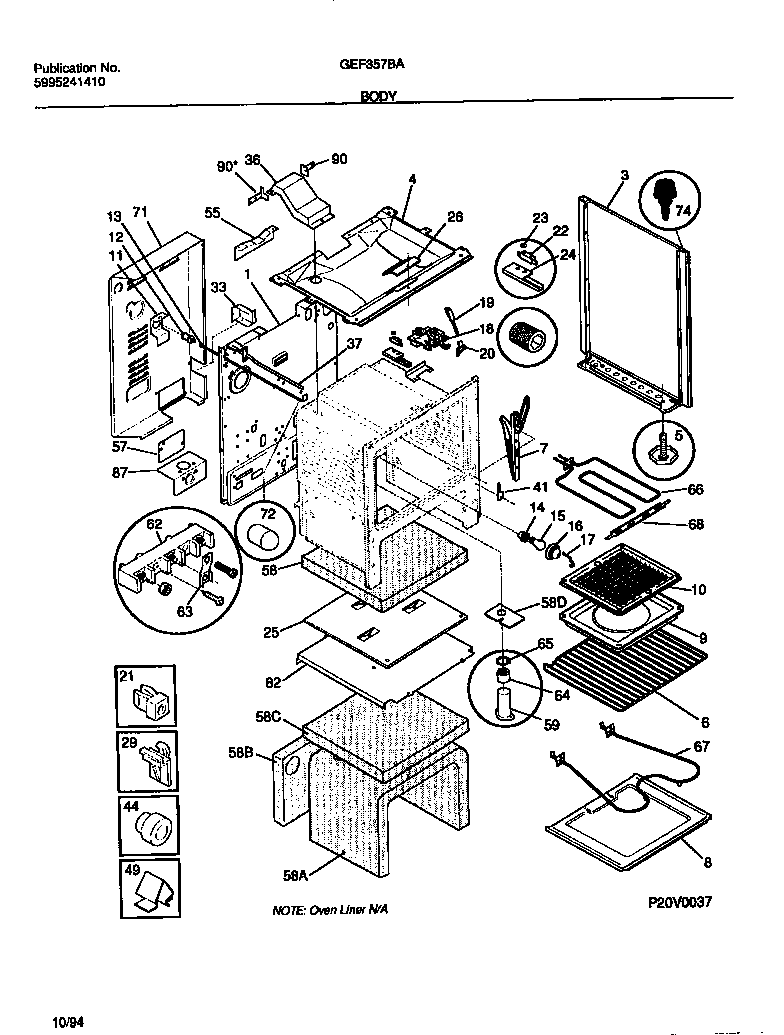

GEF357BABA 03 – BODY

GEF357BABA 03 – BODY

Written by

in

GEF357BABA 03 – BODY

Products

PositionProduct
*84726WCI 08067961
*847253203550 Frigidaire Oven Plug
*847275303321321 Frigidaire Refrigerator Black Touch-Up Paint
1WCI 3203082
3WCI 5303269544
3AWCI 5303269546
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3CFASTENER-EDGE MTG (NOT ILLUSTRATED)
4WCI 5303271658
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AANTI-TIP KIT (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
11WCI 5303131289
12SWITCH-OVEN LITE DOOR
13WCI 5303269501
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18ASHIELD-LATCH (NON-ILLUSTRATED)
18WCI 5303015361
19WCI 5303131357
20WCI 3203218
20AWCI 08013188
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22ASTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
36FLUE BOX
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
55COVER-FLUE
57COVER-ACCESS
58DWCI 3015337
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
58CINSULATION, OVEN TOP
58316403803 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
59TRIM MAIN TOP LH
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
63AWCI 5303306586
64WCI 08067810
65WCI 08010606
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
74BUMPER, COOKTOP (4)
82SHIELD, OVEN BOTTOM
87WCI 5303206618
90AWCI 3051242
90WCI 3051243
