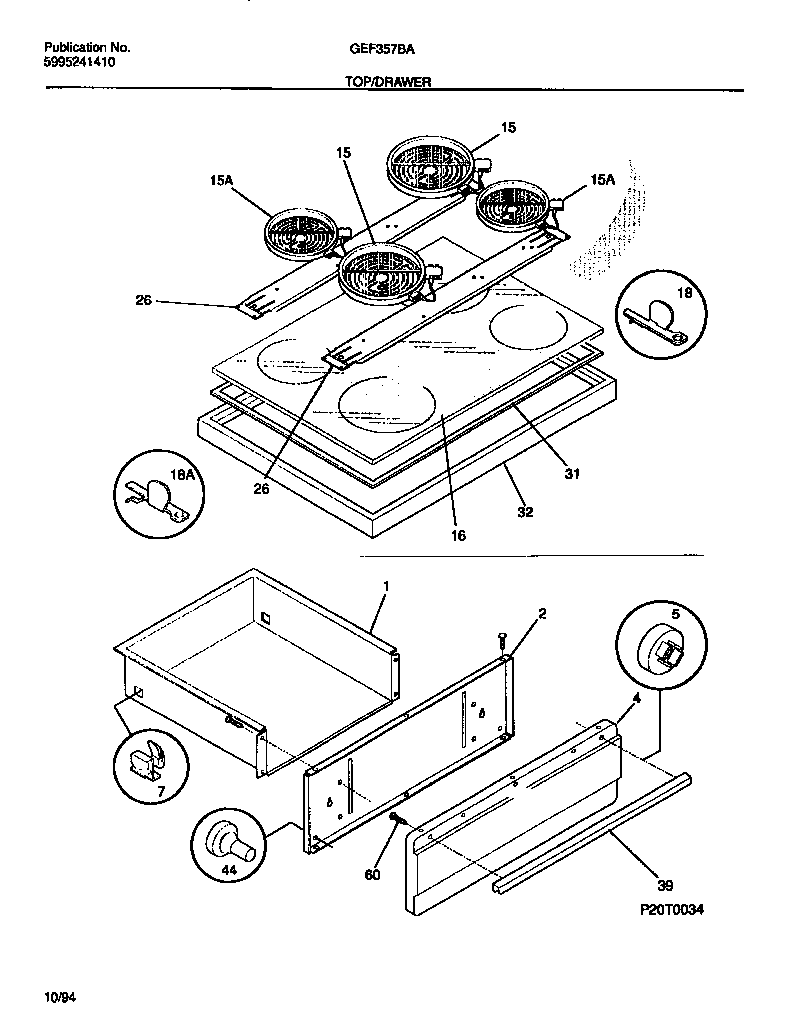

GEF357BABA 04 – TOP/DRAWER

Products

Position	Product
*84730	WCI 5309951550
*84729	WCI 5303281584
*84728	WCI 316001705
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL, DRWR., BLACK
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15B	WCI 5303305635
15A	SMALL ELEMENT ASSY-INCLUDES ELEMENT-LIMIT SWITCH
15C	WCI 5303305636
15	318198834 Frigidaire Oven Element
16	WCI 316035800
18A	WCI 5303291055
18B	131243700 Frigidaire Screw
18	WCI 5303291056
26	CHANNEL-TOP ELEMENT MTG
31	SEAL-GLASS COOKTOP
32	TRIM-MAIN TOP
39	WCI 316019504
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
