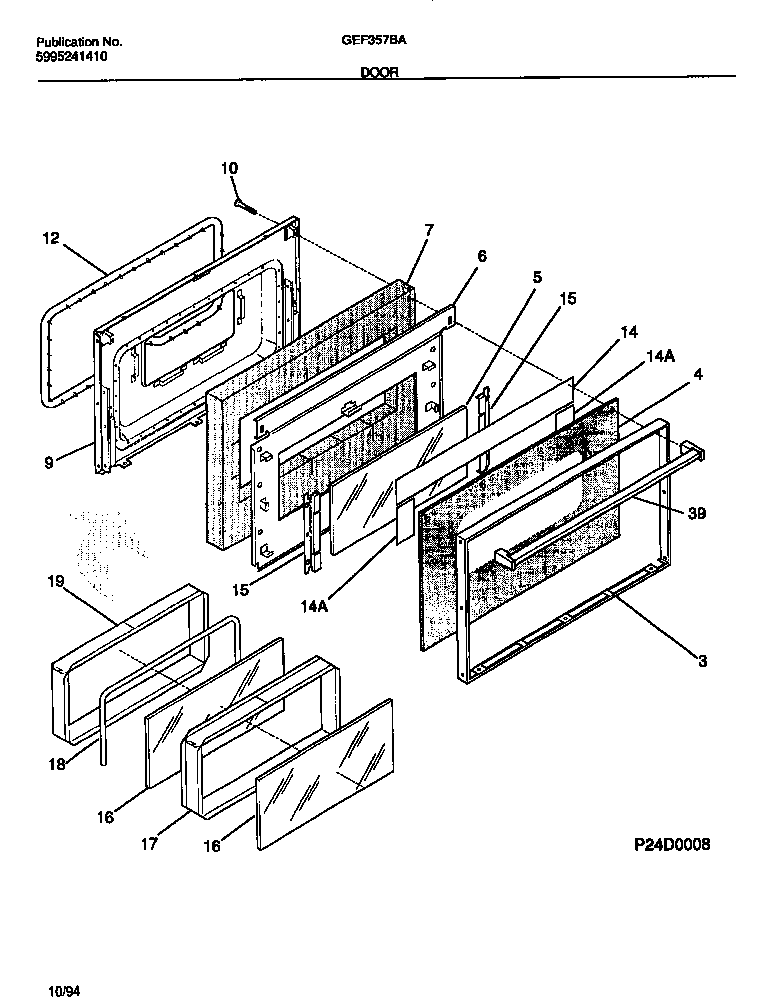

GEF357BABA 05 – DOOR

Written by

Products

Position	Product
3A	WCI 5303269859
3	WCI 5303209518
4	WCI 316019706
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION
7	INSULATION-OVEN DOOR
9B	5303271648 Frigidaire Oven Screw
9A	5303300265 Frigidaire Oven Screw
9	WCI 5303209515
10	WCI 5303280308
12	5303131601 Frigidaire Oven Seal
14	REFLECTOR, ALUMINUM FOIL
14A	5303208655 Frigidaire Reflector Assembly
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
19A	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
39	WCI 5303285070
