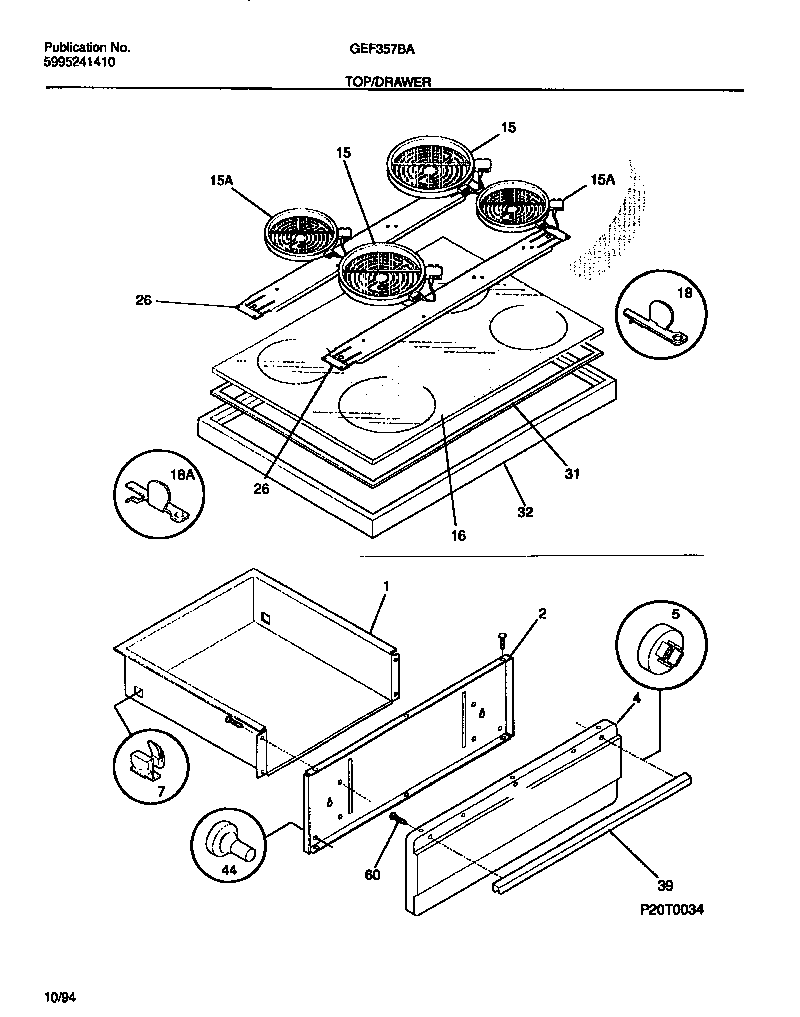

GEF357BABB 04 – TOP/DRAWER
Written by
in
GEF357BABB 04 – TOP/DRAWER
Products
Position
Product
*84730
WCI 5309951550
*84729
WCI 5303281584
*84728
WCI 316001705
1
DRAWER-UTILITY
2
SHIELD-PNL
4A
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4
WCI 316056207
5
FSTNR, SPACER (2)
7
3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A
SMALL ELEMENT ASSY-INCLUDES ELEMENT-LIMIT SWITCH
15B
WCI 5303305635
15C
WCI 5303305636
15
318198834 Frigidaire Oven Element
16
WCI 316035800
18A
WCI 5303291055
18B
131243700 Frigidaire Screw
18
WCI 5303291056
26
CHANNEL-TOP ELEMENT MTG
31
SEAL-GLASS COOKTOP
32
TRIM-MAIN TOP
39
WCI 316019504
44
3131903 Frigidaire Door/Drawer Bumper
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
←
