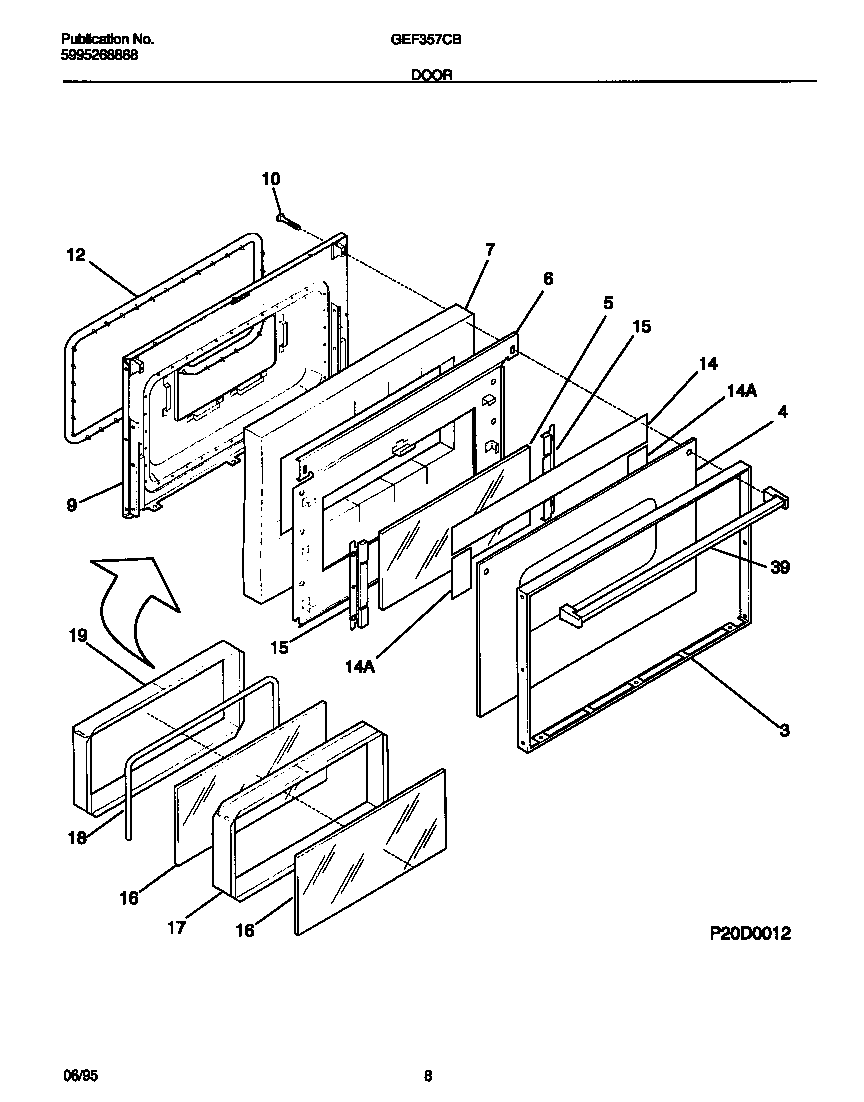

GEF357CBSB 05 – DOOR

Products

Position	Product
*80131	RIVET-POP, WARING-PLATE
*80136	WCI 5303280311
*80138	131243700 Frigidaire Screw
*80135	5303271648 Frigidaire Oven Screw
*80137	5303285179 Frigidaire Oven Door Screw
*80134	5303300265 Frigidaire Oven Screw
*80133	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*80132	WCI 316065300
3	WCI 316067804
4	WCI 316019719
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION, WHITE
7	WCI 316076400
9	WCI 316066603
10	WCI 5303280308
12	5303131601 Frigidaire Oven Seal
14	ALUM FOIL-B/G GLASS
14	5303208655 Frigidaire Reflector Assembly
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	WCI 316060300
