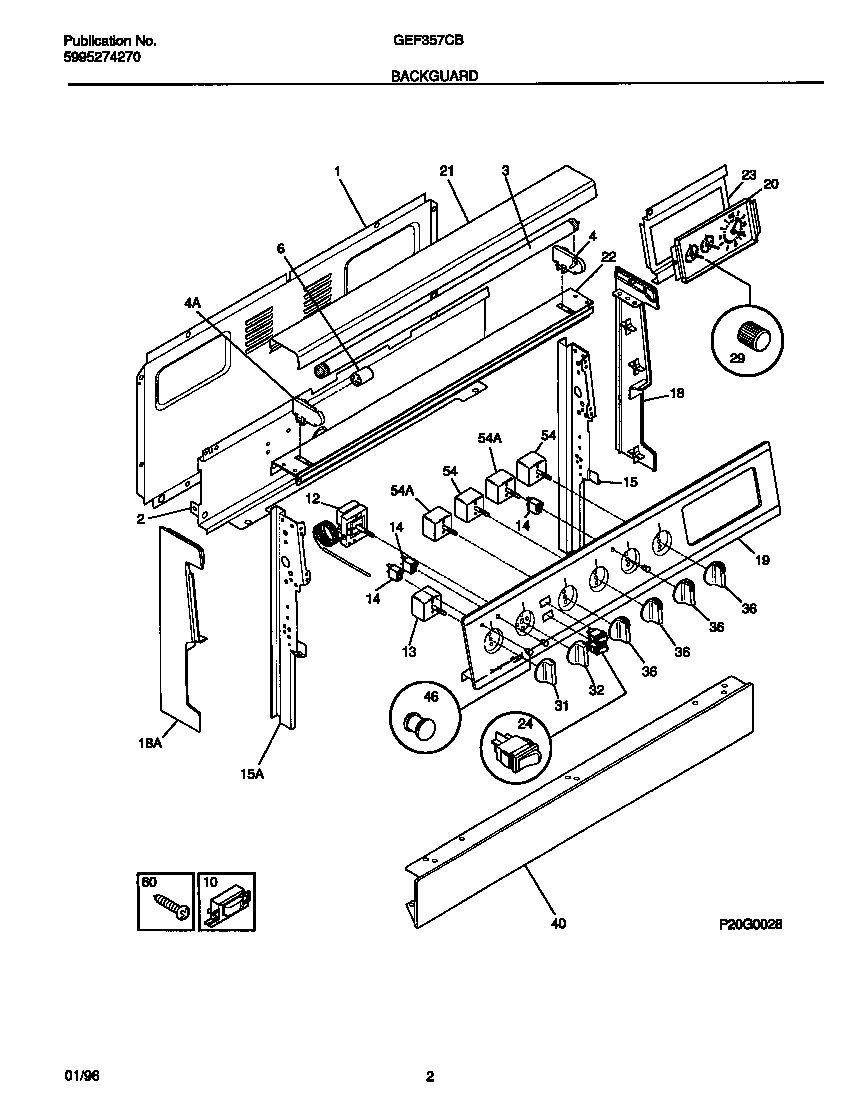

GEF357CBTC 02 – BACKGUARD

GEF357CBTC 02 – BACKGUARD

Written by

in

GEF357CBTC 02 – BACKGUARD

Products

PositionProduct
*56162WCI 5303288574
*56161WCI 5303281584
*56160SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-LAMP, LH
4RECEPTACLE-LAMP, RH
6STARTER-LAMP
10WCI 5303051115
12THERMOSTAT-OVEN
13WCI 316023200
14ALIGHT/LAMP, IND, HOT SURFACE
14B316022503 Frigidaire Light Lamp P-1
15WCI 316023111
15WCI 316023110
18WCI 316015409
18WCI 316015408
19WCI 316014735
20WCI 316017417
21WCI 316015304
22WCI 316015500
23WCI 316015005
24SWITCH-ROCKER,OVEN LIGHT ,ALMOND
29WCI 316029004
31WCI 316071430
32WCI 316071429
36WCI 316071424
40WCI 316064015
46AWCI 316040200
46BLENS-LIGHT/LAMP, INDICATOR
545303935086 Frigidaire Oven Top Burner Switch Kit
54316436001 Frigidaire Oven Range Infinite Burner Switch
60316021105 Frigidaire Oven Screw
