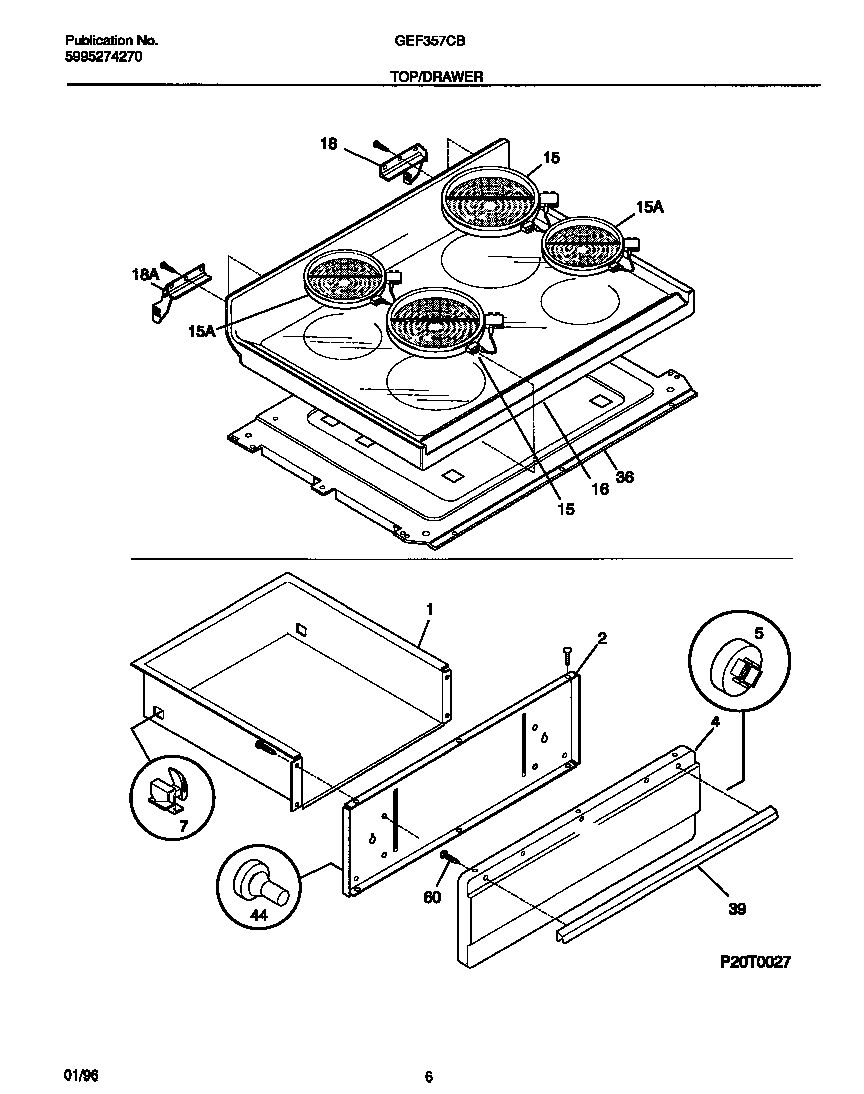

GEF357CBTC 04 – TOP/DRAWER

GEF357CBTC 04 – TOP/DRAWER

Written by

in

GEF357CBTC 04 – TOP/DRAWER

Products

PositionProduct
*56169RIVET-POP, WARING-PLATE
*56167SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
*56168WCI 316001732
*56170WCI 5303281584
*56171131243700 Frigidaire Screw
*56172WCI 5303288574
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198834 Frigidaire Oven Element
15318198817 Frigidaire Oven Element
16WCI 316035501
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
36AWCI 316033610
36BWCI 316023301
36CWCI 316041001
39WCI 316019507
443131903 Frigidaire Door/Drawer Bumper
