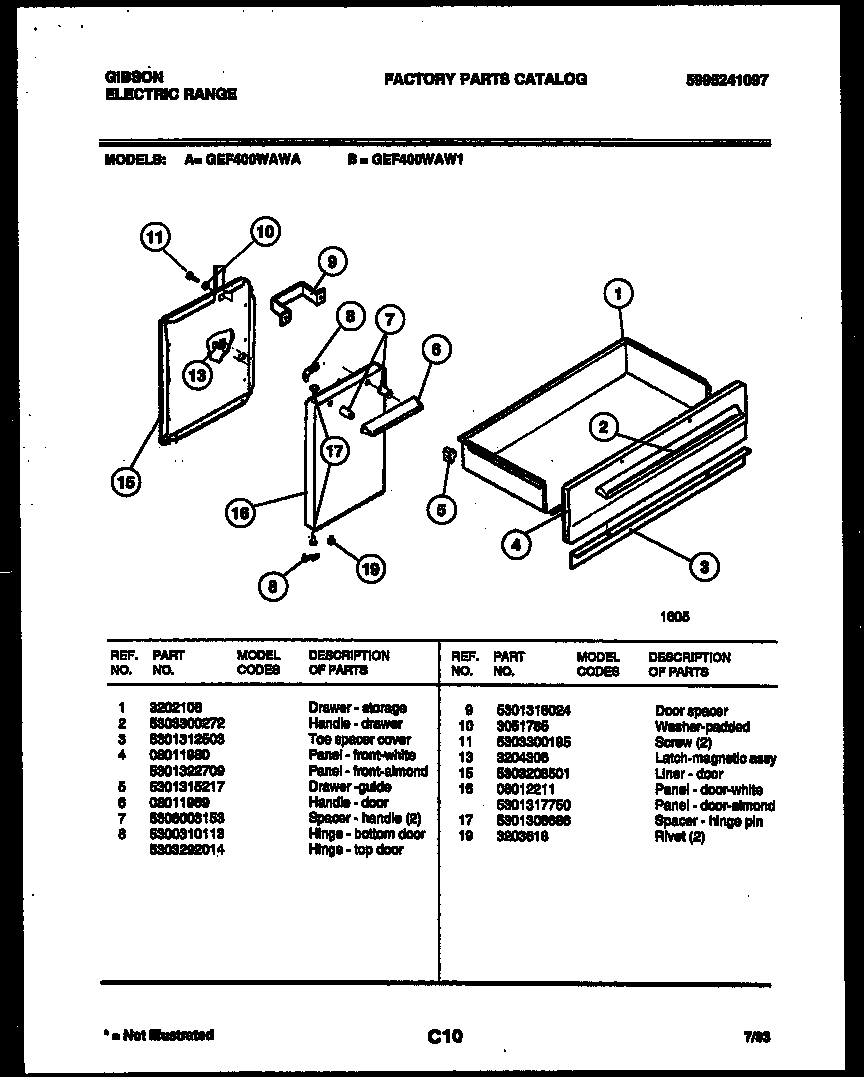

GEF400WAWA 03 – DRAWER PARTS

Products

Position	Product
1	DRAWER-UTILITY
2	WCI 5303300272
3	COVER-TOE SPACE
4	PANEL – DRAWER (ALMD)
4	PANEL-DRAWER, WHITE
5	GUIDE (2)
6	HANDLE
7	SPACER (2)
8	WCI 5300310113
8	HINGE-BOTTOM
9	SPACER
10	WASHER-PADDED (3) (NON-ILLUSTRATED)
11	5300803416 Frigidaire Dishwasher Screw
13	LATCH-MAGNETIC
15	LINER
16	PANEL COMPLETE (ALMOND)
16	PANEL COMPLETE (WHITE)
17	SPACER-HINGE PIN (2)
19	RIVET-POP, WARING-PLATE
