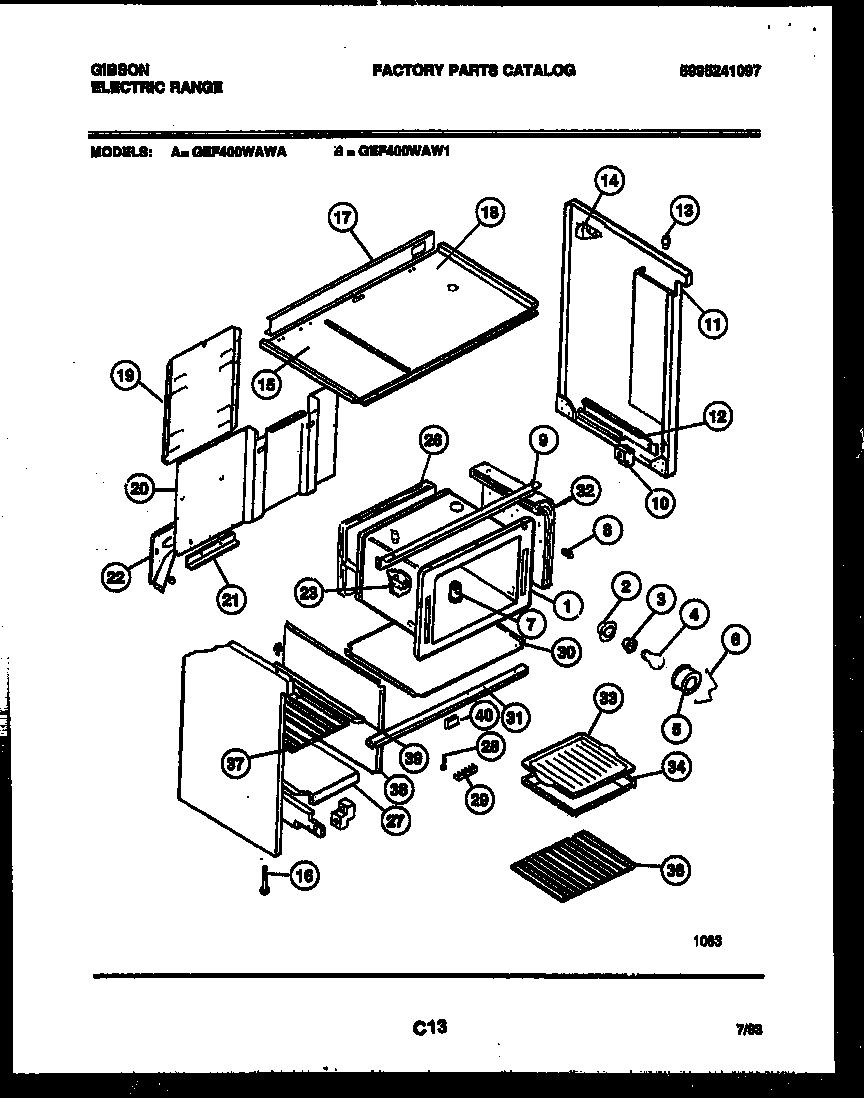

GEF400WAWA 06 – BODY PARTS

Products

Position	Product
*63823	WCI 3934058
*63824	WCI 211947-10/0
1	OVEN ASSEMBLY-RIGHT
2	WCI 3051511
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	RETAINER-LENS
7	TUBE - OVEN VENT
8	WCI 5301314211
9	WCI 5303294354
10	GUIDE-DRAWER FRNT (2)
11	SIDE PANEL RH-ALMD
11A	SIDE PANEL, LH WHITE
11	SIDE PANEL, RH WHITE
11A	SIDE PANEL LH-ALMD
12A	RAIL, DRAWER LH
12	WCI 5308015746
13	BUMPER, COOKTOP (4)
14	GUSSET - BKGRD (2)
15	ROD-TOP SUPPORT
16	SCREW-LEVELING (4)
17	WCI 5303209319
18	WCI 5303294355
19	WIRE, COVER
20	WCI 3204827
21	WCI 5301307085
22	WCI 3204822
22A	WCI 3204823
23	BRACKET-THERMO BULB (2)
26	WCI 5303300144
27	BOTTOM COMPLETE
28	PLATE=GROUND STRAP
29	5304409888 Frigidaire Oven Terminal Block with Hardware
30	WCI 3206275
31	Channel,oven support ,front
32	INSULATION - OVEN WRAP
33	BROILER GRILL
34	BROILER PAN
36	5304531722 Frigidaire Rack
37	RACK - COMPLETE
38	PARTITION - CENTER
39	RAIL - COMPL RACK (2)
40	WCI 3204318
