GEH50DEEDSCA CONTROL PANEL & SHROUD

GEH50DEEDSCA CONTROL PANEL & SHROUD

Written by

in

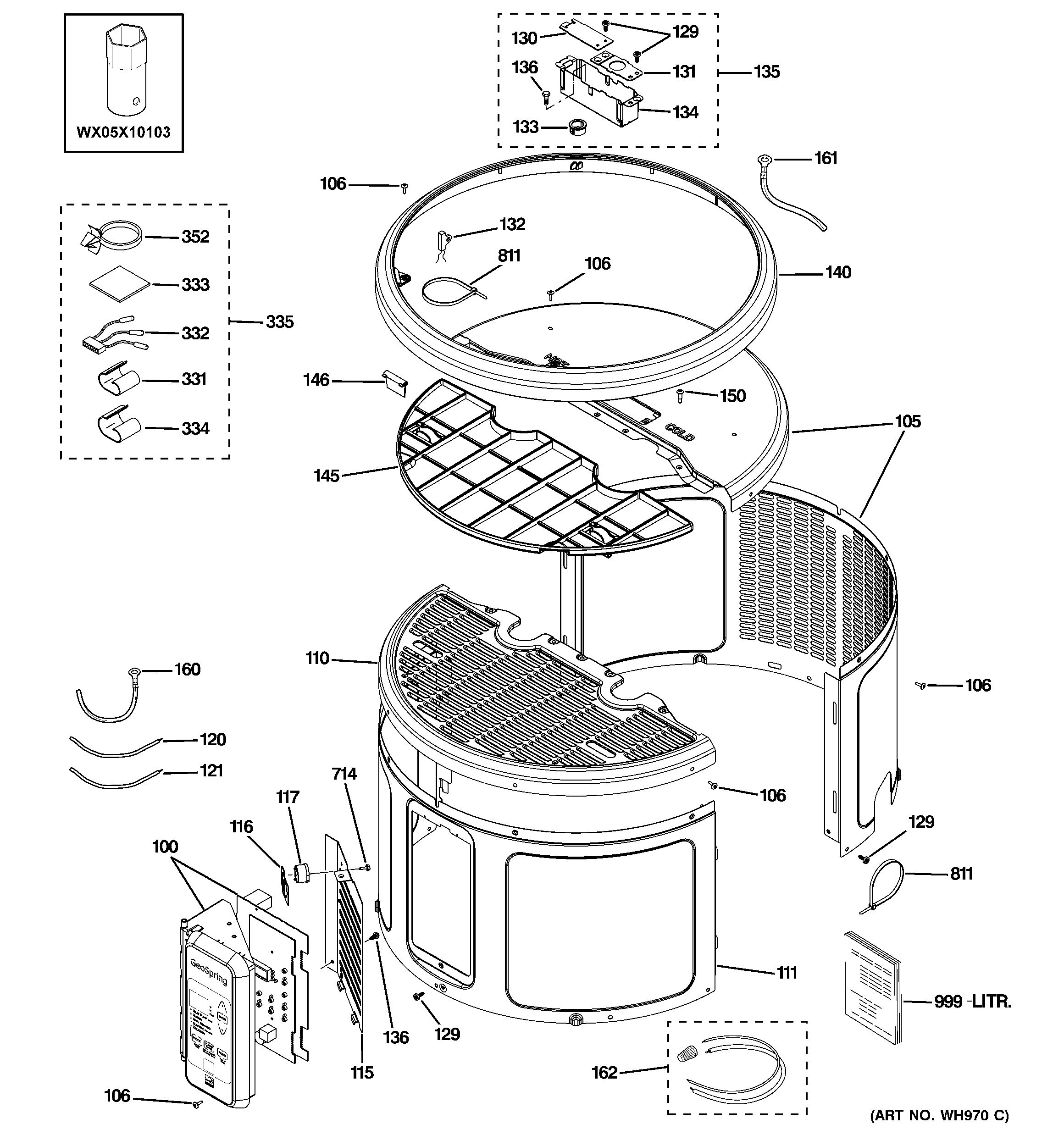

GEH50DEEDSCA CONTROL PANEL & SHROUD

Products

PositionProduct
100GEN WS55X10023
100GEN WS55X10022
105WS31X10060 GE Shroud Rear Assembly
105REAR SHROUD ASM
106SCR 8-18 B PNT7/16 S RED
110CVR SHROUD FRONT ASM RED
110CVR SHROUD FRONT, GRAY
111GEN WS31X10065
111GEN WS31X10062
115ENCLOSURE
116BRKT OVERLOAD
117GEN WS08X10017
120WIRE (E-D) YELLOW
121WIRE (E-E) BLUE
129SCR 10-32 GX PNT20 1/2 S
130COVER ACCESS J- BOX
131COVER FIXED J- BOX
132SENSOR T5
133GROMMET DC (J-BOX)
134CAVITY JUNCTION BOX
135JUNCTION BOX ASM
136WS02X10087 GE Screws 10-32 GX HXW 7/16 S
140TRIM RING
145FILTER AIR
146COVER AIR FILTER SNAP
150SCR 8-18 B PNT 3/4 S RED
160GROUND WIRE TO ENCLOSURE
161GROUND WIRE TO J-BOX
162WIRE L1-L2 REPAIR KIT
331WS02X10078 GE Sensor Clip (T3A/T4)
332WS17X10011 GE Water Heater Temperature Sensor Thermostat Kit
333WS03X10075 GE Thermal Sensor Mastic
334WS02X10079 GE T3B Sensor Clip
335SENSOR ASM
352WH01X10704 GE Wire Tie
714WD02X10160 GE Screw
811WR02X11607 GE Refrigerator Wire Tie
999GEN 31-75008
999GEN 49-50281
