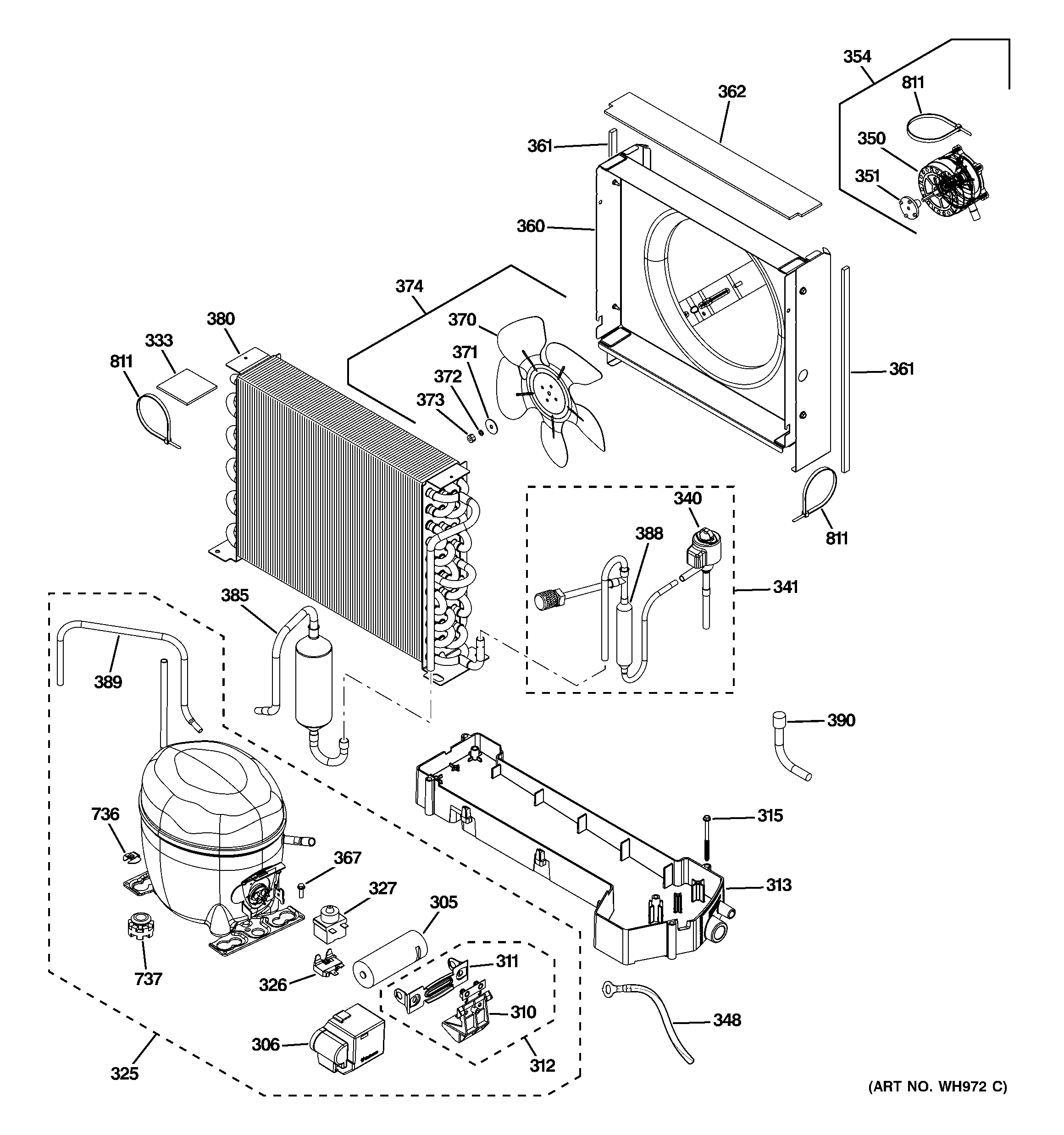

GEH50DEEDSCA UNIT PARTS

Products

Position	Product
305	GEN WS19X10035
306	COVER ELECTRIC COMP
310	GEN WS21X10055
311	GEN WS01X10052
312	GEN WS28X10077
313	GEN WS28X10073
315	SCR 10-32 HXW 2 1/2 S
325	GEN WS87X10003
326	GEN WS08X10016
327	GEN WS07X10033
333	WS03X10075 GE Thermal Sensor Mastic
340	EEV COIL
341	EEV VALVE ASM KIT
348	WIRE (G-B) GRD COMPRESSO
350	MOTOR FAN
351	FLANGE FAN
354	FAN MOTOR ASM
360	FAN SHROUD ASM
361	WS16X10003 GE Foam Barrier Seal
362	SEAL FOAM EVAP
367	SCR 8-32 GX IHX 3/8 SCA
370	BLADE FAN
371	WS02X10080 GE Washer Spring
372	WS02X10081 GE Washer
373	WS02X10082 GE Fan Blade to Motor Nut
374	FAN BLADE ASM
380	GEN WS85X10003
385	ACCUMULATOR ASM
388	FILTER DRYER ASM
389	GEN WS07X10034
390	WS07X10035 GE Comp Process Tube Assembly
736	GEN WR02X8203
737	WR02X22869 GE Refrigerator Grommet
811	WR02X11607 GE Refrigerator Wire Tie
