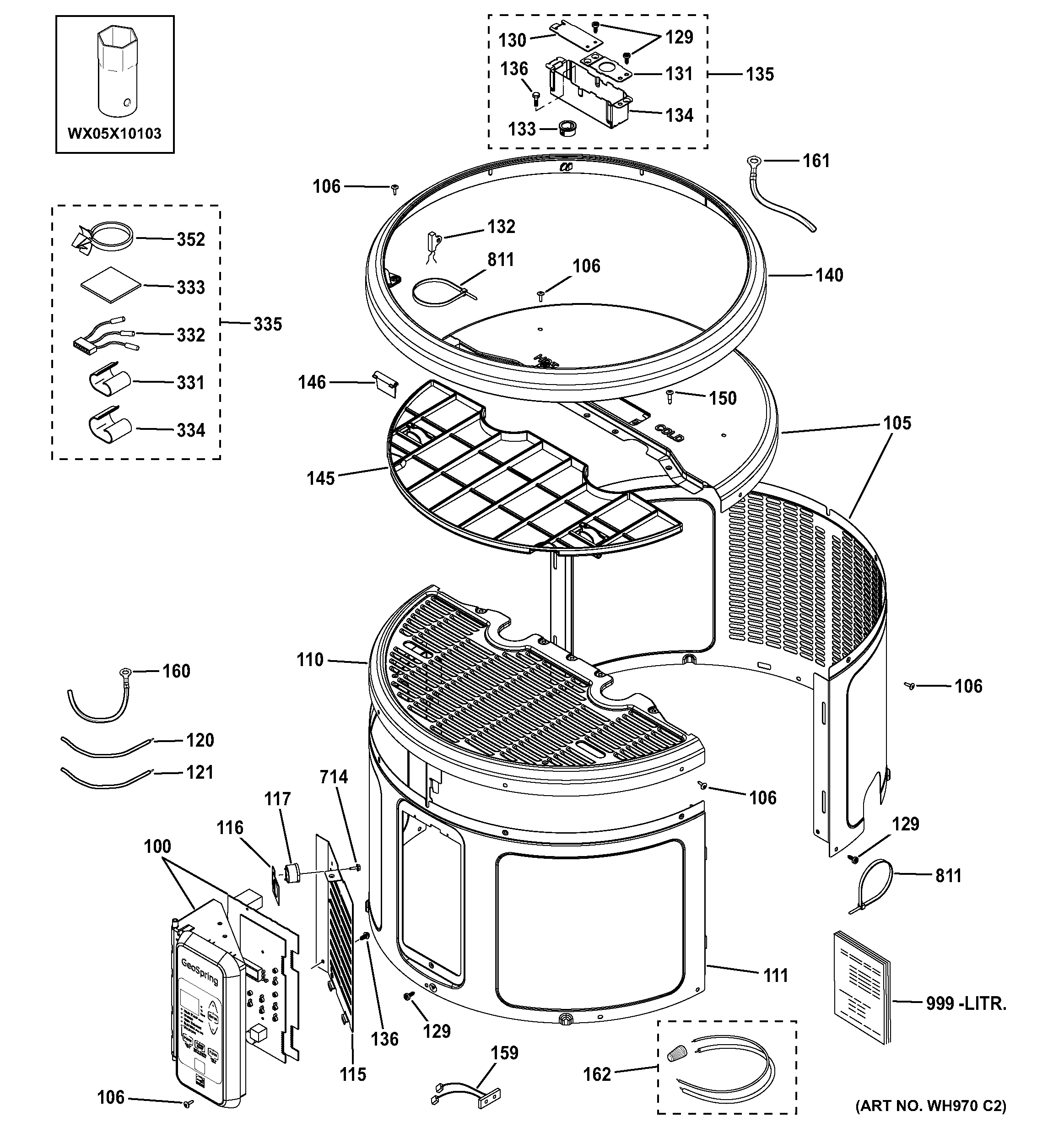

GEH50DEEDSCB CONTROL PANEL & SHROUDadmin2025-04-26T08:41:42+00:00GEH50DEEDSCB CONTROL PANEL & SHROUD ProductsPositionProduct100GEN WS55X10023105REAR SHROUD ASM106SCR 8-18 B PNT7/16 S RED110CVR SHROUD FRONT, GRAY111GEN WS31X10065115ENCLOSURE116BRKT OVERLOAD117OVERLOAD COMP120WIRE (E-D) YELLOW121WIRE (E-E) BLUE129SCR 10-32 GX PNT20 1/2 S130COVER ACCESS J- BOX131COVER FIXED J- BOX132SENSOR T5133GROMMET DC (J-BOX)134CAVITY JUNCTION BOX135JUNCTION BOX ASM136WS02X10087 GE Screws 10-32 GX HXW 7/16 S140TRIM RING145FILTER AIR146COVER AIR FILTER SNAP150SCR 8-18 B PNT 3/4 S RED159T2 WIRE REPAIR KIT160GROUND WIRE TO ENCLOSURE161GROUND WIRE TO J-BOX162WIRE L1-L2 REPAIR KIT331WS02X10078 GE Sensor Clip (T3A/T4)332WS17X10011 GE Water Heater Temperature Sensor Thermostat Kit333WS03X10075 GE Thermal Sensor Mastic334WS02X10079 GE T3B Sensor Clip352WH01X10704 GE Wire Tie811WR02X11607 GE Refrigerator Wire Tie999GEN 31-75030999GEN 49-50281
