GEH50DEEDSCB UNIT PARTS

GEH50DEEDSCB UNIT PARTS

Written by

in

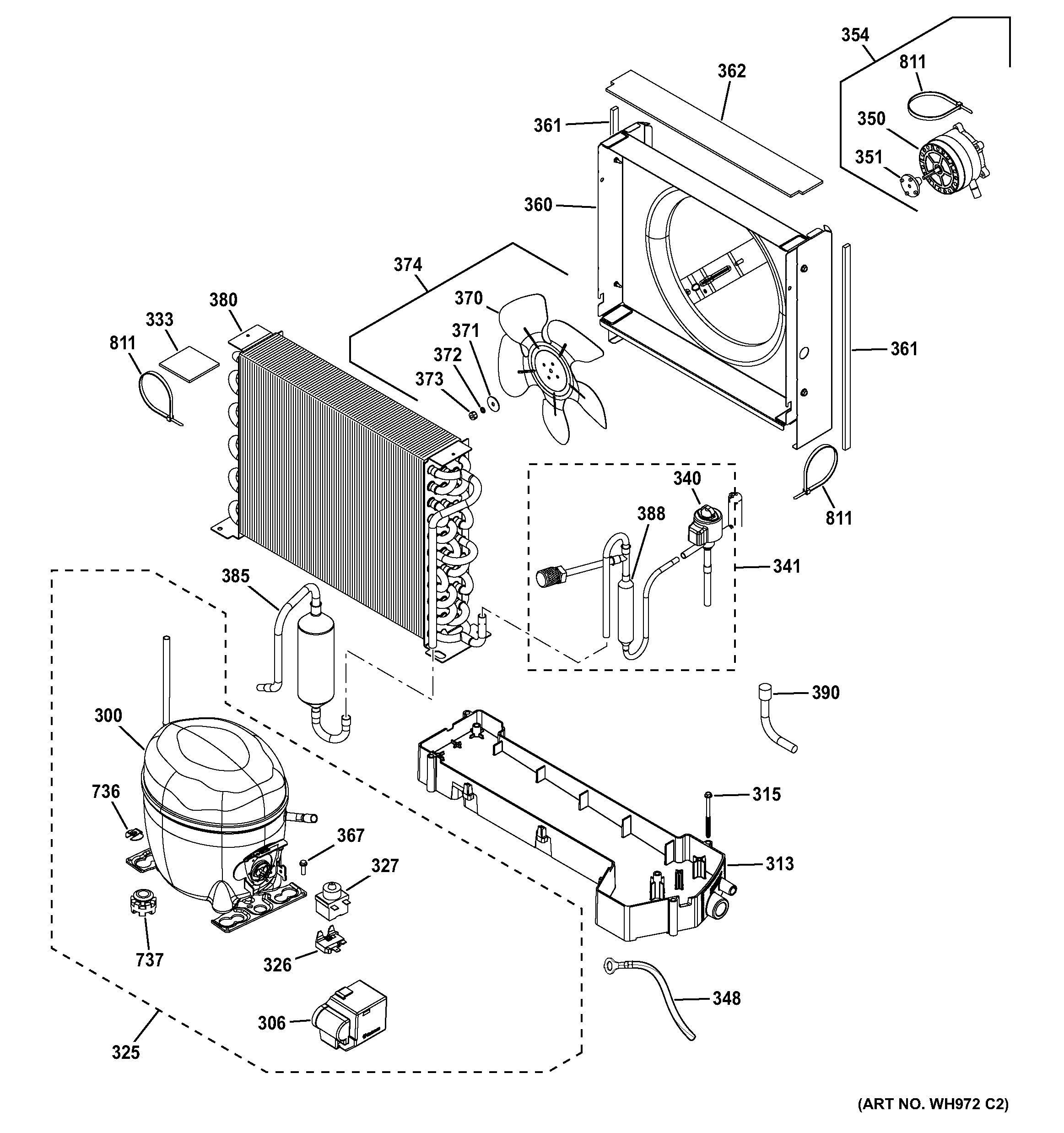

GEH50DEEDSCB UNIT PARTS

Products

PositionProduct
300COMPRESSOR
306COVER ELECTRIC COMP
313CONDENSATE DRAIN PAN
315SCR 10-32 HXW 2 1/2 S
325COMPRESSOR KIT
326OVERLOAD
327RELAY START
333WS03X10075 GE Thermal Sensor Mastic
340EEV COIL
341EEV VALVE ASM KIT
348WIRE (G-B) GRD COMPRESSO
350MOTOR FAN
351FLANGE FAN
354FAN MOTOR ASM
360FAN SHROUD ASM
361WS16X10003 GE Foam Barrier Seal
362SEAL FOAM EVAP
367SCR 8-32 GX IHX 3/8 SCA
370BLADE FAN
371WS02X10080 GE Washer Spring
372WS02X10081 GE Washer
373WS02X10082 GE Fan Blade to Motor Nut
374FAN BLADE ASM
380EVAPORATOR KIT
385ACCUMULATOR ASM
388FILTER DRYER ASM
390WS07X10035 GE Comp Process Tube Assembly
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
811WR02X11607 GE Refrigerator Wire Tie
