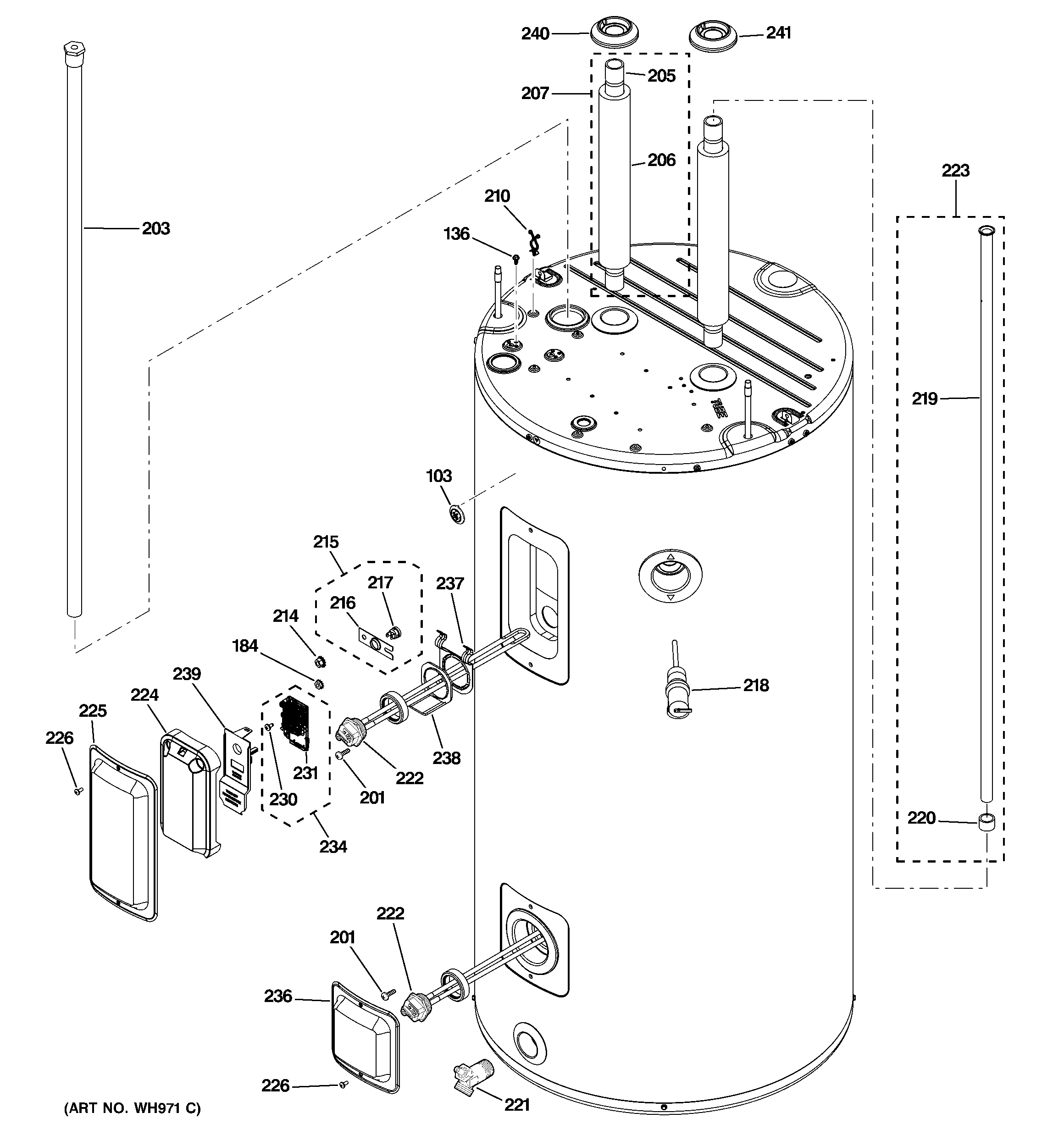

GEH50DEEDSRA BODY PARTS

GEH50DEEDSRA BODY PARTS

Written by

in

GEH50DEEDSRA BODY PARTS

Products

PositionProduct
103GEN WS34X10029
103GEN WS34X10028
136WS02X10087 GE Screws 10-32 GX HXW 7/16 S
184NUT KEPS 10-32 SPECIAL
201SCR 10-32 PNUP 13/32 S
203ROD ANODE
205PIPE EXTENSION TRAP
206WS07X10031 GE Insulation Tube Pipe
207PIPE EXTENTION ASM
210WS02X10073 GE Wire Tie Ball
2141/4-20 HEX NUT – LOCKING
215T2 TANK THERMISTOR ASM
216BRACKET THERMISTOR T2
217TANK THERMISTOR T2
218VALVE, TEMP/PRESSURE REL
219DIPTUBE
220SEAL DIPTUBE
221VALVE DRAIN
222ELEMENT HEATING W GASKET
223DIP TUBE AND SEAL
224COVER ELMNT (UPPER) EPS
225COVER ELMNT METAL U. RED
226SCR T20H TAMPER PROOF
230WS02X10076 GE Screw 10-32 Panel 3/8"
231TCO (THERMAL CUT OUT)
234TCO DLB AND SCREWS
236COVER ELMNT METAL L. RED
237WS03X10074 GE TCO Spring Clip
238GEN WS34X10027
239BARRIER DIELECTRIC
240GROMMET OUTLET, RED
241GROMMET INLET, BLUE
