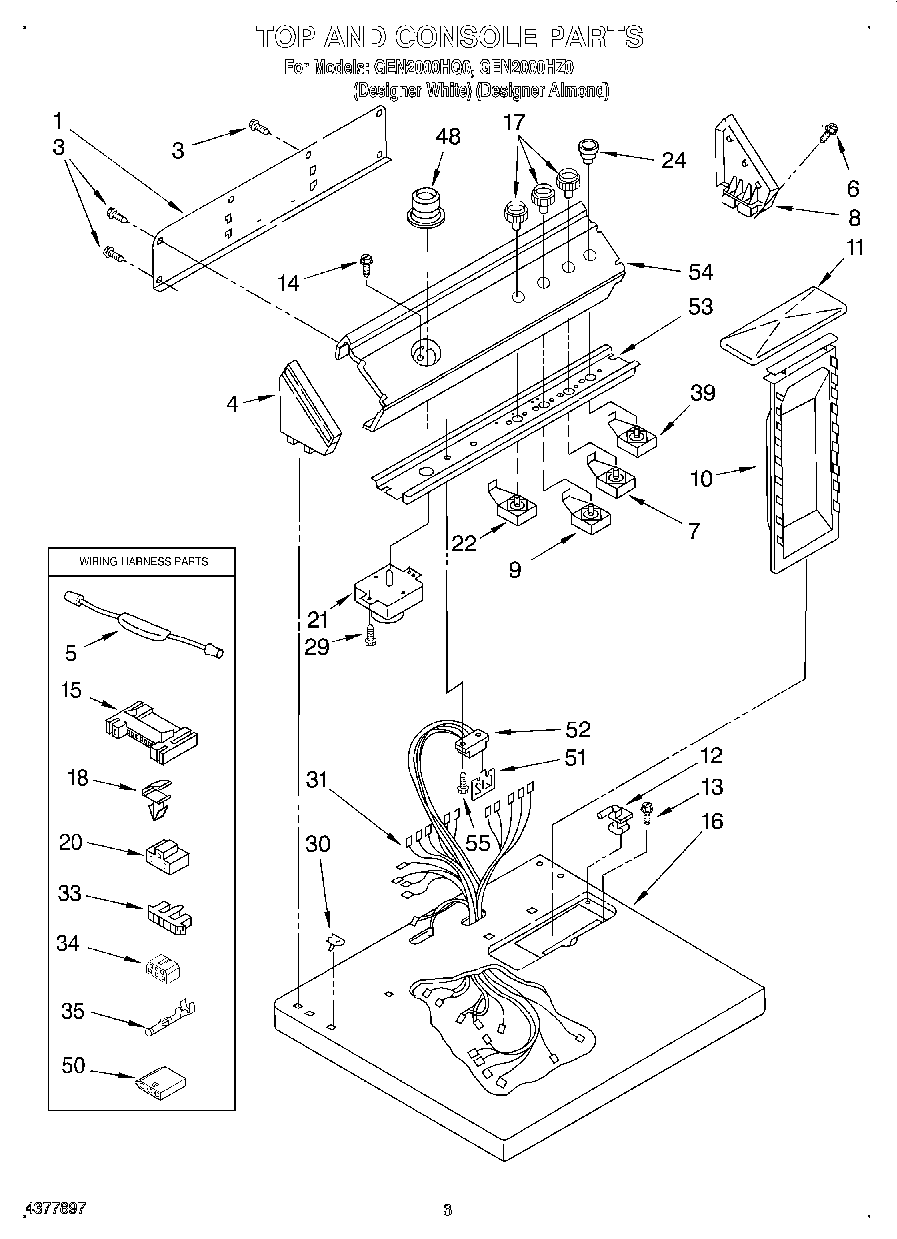

GEN2000HQ0 02 – TOP AND CONSOLE

GEN2000HQ0 02 – TOP AND CONSOLE

Written by

in

GEN2000HQ0 02 – TOP AND CONSOLE

Products

PositionProduct
NIDryer
1Panel, Rear Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
5Resistor Assembly
6WP388326 Whirlpool Screw
7WP3398093 Whirlpool Buzzer Adjuster
8Cap, End (R.H.)
8Cap, End (R.H.) (Almond)
93405154 Whirlpool Primary Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Almond)
16Top (White)
173957797 Whirlpool Knob
17WP3957796 Whirlpool Knob
18WP3394427 Whirlpool Clip
203401144 Whirlpool Connector
21WP3406725 Whirlpool Timer
22Switch, Temperature
24WP3957800 Whirlpool Knob
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398094 Whirlpool Push To Start Switch
48Timer Knob Assembly (Almond)
48WP3957746 Whirlpool Knob Assembly
503936144 Whirlpool Connector
51Control, Electronic
523391885 Whirlpool Connector
53Bracket, Control
54Panel, Control (Almond)
54Panel, Control (White)
55350956 Whirlpool Spray Assembly
55350930 Whirlpool White Spray Paint
5572017 Whirlpool Appliance Touch-Up Paint White
55Almond (Uncut)
55WP72107 Whirlpool Touchup
55350938 Whirlpool Spray Gun
55799344 Whirlpool Refrigerator Paint
55SCREW
